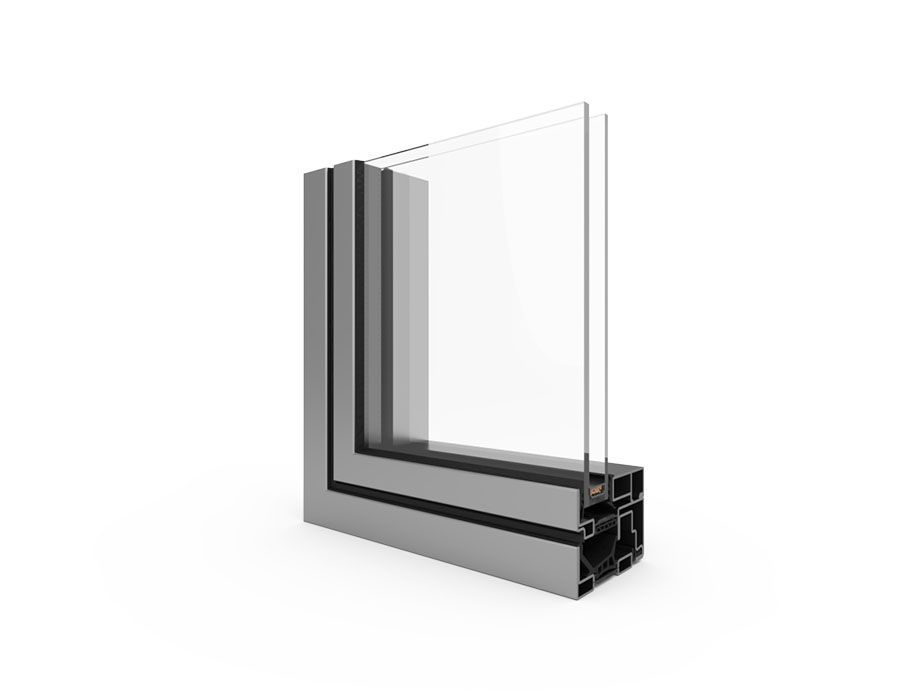

STEEL TILT and TURN WINDOW UNICO

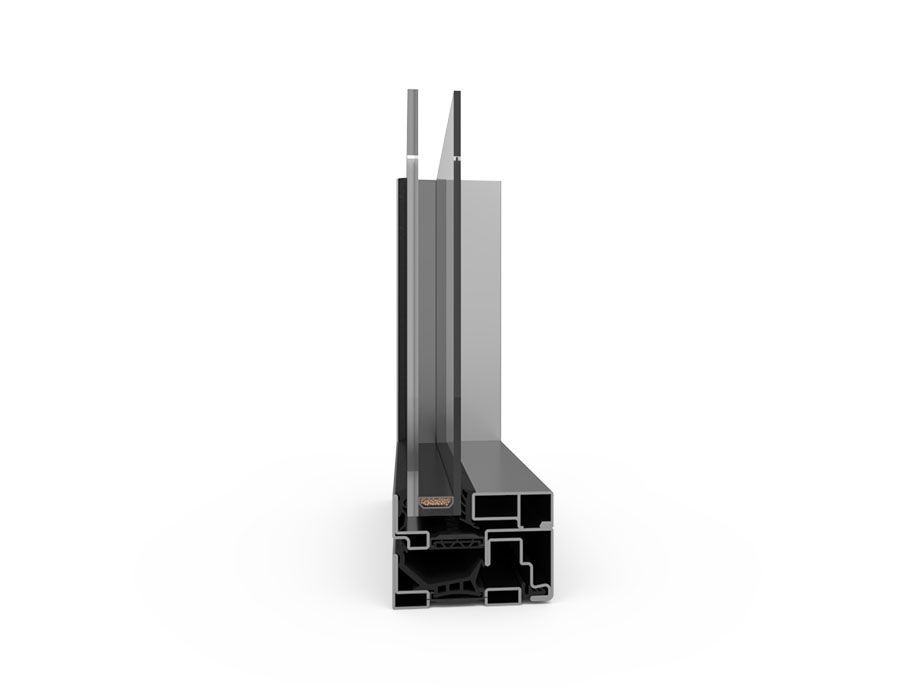

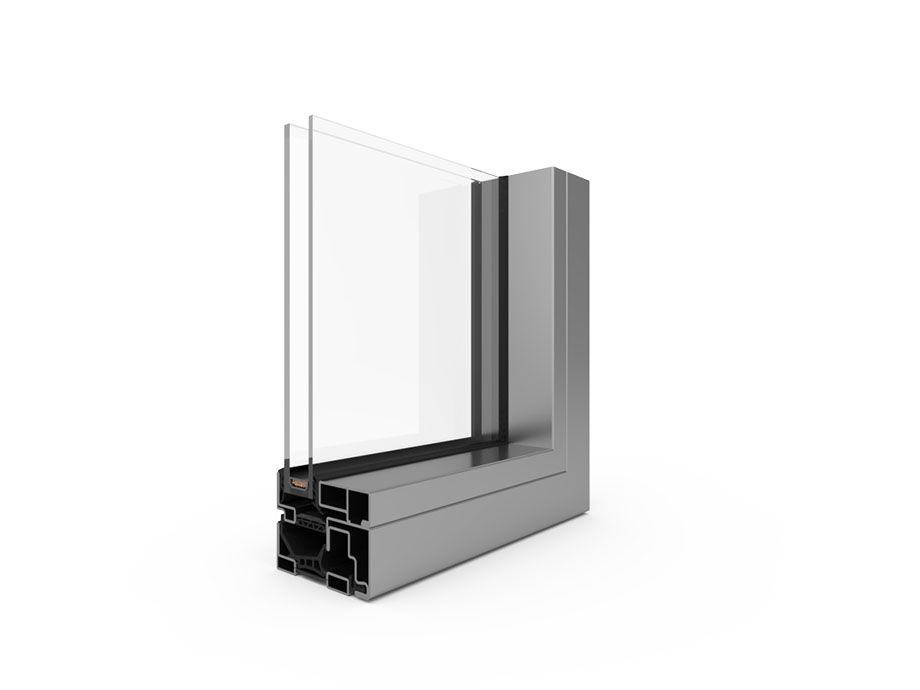

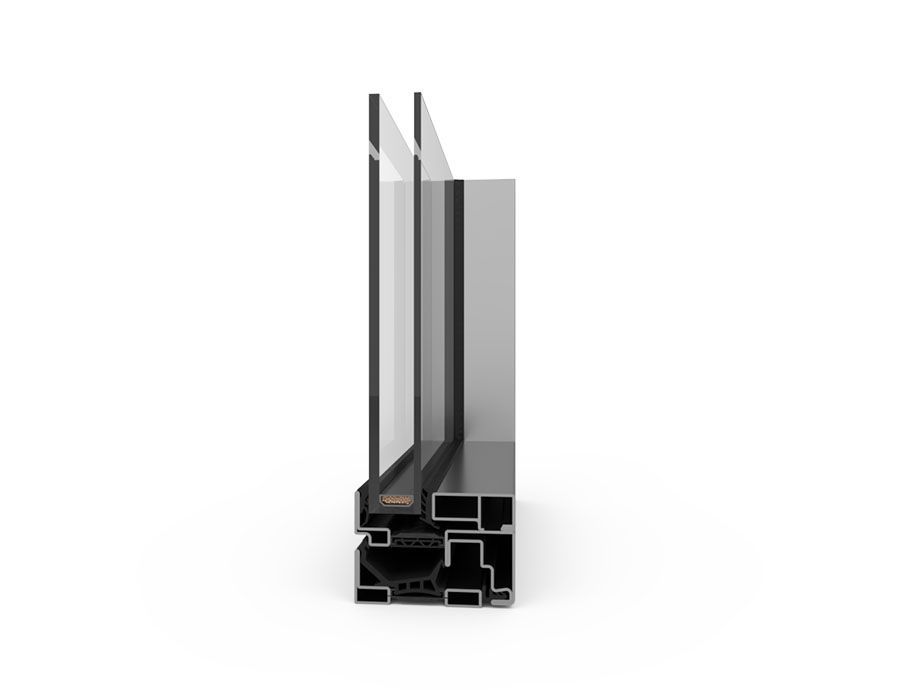

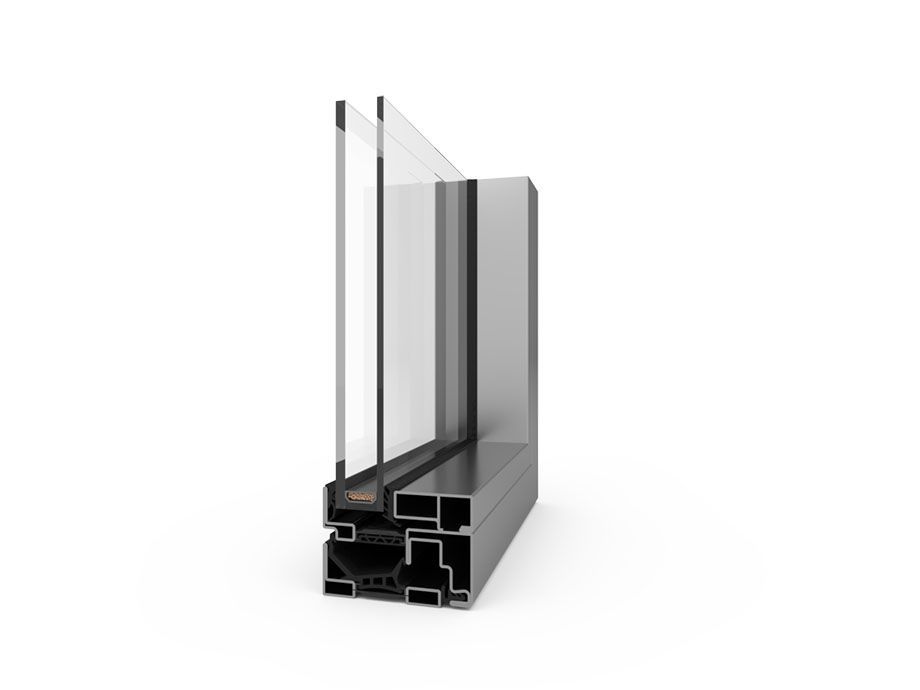

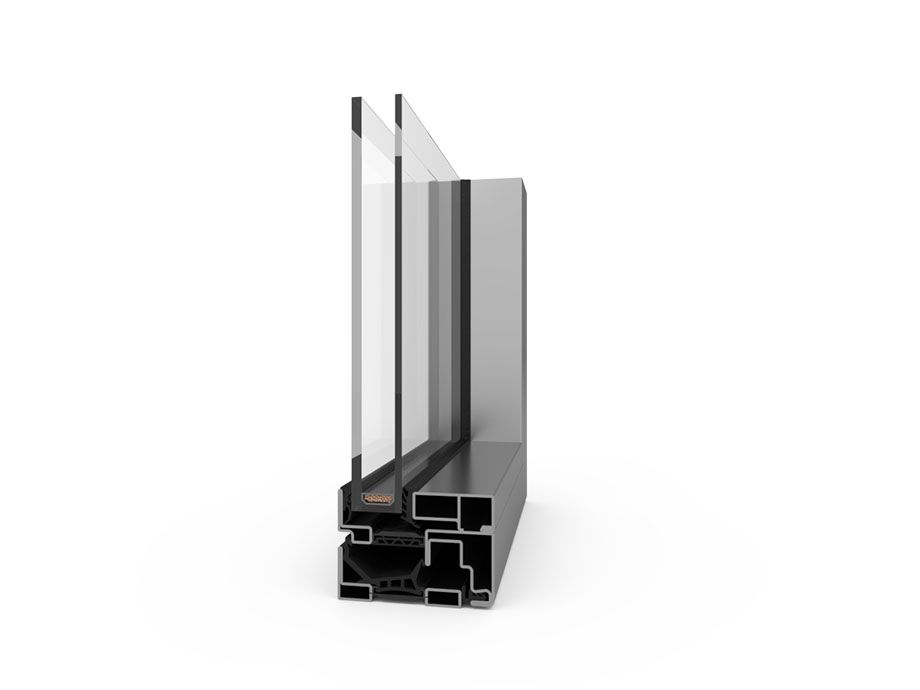

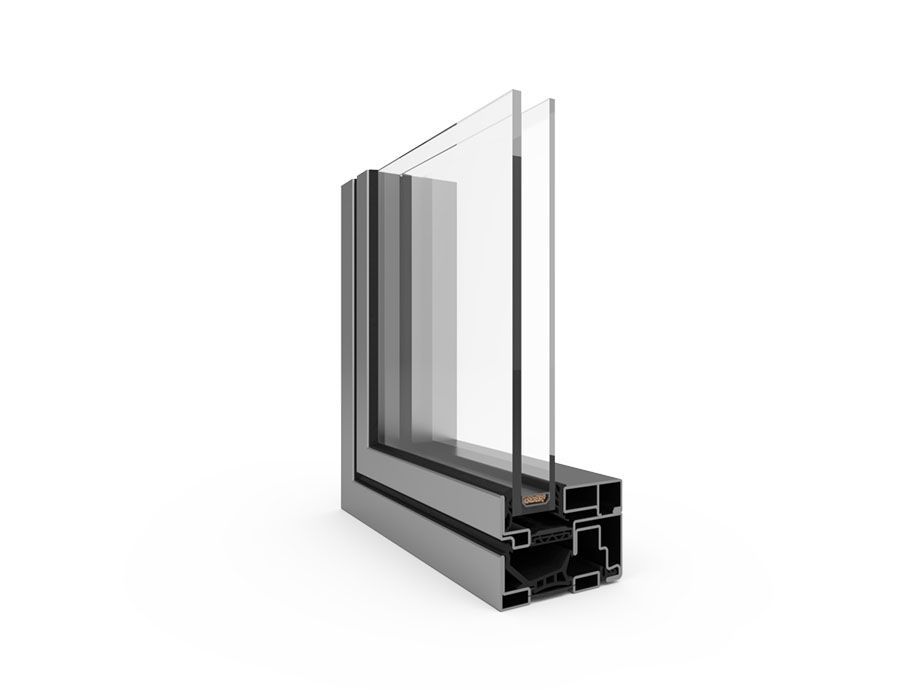

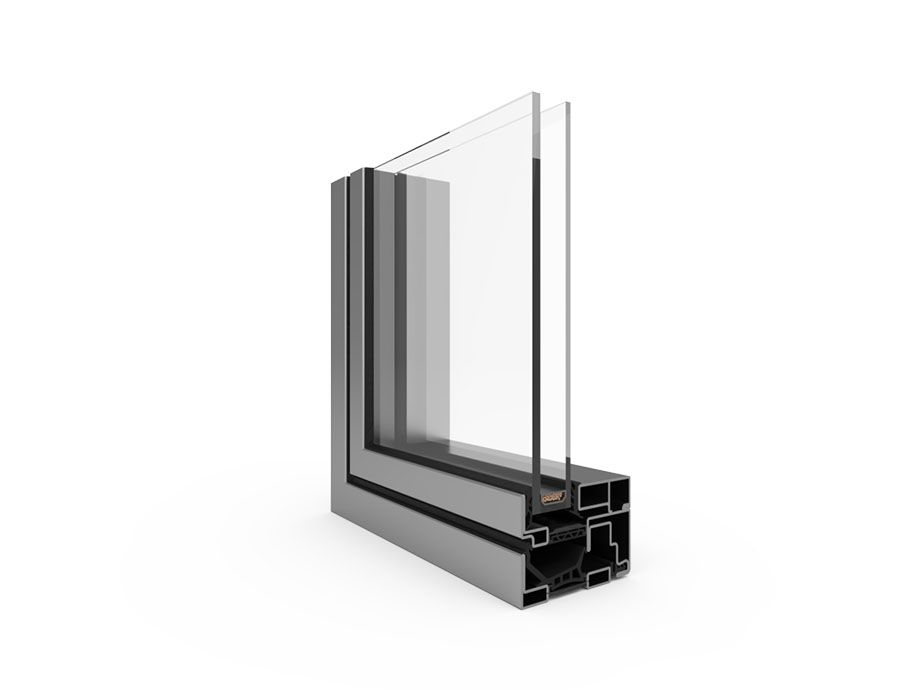

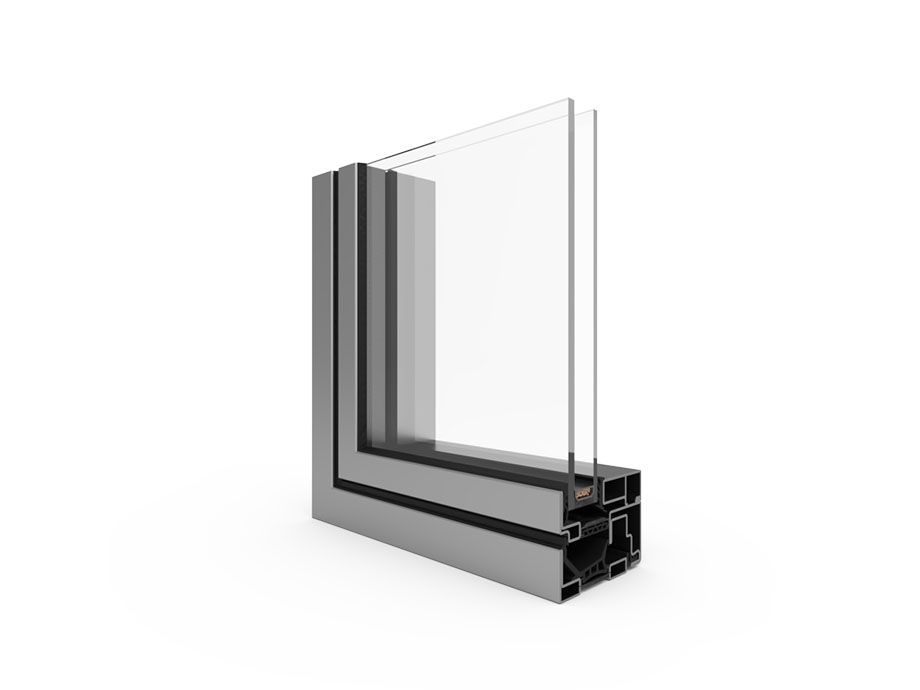

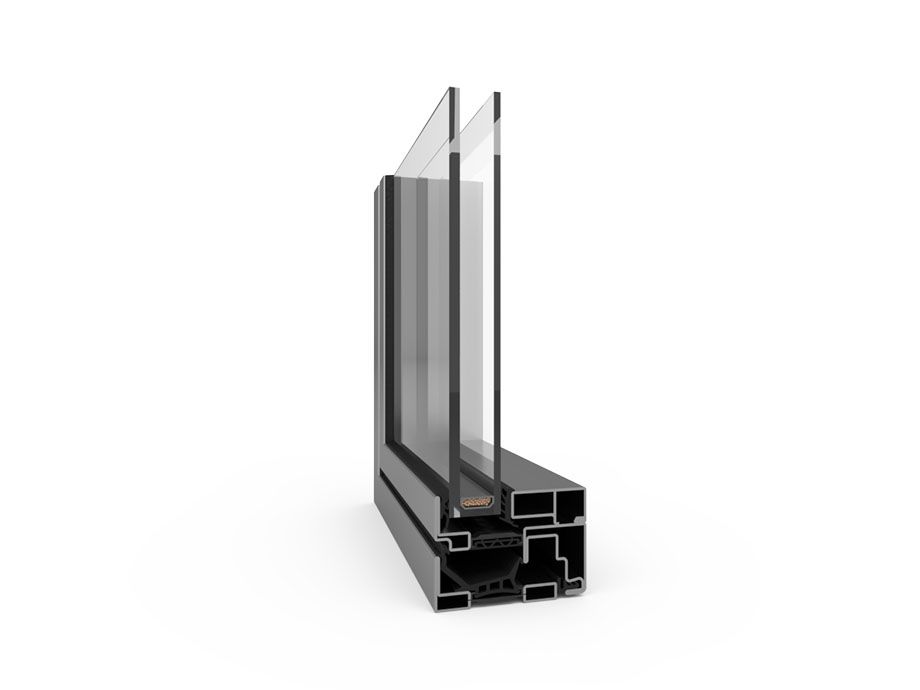

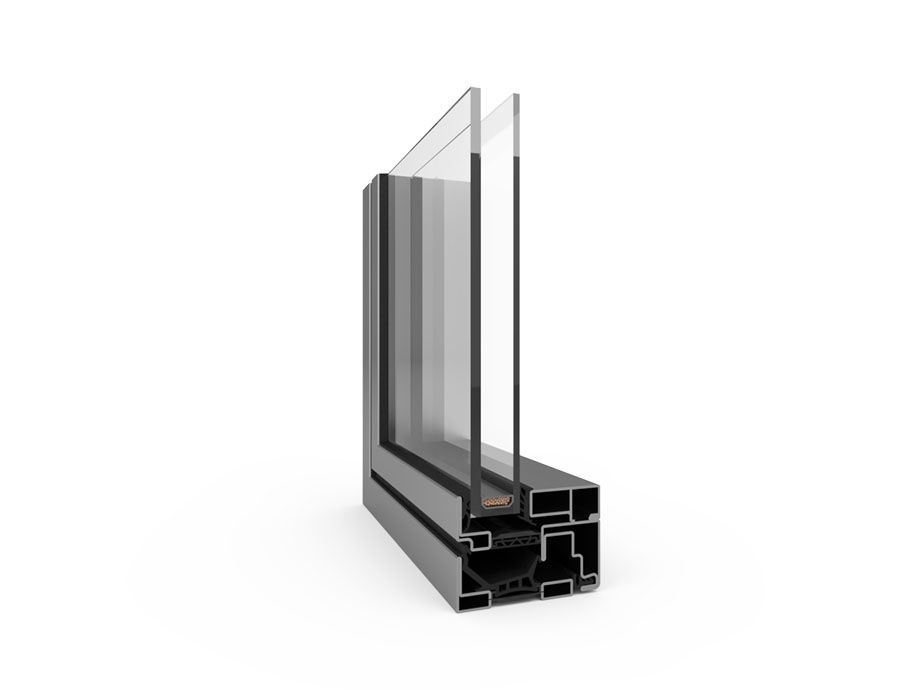

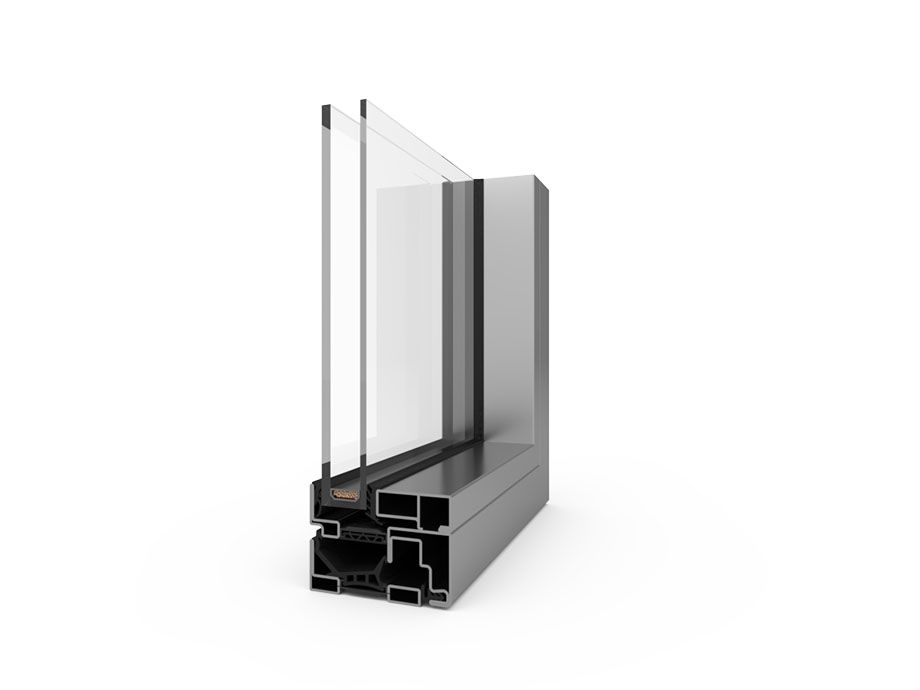

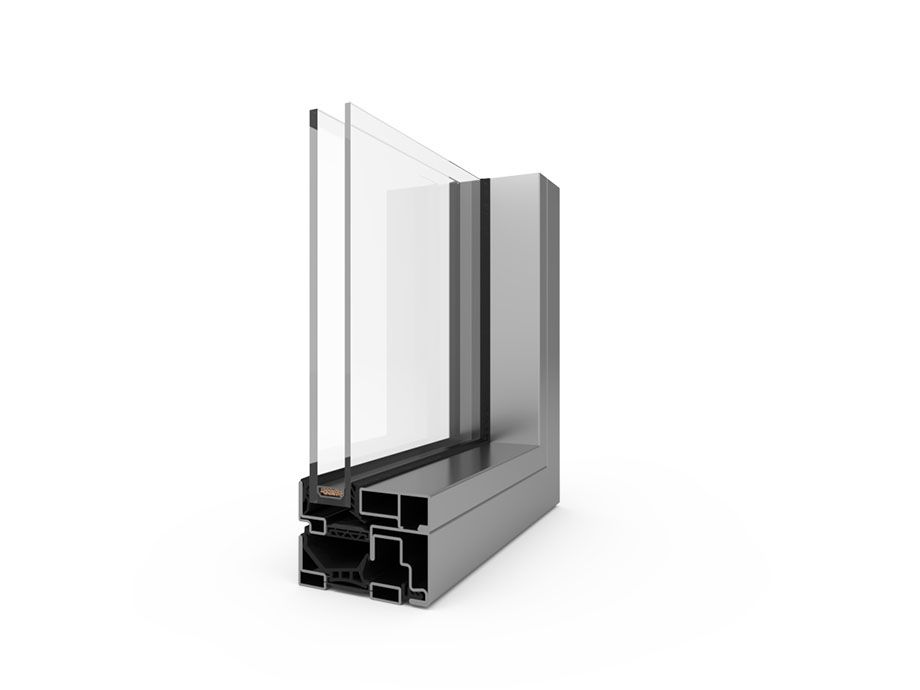

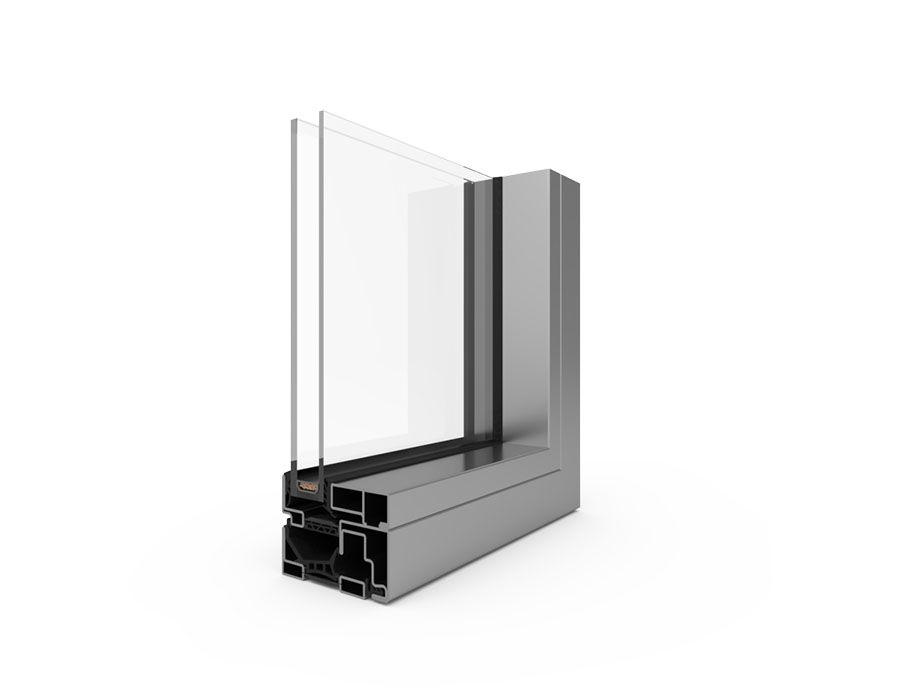

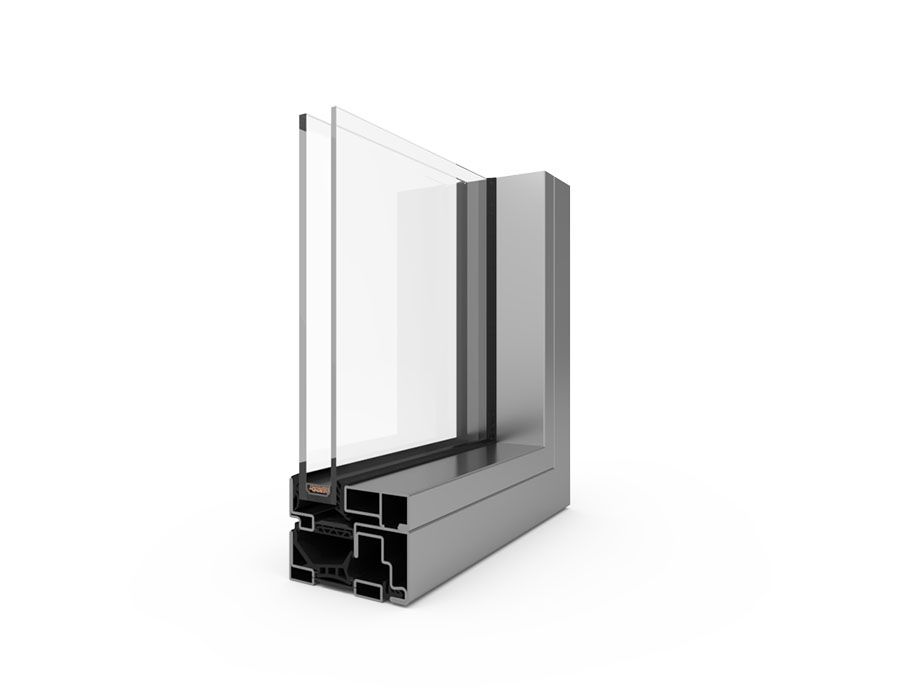

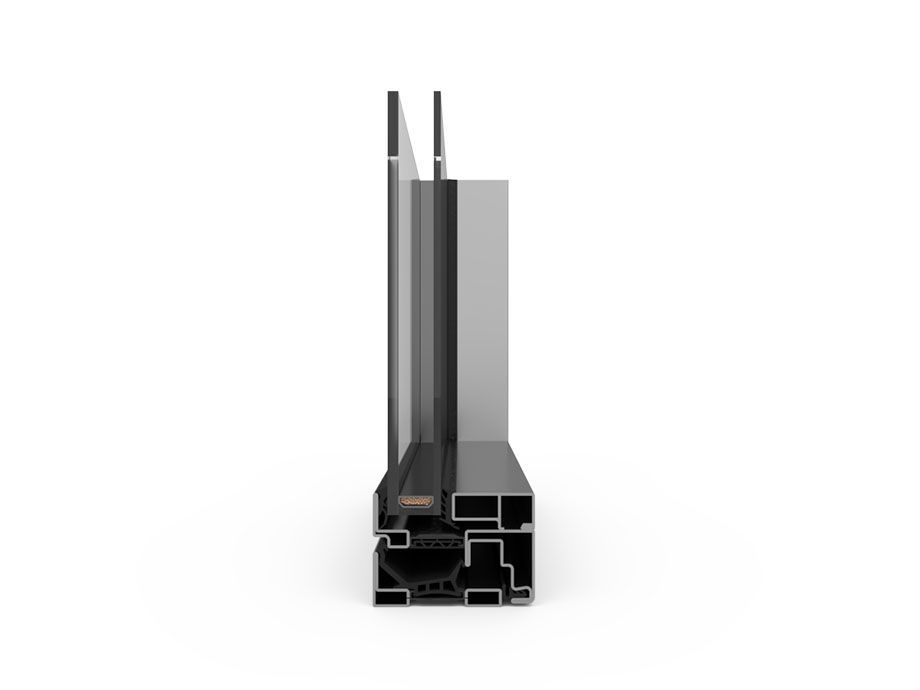

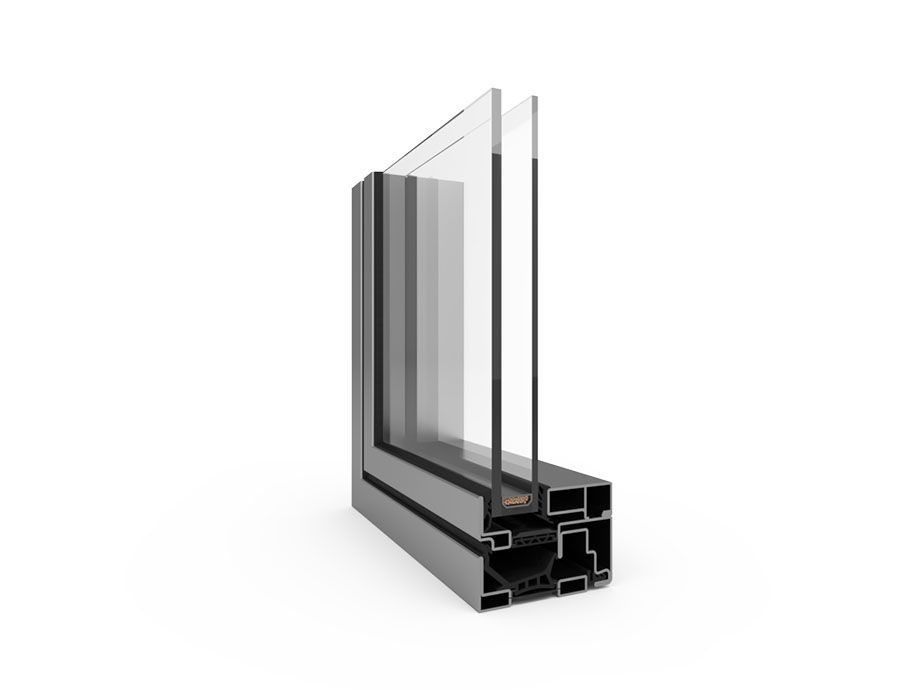

The UNICO window system with a thermal break is ideal for buildings that require higher energy expenditure. With its use, we will make not only windows, but also doors, display cases and all types of spatial structures. The unique profile design made of 100% steel is ideally suited for renovating old or historic buildings and for modern glass constructions.
The windows are made of galvanized steel. The welded joints have been ground and polished which increases their aesthetic value. The system uses hidden fittings that do not disturb their appearance. The profiles can be powder coated in any color from the RAL palette.
The thermal parameters of to two-chamber profiles with a stainless steel thermal break which additionally stabilizes the structure. The tightness of the windows is guaranteed by the use of age-resistant, two-component EDPM synthetic rubber gaskets.
Here are some key advantages you can enjoy:
- installation depth 70mm
- glazing with packages up to 60mm
- tilt and turn inward opening window
- galvanized steel profiles
- stainless steel thermal break
- powder coating in any color from the RAL palette
Uw 1.02
Uw for Ug = 0.5
(the Ultimate frame)*
3
Gaskets
3
Chambers
GLASS OPTIONS
Double Glazing
Single-chamber construction of insulated glass package with thermal insulation and thermal transmittance in a range of:
1,0 ≤ Ug ≤ 2,9 W/(m2 * K)
Triple Glazing
Dual-chamber construction of insulated glass package with thermal insulation and thermal transmittance in a range of:
0,4 ≤ Ug ≤ 0,9 W/(m2 * K)
Quadruple Glazing
Triple-chamber construction of insulated glass package with thermal insulation and thermal transmittance in a range of:
Ug = 0.7-0.3 W/(m2 * K)
AVAILABLE COLORS
Aluminium colour options
Aluminium outer shell are available in a multitude of colour options through a painting technique called Powder Coating, which provides a long lasting attractive finish.
