DRILLED GLASS GLAZING

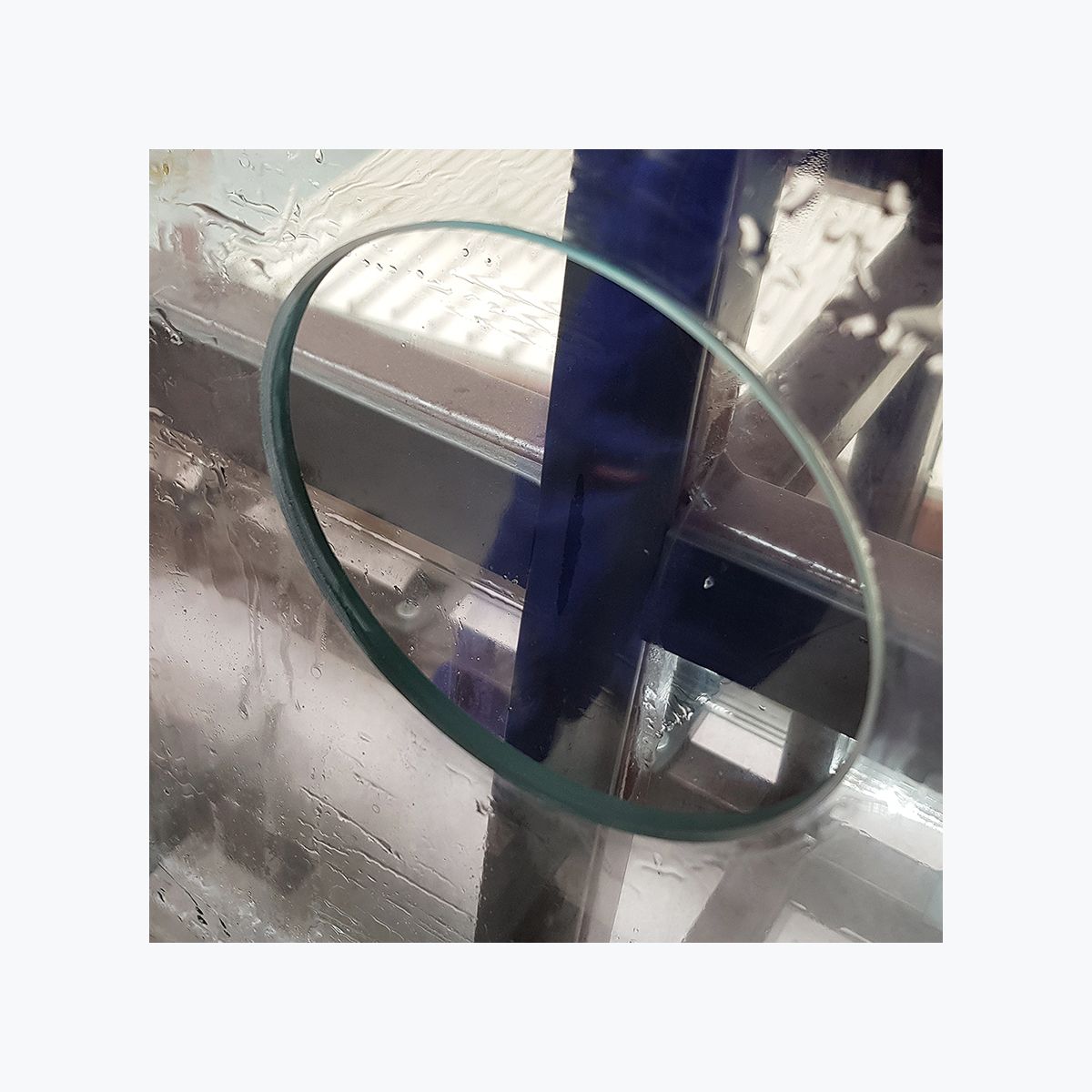

- holes are most commonly used for ventilation grilles or as doors, i.e., for a pet.
We make holes in single and insulated glass. These holes are most commonly used for ventilation grilles or as doors, i.e., for a pet.

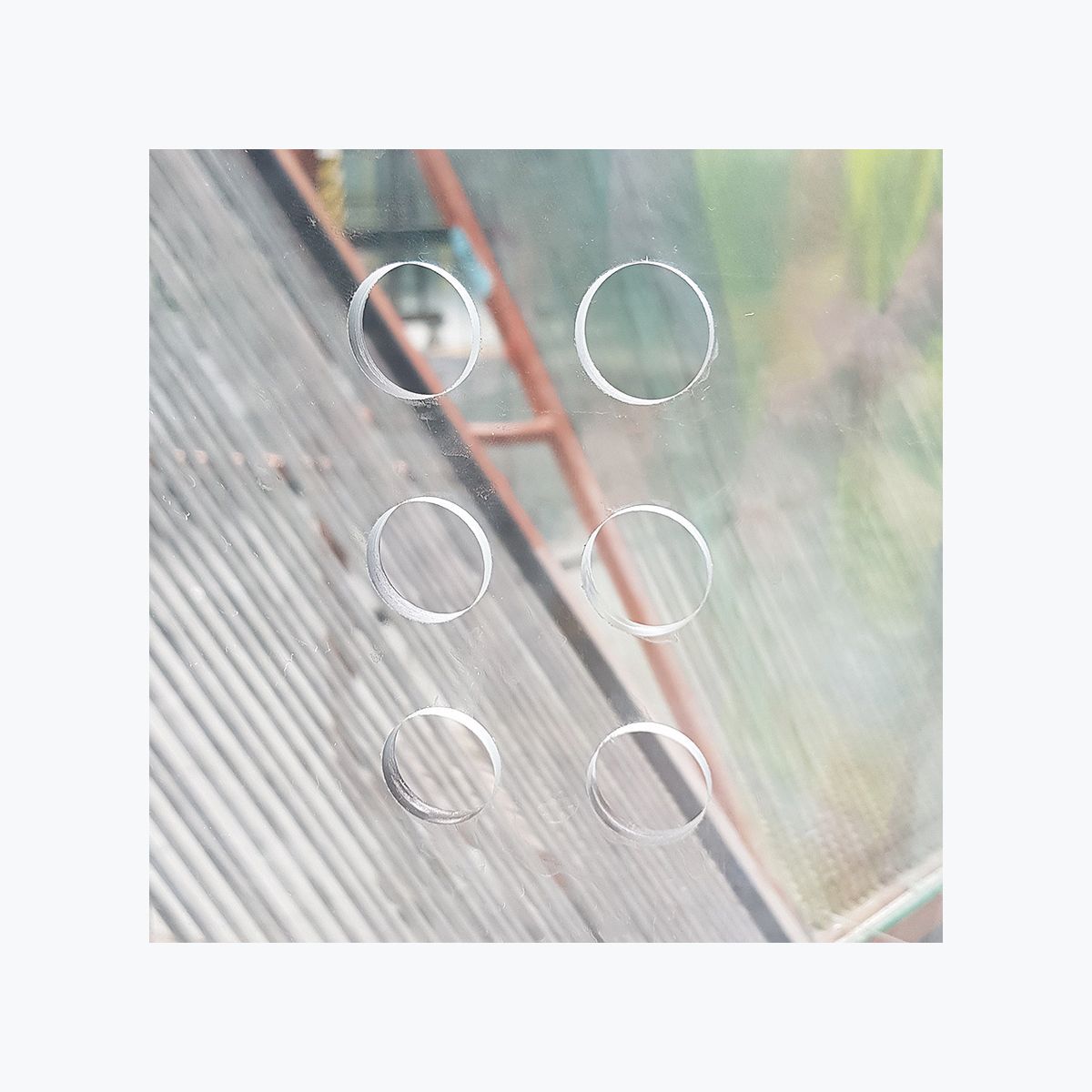

Drills for single glass:
- Drilling holes between 4-70mm
- CNC holes over 70mm

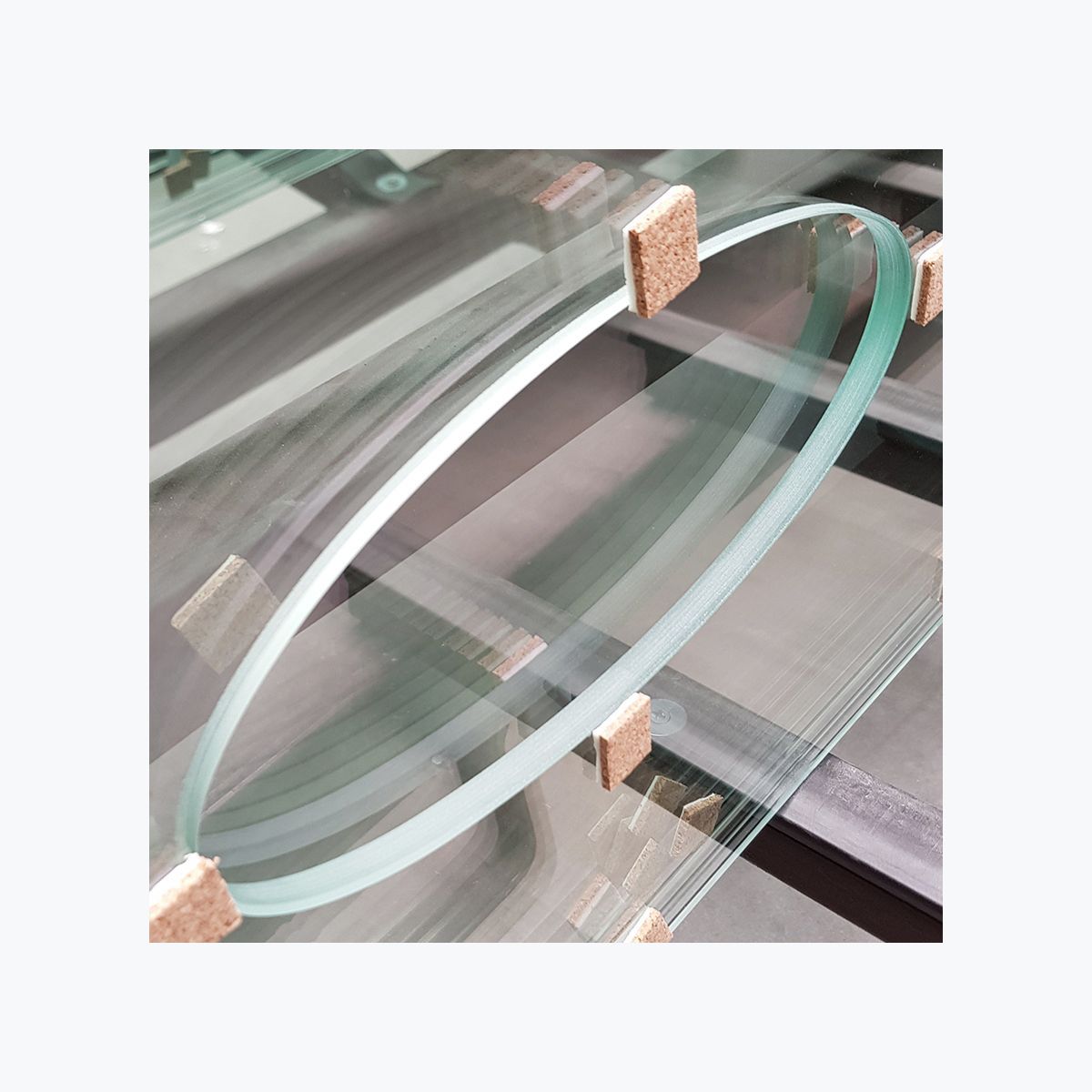

For glazing units we make only CNC drills:
- Minimal diameter Ø90 to Ø200 - aluminum frame will be squared and sealed to the edge of the drill
- Minimal diameter Ø200 to Ø500 - the frame will be round and sealed to the edge of the drill

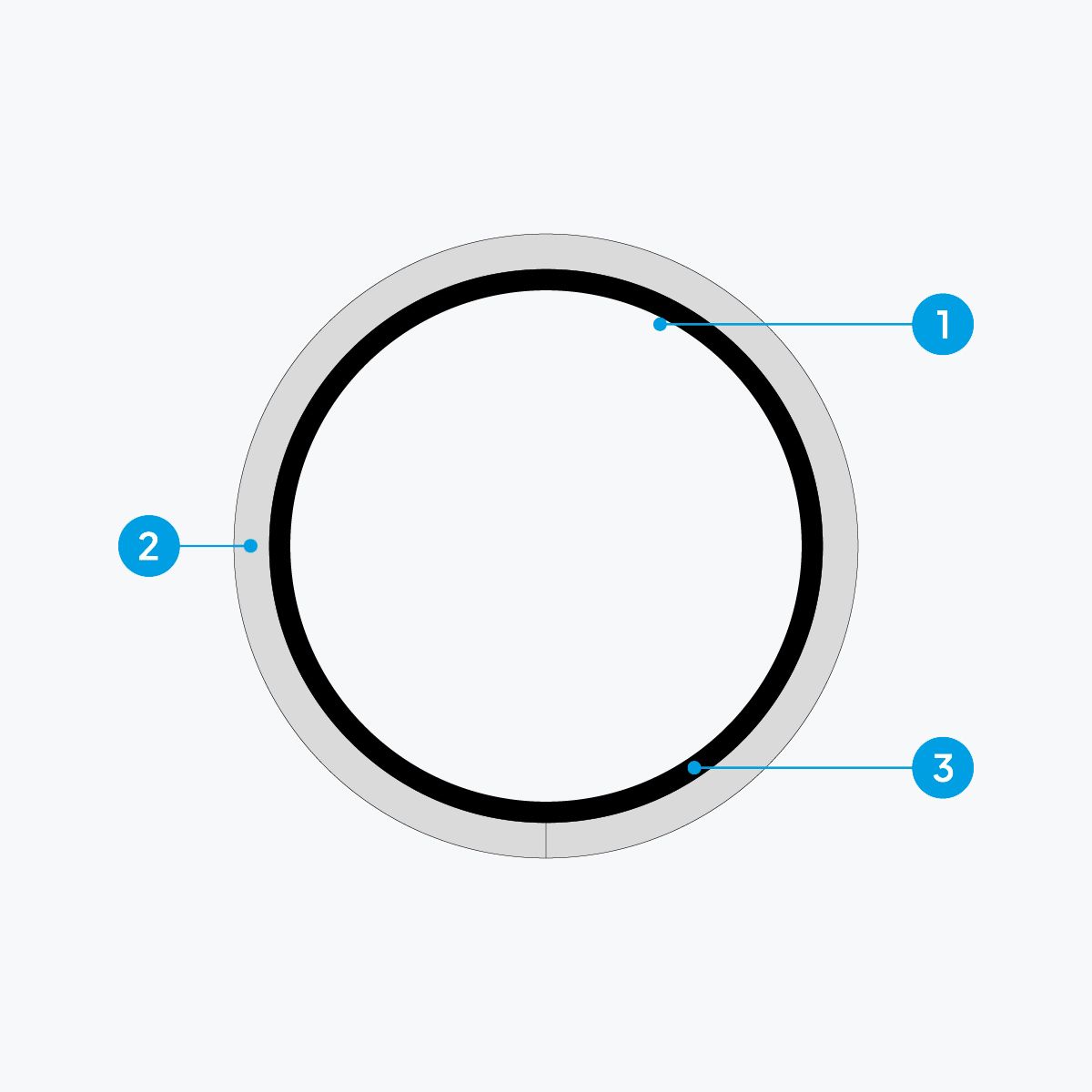

Round frame
1. Hole in the glass
2. Frame
3. Sealant
Recommendations:
✓ Aluminum and steel frame
• Minimal hole diameter Ø200
• Maximal hole diameter Ø500
✓ SWS (SWISSPACER) frame
• Minimal hole diameter Ø300
• Maximal hole diameter Ø500
• Model connectors
• Maximal frame thickness 20mm

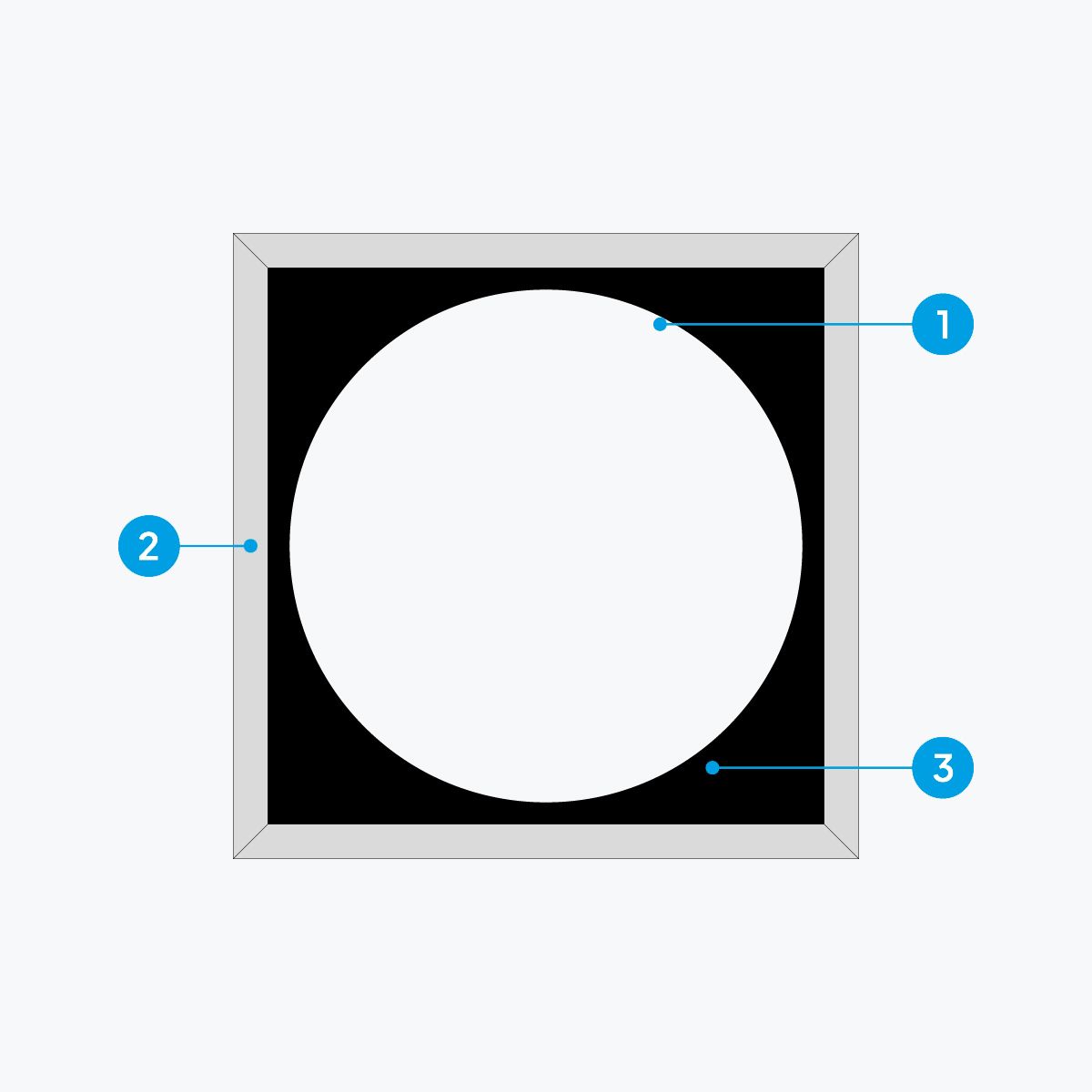

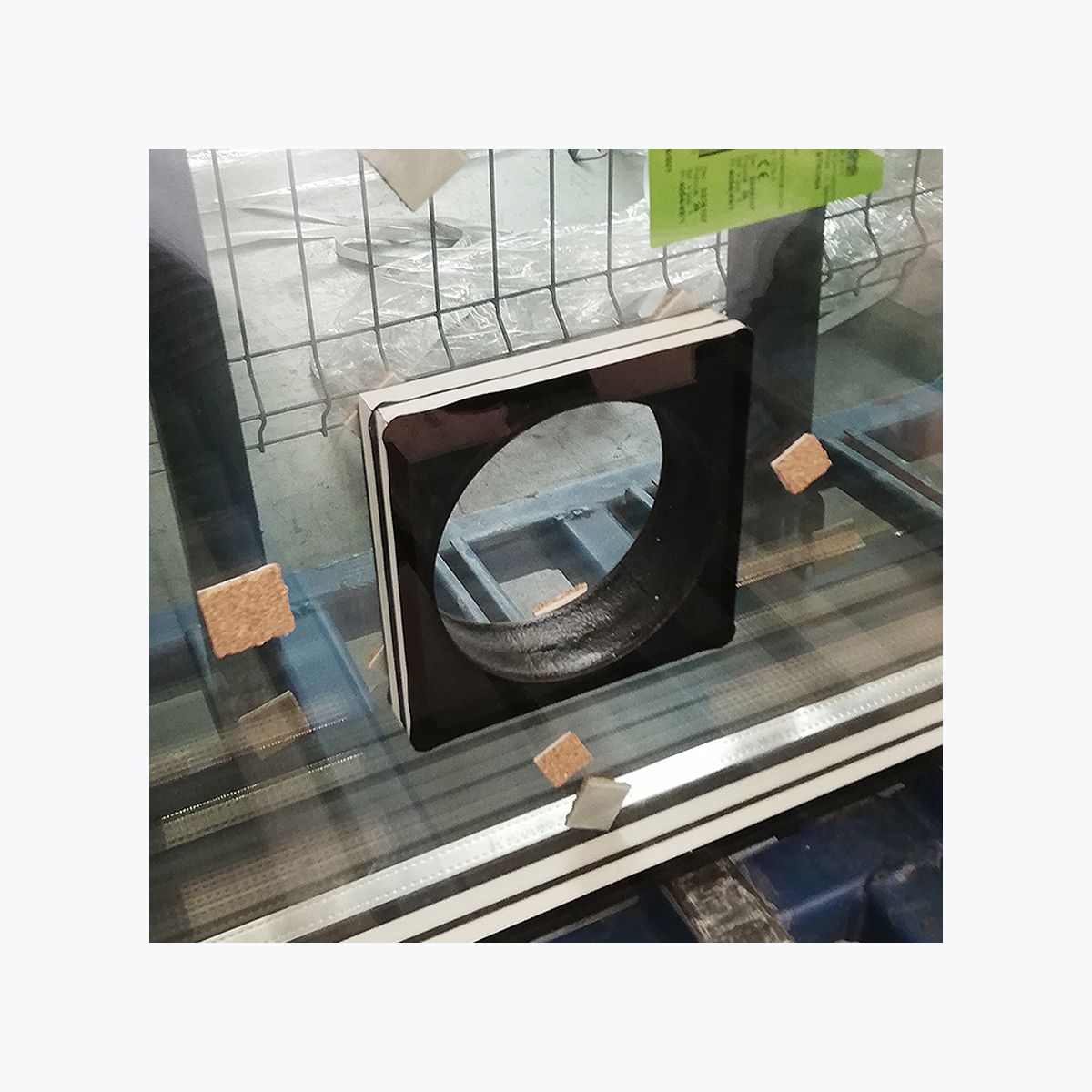

Squared frame
1. Hole in the glass
2. Frame
3. Sealant
Recommendations:
✓ Minimal hole diameter Ø90
✓ Maximal hole diameter Ø200
✓ Aluminum, steel, SWS, CRU frame
✓ Connecting using straight corners
