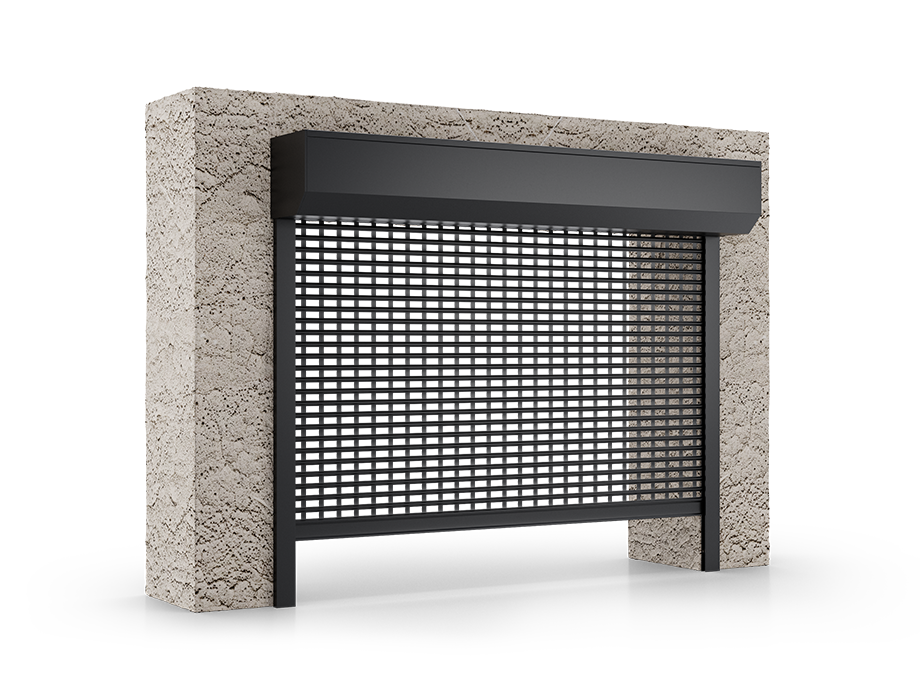

ROLLER GRILLE DOORS
Rolling grille, unlike other protection types, doesn’t hide the exposition fully and ensures ventilation of the rooms. It is suitable for installation in shopping arcades or public utility buildings. The installation is possible in already existing buildings and those which were just created. In the rolling grilles it is possible to open them manually - for example in case of a malfunction. The grille has a safety brake and protection from crushing. The grille is equipped with an electric drive. The steering happens using a switch and a key. The profiles are made from high-quality aluminum alloy coated with a powder coating resistant to abrasion and weather conditions. Thanks to that the coat has a very good color durability. The colors from the RAL palette are available.
Here are some key advantages you can enjoy:
- Installation possible in existing and newly constructed facilities
- Recommended for installation in shopping arcades and public utility buildings
- Emergency, manual grid opening system as standard
- Possibility of making the grid in a box or on consoles
- Standard protection against uncontrolled lowering of the armor (inertial brake)
- Choice of tubular or side drive
6m
maximum width
6m
maximum height
32m²
maximum covered surfice
PROFILES
High-quality aluminum, extruded profiles with a powder coat resistant to abrasion and weather conditions. Thanks to that the coating has a very good color durability.

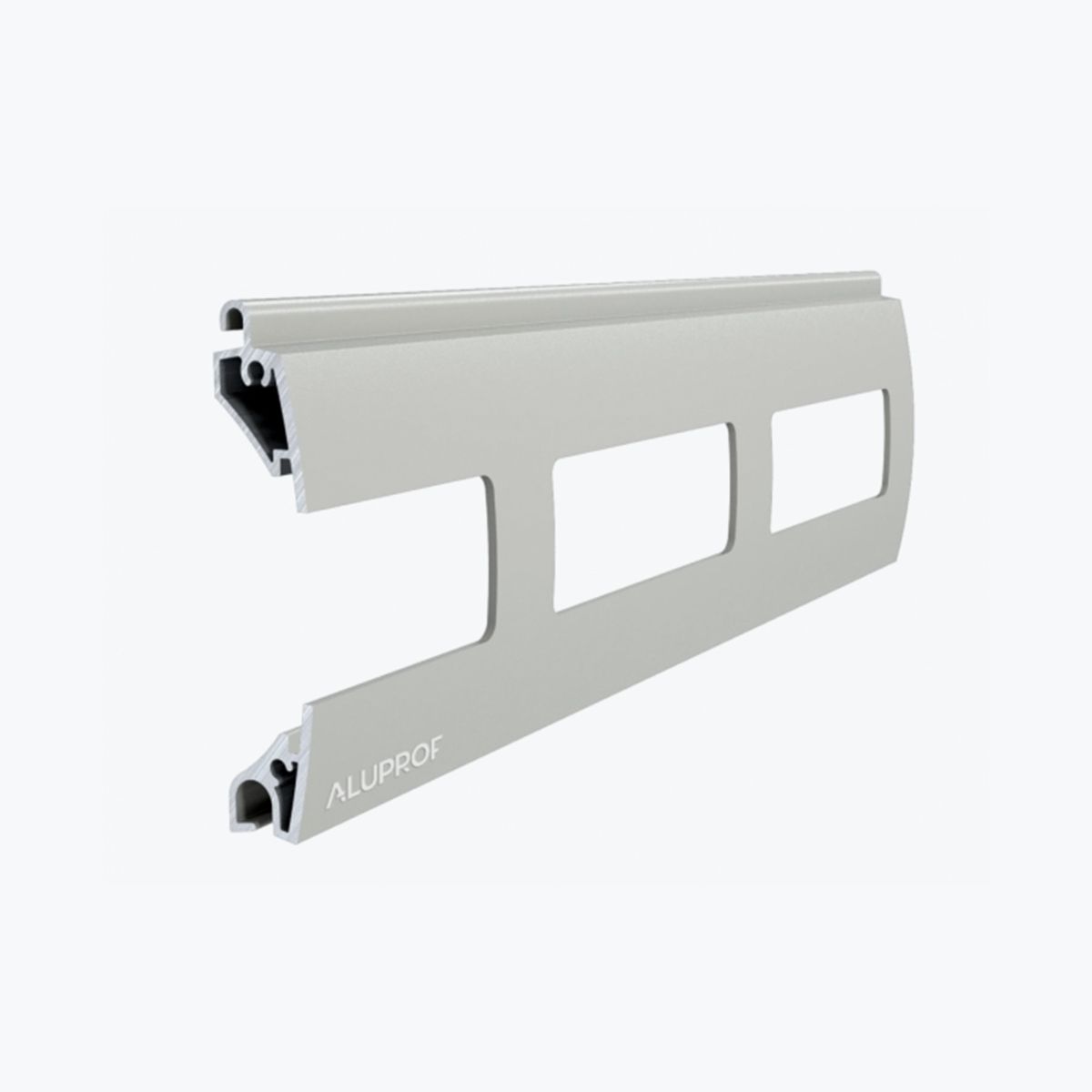

PER 77
Maximum surface of the product - 9m²
Clearance - 31,1%
Profile height - 77mm

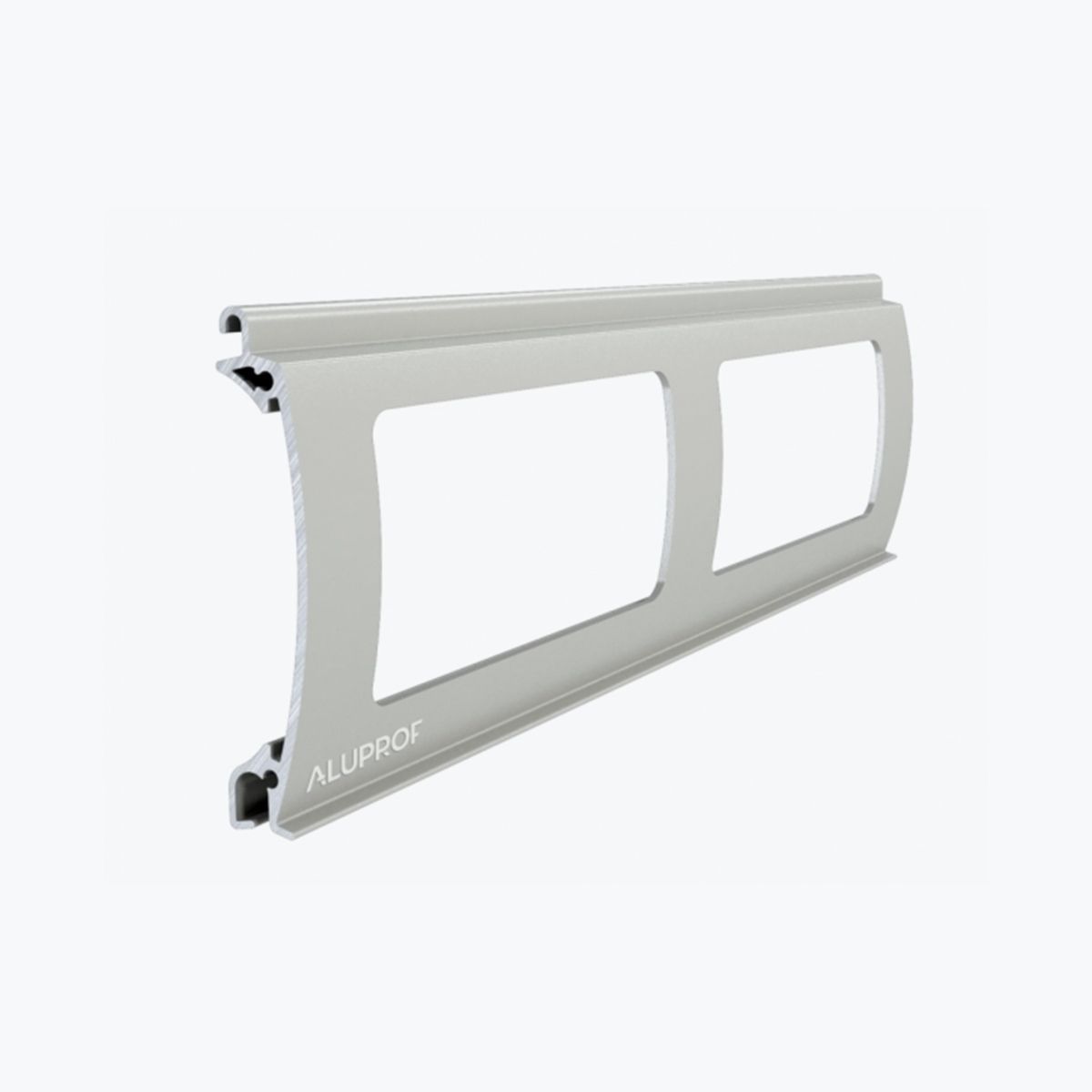

PEK 80
Maximum surface of the product - 15m²
Clearance - 52,6%
Profile height - 80mm

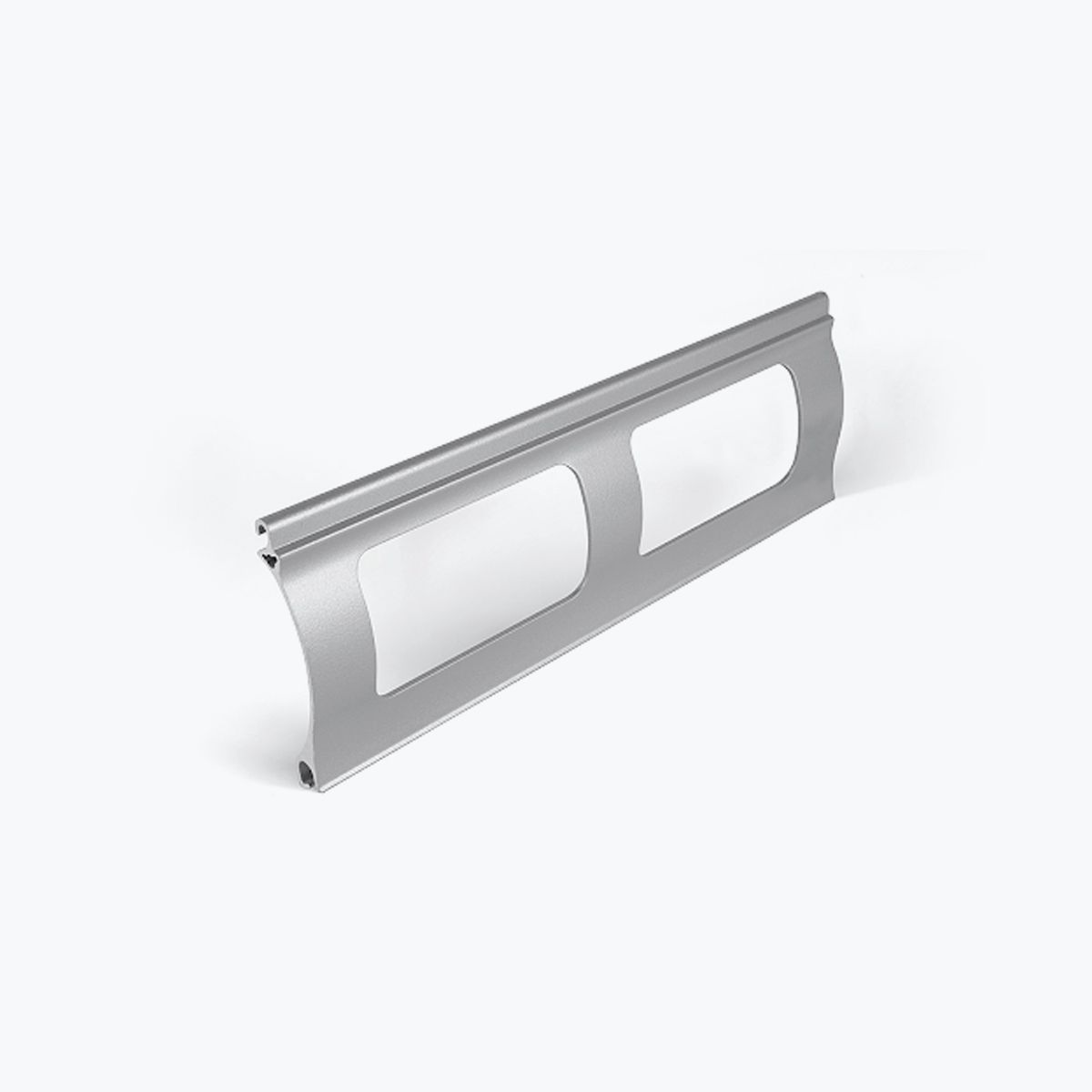

Easylook 84
Durable 84 mm profiles are available in any RAL color
COLORS
RAL7 Color Chart Range
Sectional garage doors are available in a multitude of colour options through a painting technique called Powder Coating, which provides a long lasting attractive finish.
