SIDE HINGED GARAGE DOORS
In our assortment we offer you made of steel, both: 2-leaf doors and 1-leaf garage doors. Swinging doors are reliable by using simple and proven solutions.
- 2770mm maximum width
- 2500mm maximum height
- 1.5–2.0 mm steel profiles
- filling with a 40 mm sectional door panel
- 500 or 610 mm panel height
- polyurethane foam insulation of the panel
- steel or drop threshold
- variety of of finishes and glazing can be used
- profiles painted in RAL colors
A simple, economical and traditional solution does not have to be boring at all, especially if it is based on advanced steel systems. In the swing garage doors we offer, it is possible to achieve very interesting aesthetics using glazing and aluminum sections. In combination with extensive colors and a variety of accessories, gates of this type are able to act as a showpiece of your home.
Through using segmented panels in our swing doors, it is also possible to create a garage door with just this filling. Using the given infill gives us the possibility to adapt them to both swing and segmented doors, so we have the possibility to apply the door to our garage while keeping the same style and aesthetics of our facade.
Steel side-hinged garage door system equipped with a thermal break. It uses 40 mm thick panels filled with polyurethane foam, used in sectional doors, which guarantees excellent thermal parameters. An additional perimeter seal further improves its insulation.
Single- and double-leaf side-hinged Unico doors use 1.5 to 2.0 mm warm galvanized steel profiles painted in any color from the RAL palette (powder coating). The thermal break, sinusoidal in shape, also improves the static parameters of the door.
This universal solution is installed in a garage opening or on a wall. The first approach allows opening at an angle of 90°, the second – 180°. It has a lock, handle, flush bolt and doorstops as standard.
The ease of matching Unico doors to any house, detached garage or outbuilding is guaranteed by numerous colors, types of finishes and available glazing options.
SIDE HINGED GARAGE DOOR EMBOSSING PATTERNS
Swinging garage doors are available in several embossed patterns. The offered variants allow you to emphasize the interesting style of the product and suit the tastes of people who value modern solutions.
No embossing
Single embossing
Narrow embossing
SIDE HINGES GARAGE DOOR GLAZING OPTIONS
Swinging garage doors are available in several glazing options. The offered variants allow you to emphasize the interesting style of the product and suit the tastes of people who value modern solutions.

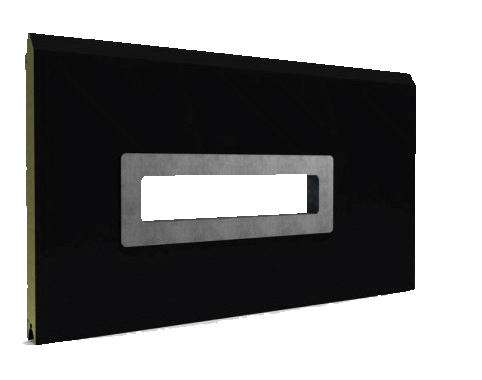

warm glazing
rectangular (490x155)

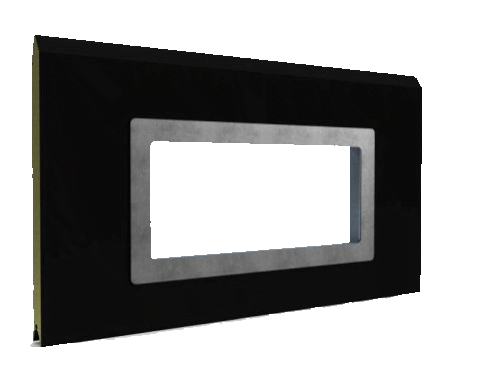

warm glazing
rectangular (585x285)

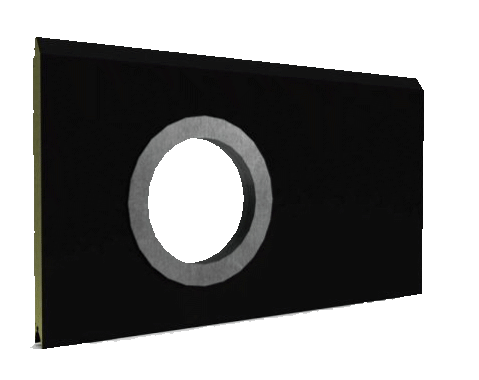

cold glazing
round glazing (diameter 330)

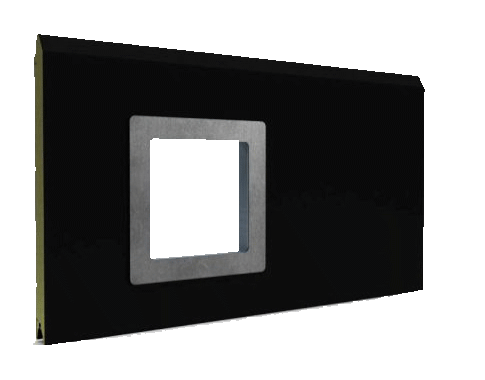

cold glazing
(square 290x290)

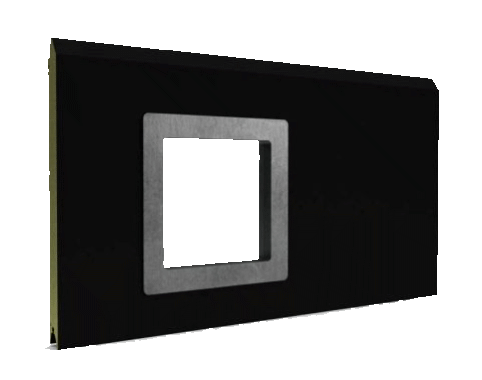

cold glazing
square (310x310)
COLOUR OPTIONS
RAL Color Chart Range
Sectional garage doors are available in a multitude of colour options through a painting technique called Powder Coating, which provides a long lasting attractive finish.
