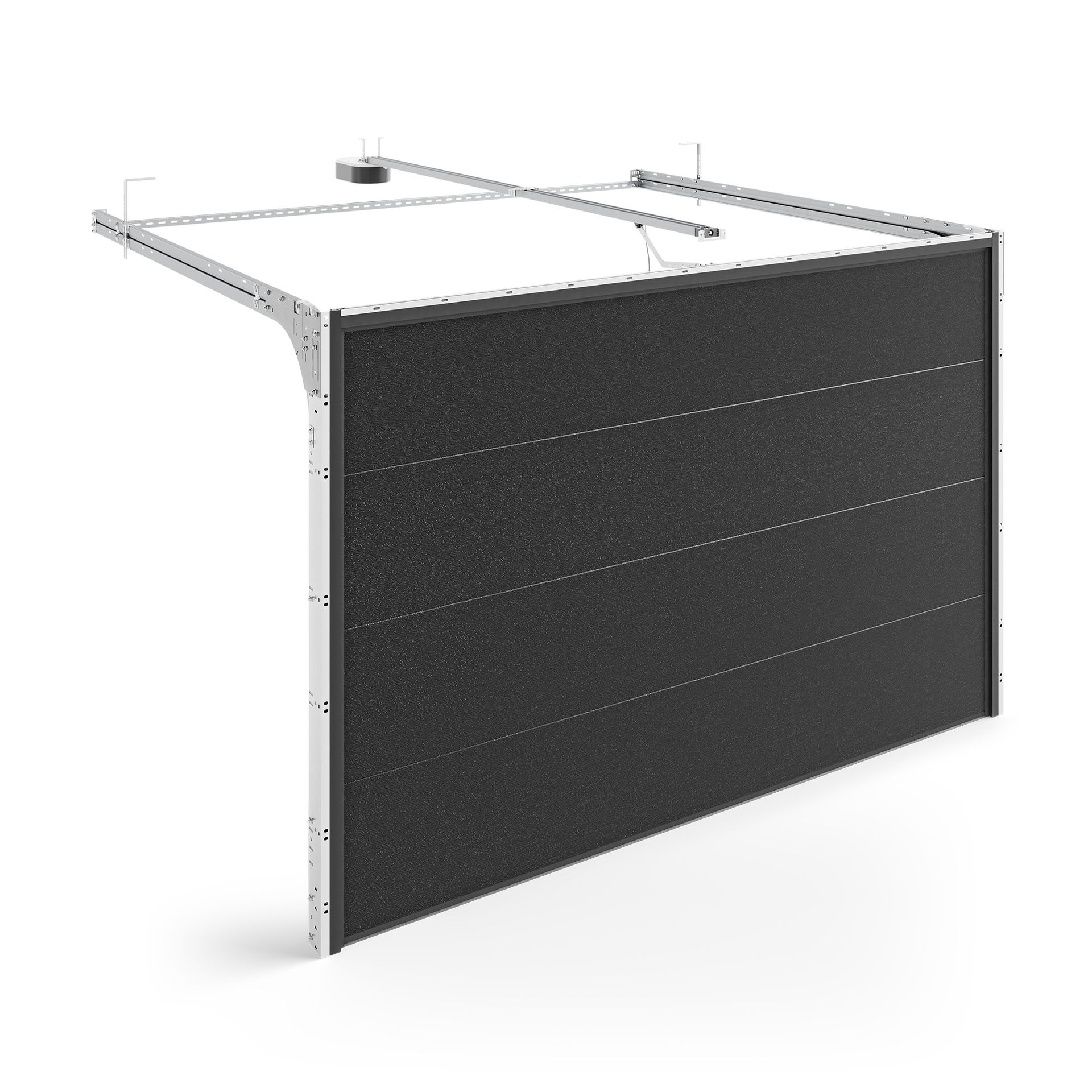

INFINITI X SECTIONAL GARAGE DOORS
Made of the best components. INFINITI sectional doors are durable and ensure safety in every home. Thanks to a wide range of accessories, it is possible to adapt them to many arrangements.
Door system with extension springs
The system with tension springs is recommended for use in garages with a small area. Its assembly is quick and does not require additional winding of the springs. The INFINITI X uses the so-called „spring-in-spring” mechanism, which allows the safe use of a door sash weighing up to 130 kg. The presence of two springs also provides additional security, eliminating the risk of the highly improbable breakage of one of the springs.
- maximum weight: 130 kg
minimum dimensions of jambs: 85 mm
minimum dimensions of the lintel: 120 mm
- we offer panels with a smooth external surface, woodgrain structure with low and high embossing (varnished according to a rich RAL palette) or veneered
- recommended for installation in small garages
- quick installation does not require special winding of the springs
- uses a double spring mechanism
- The Ideal 70 offers a premium quality finish. A pioneering system means that aluplast can also guarantee performance eco-tech 70 recycled content options.
4500mm
maximum width
3000mm
maximum height
9m²
maximum covered surfice
SECTIONAL GARAGE DOOR PACKAGES
INFINITI Quiet
- door movement is smooth and quiet
- aesthetics and functionality at the highest level
- door harmonizes with the rest of joinery, which is equipped with safety elements
- comfort for the most demanding customers minimized noise of the door operation
INFINITI Safe
- optimal safety for all household members and your car
- ensures operation during longer power cuts
- door harmonizes with the rest of joinery, which is equipped with safety elements
- designed in - anti burglary security
INFINITI Premium
- includes quiet and safe accessories
- satisfies the values of design and aesthetics
SECTIONAL GARAGE DOOR ADD ONS
Ornaments
- eye-catching inlays made of chrome-plated steel (Inox)
- available for all sectional garage doors
- decorative element used in All in One Design Verona, Torino and Firenze compositions
Service door
- doors available with a low or high threshold and as a right or left door
- door width: from 800 to 900 mm
- minimum service door height: 1850 mm
- minimum distance to the service door from the edge of the sectional garage door: 500mm
Glazing
- glazing in chrome-plated steel frames with double safety glass 33.2
- options for inserted glass round, square, diamond and rectangular shape
- glazing in galvanised steel frames with a single pane
- glazing in varnished PVC frames filled with transparent polycarbonate
SECTIONAL GARAGE DOOR EMBOSSING PATTERNS
Sectional garage doors are available in several embossed patterns. The offered variants allow you to emphasize the interesting style of the product and suit the tastes of people who value modern solutions.
No embossing
Single embossing
Narrow embossing
HOW TO MESURE SECTIONAL GARAGE DOOR OPENING?
Measuring for the garage door should be done when the garage is fully finished. Of course that’s not always possible. When the door doesn’t fill oening, then it is possible to use renovation steel, painted to the color of the door. Steel will perfectly cover any clearances between the door and a building, creating a consistent frame.
SECTIONAL GARAGE DOOR PANEL STRUCTURES
Woodgrain
Deep Matt
Smooth
RAL COLOUR OPTIONS
RAL7 Color Chart Range
Sectional garage doors are available in a multitude of colour options through a painting technique called Powder Coating, which provides a long lasting attractive finish.
