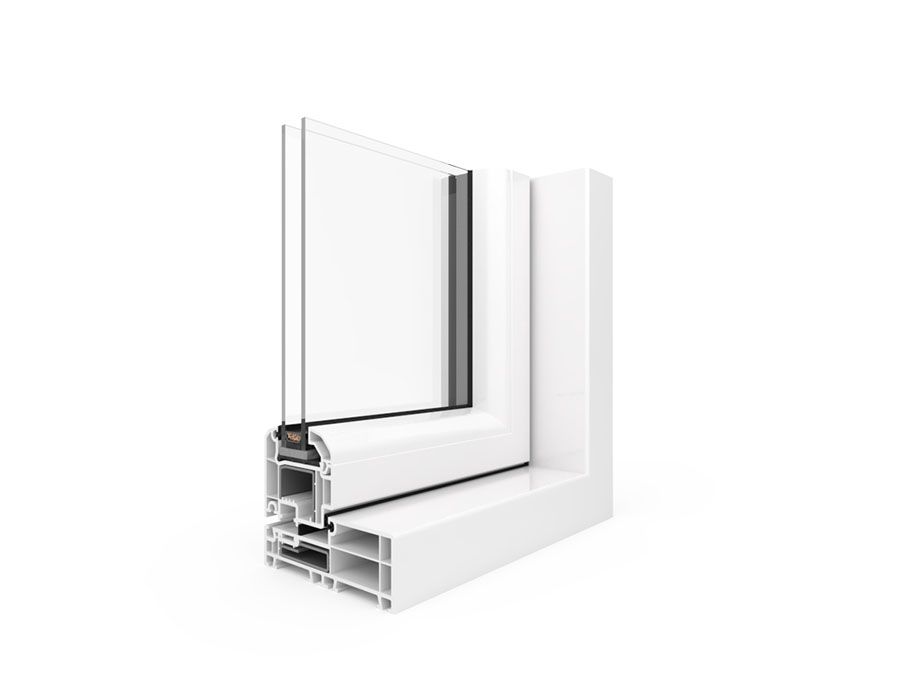

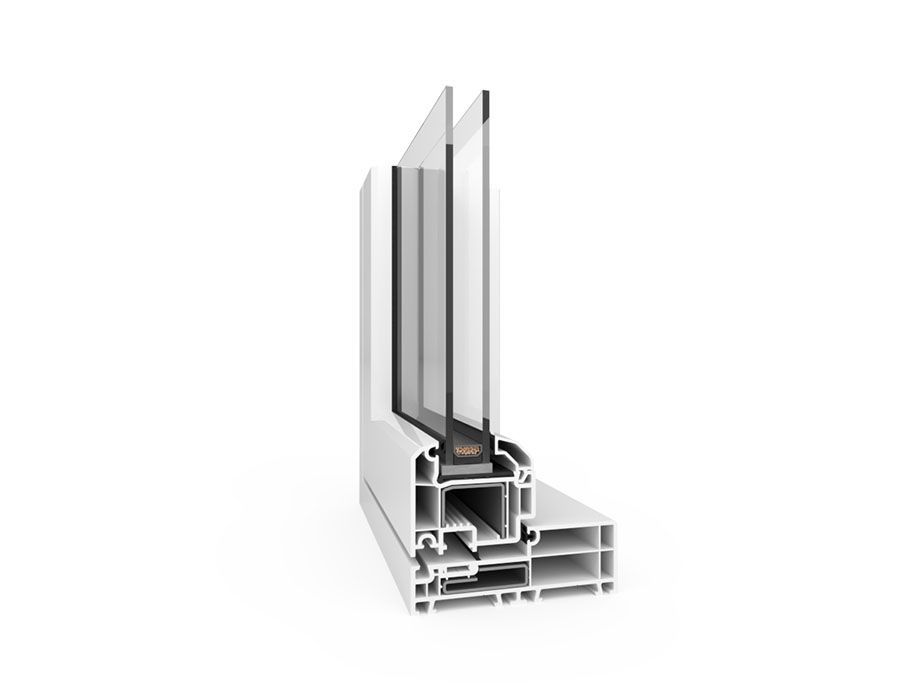

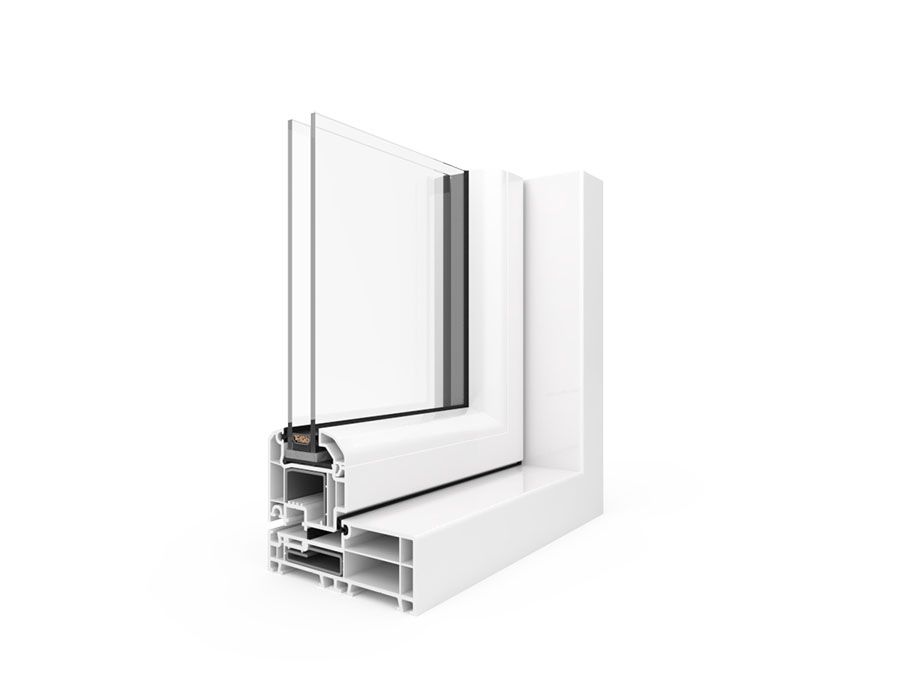

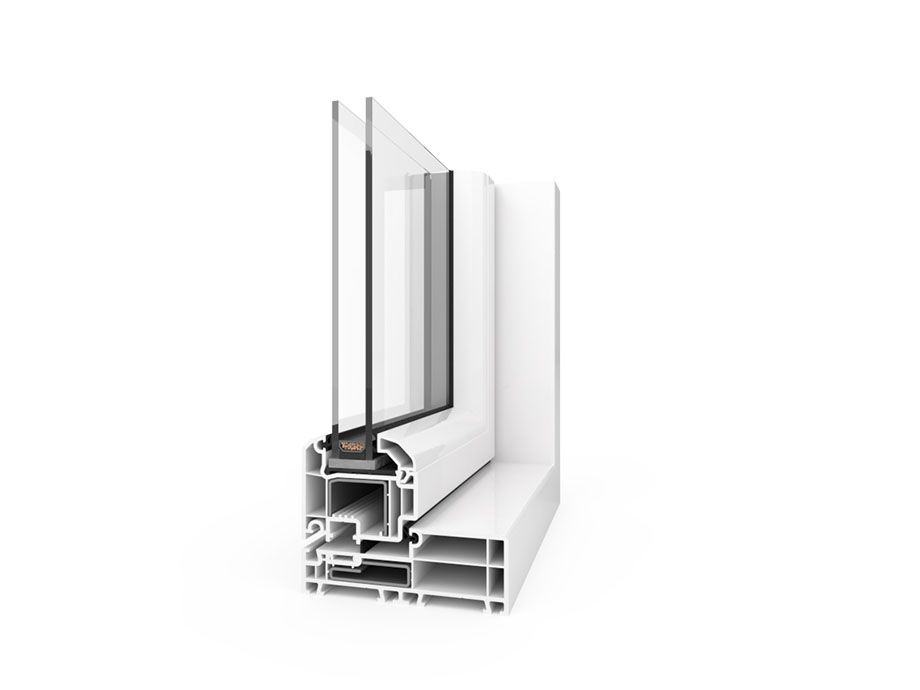

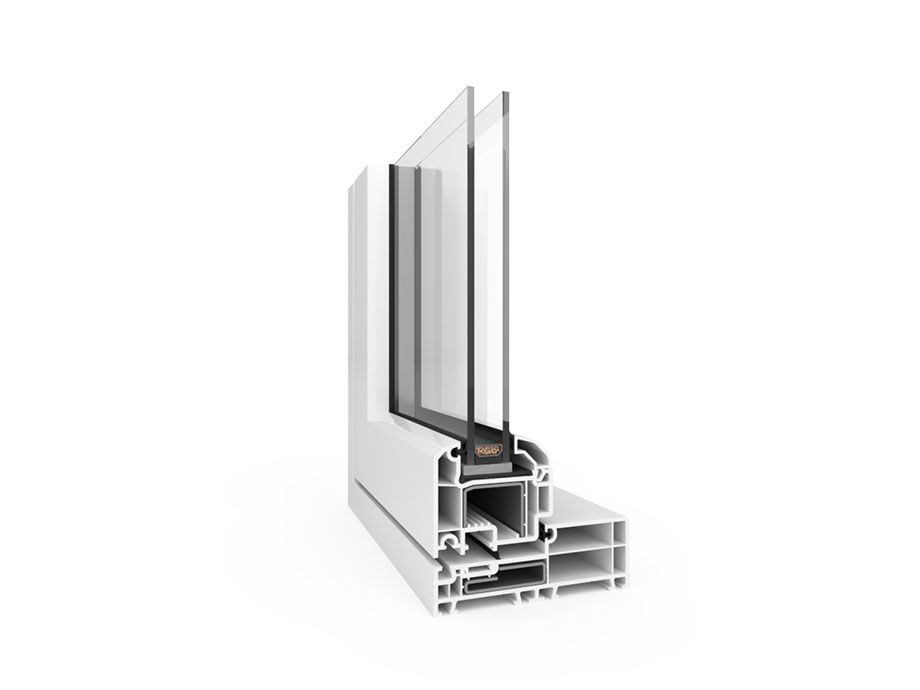

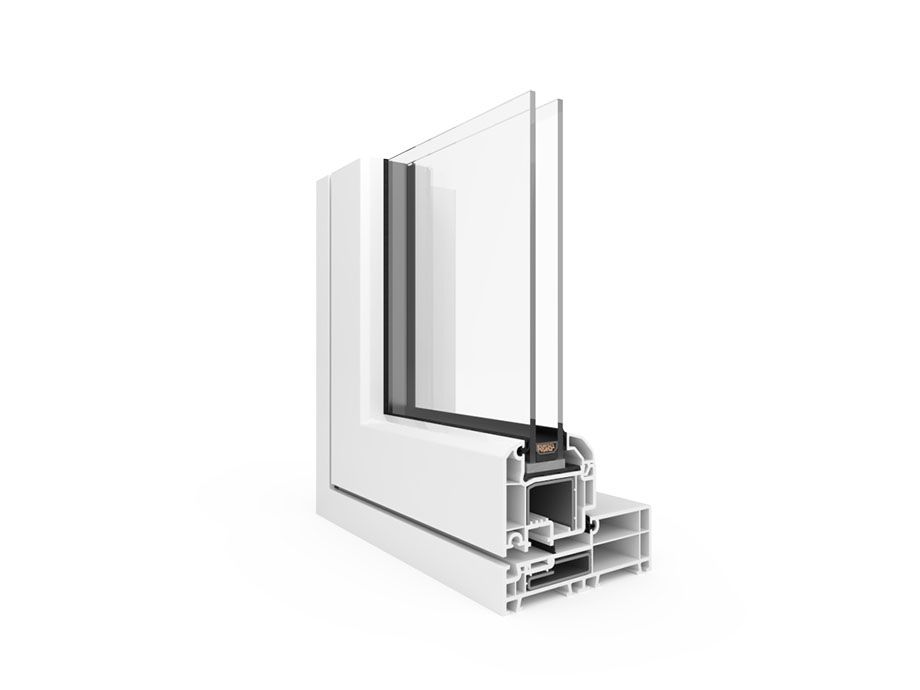

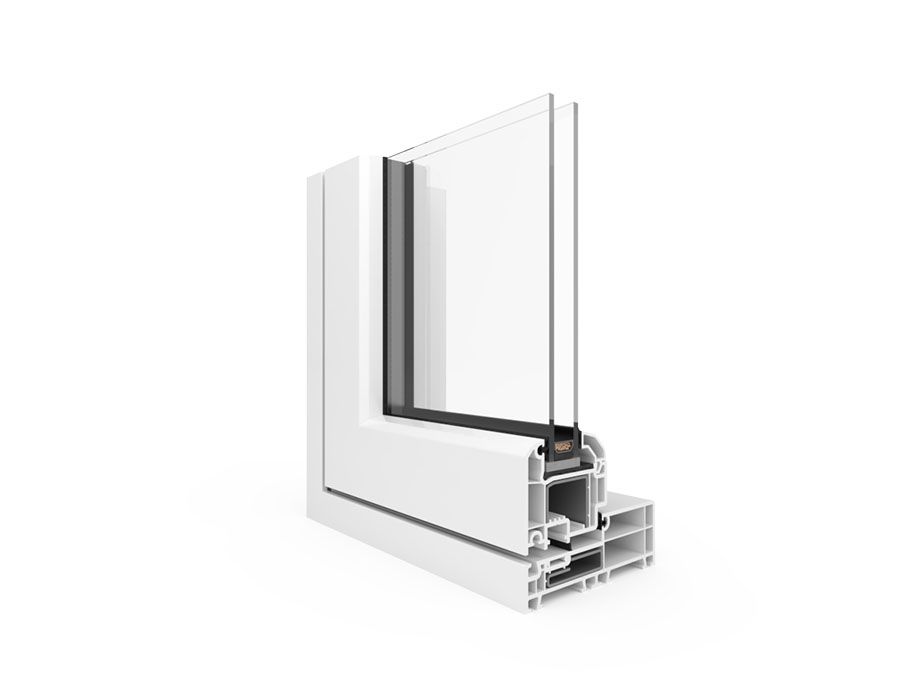

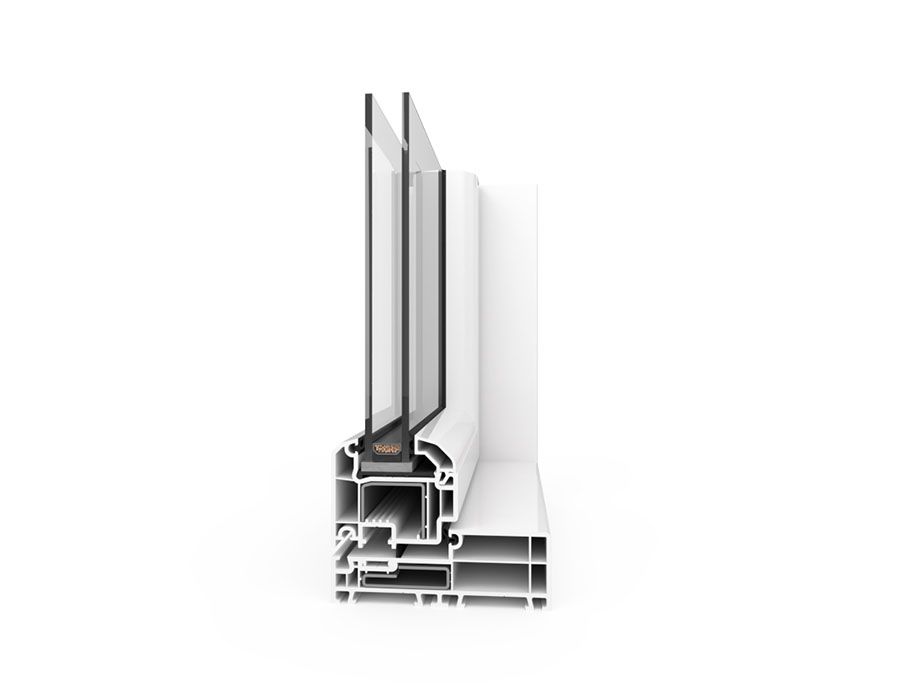

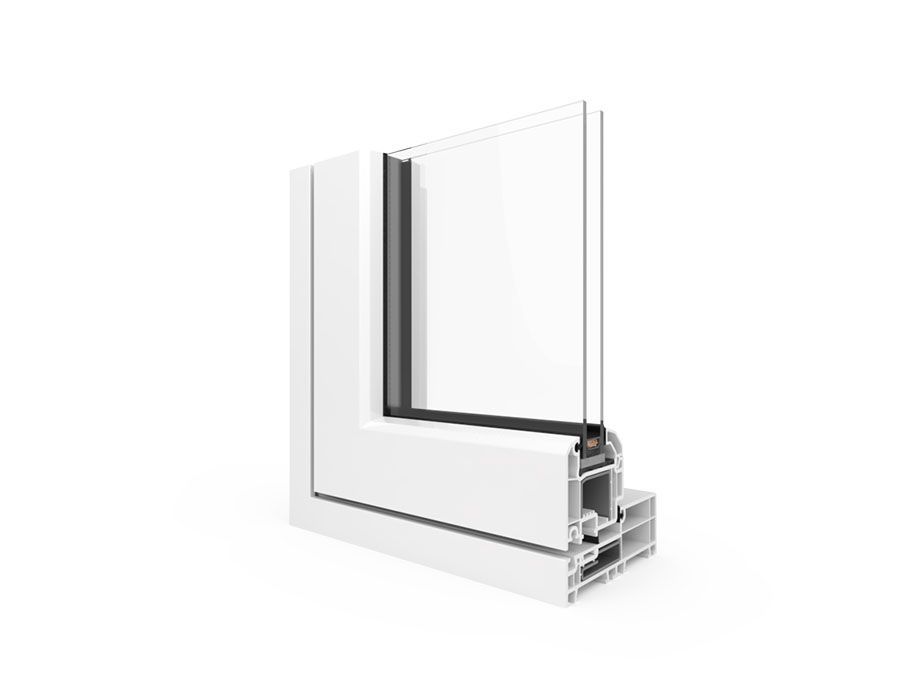

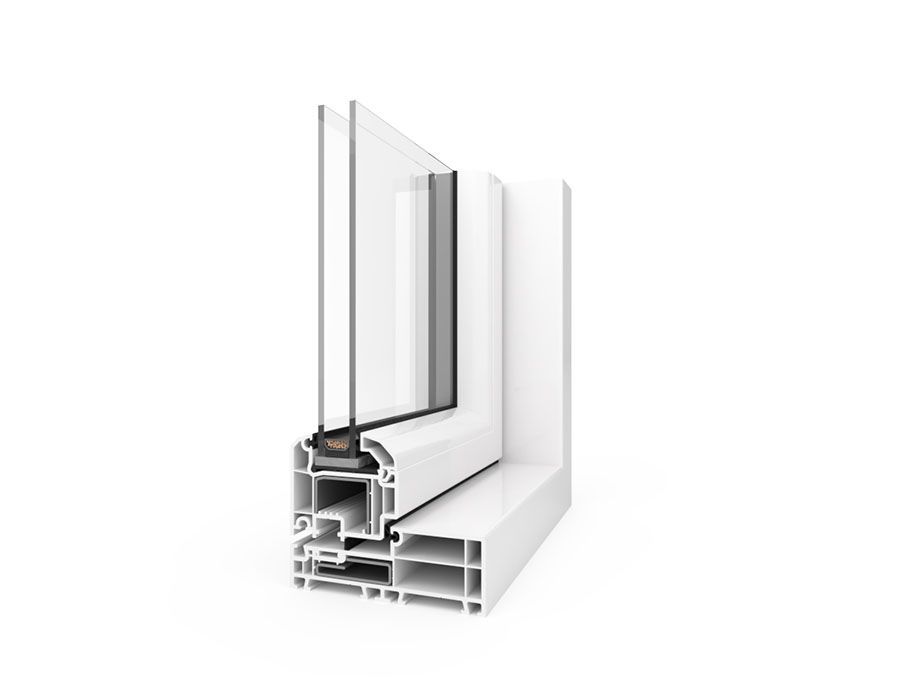

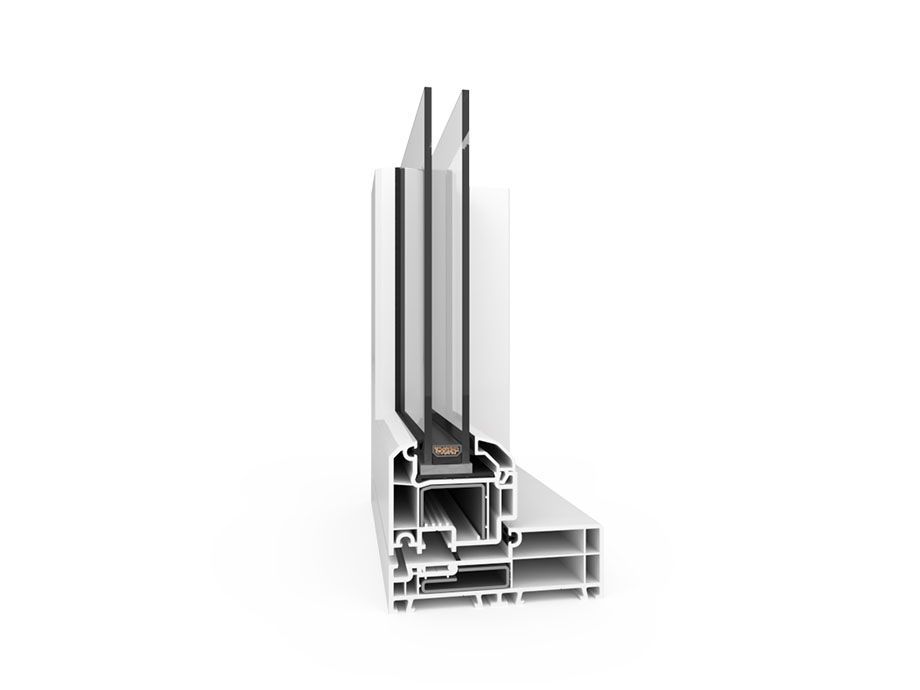

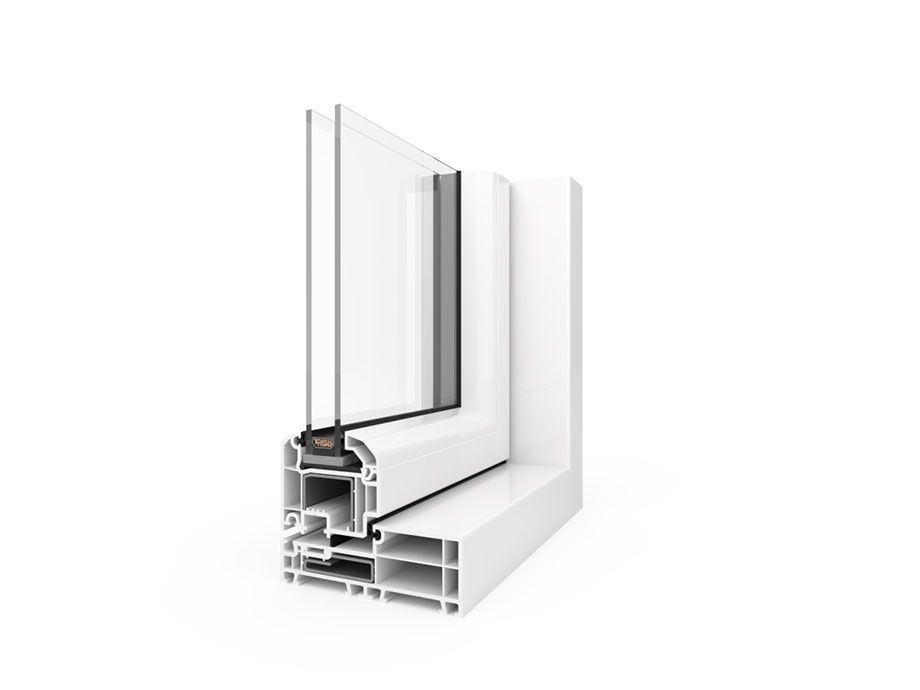

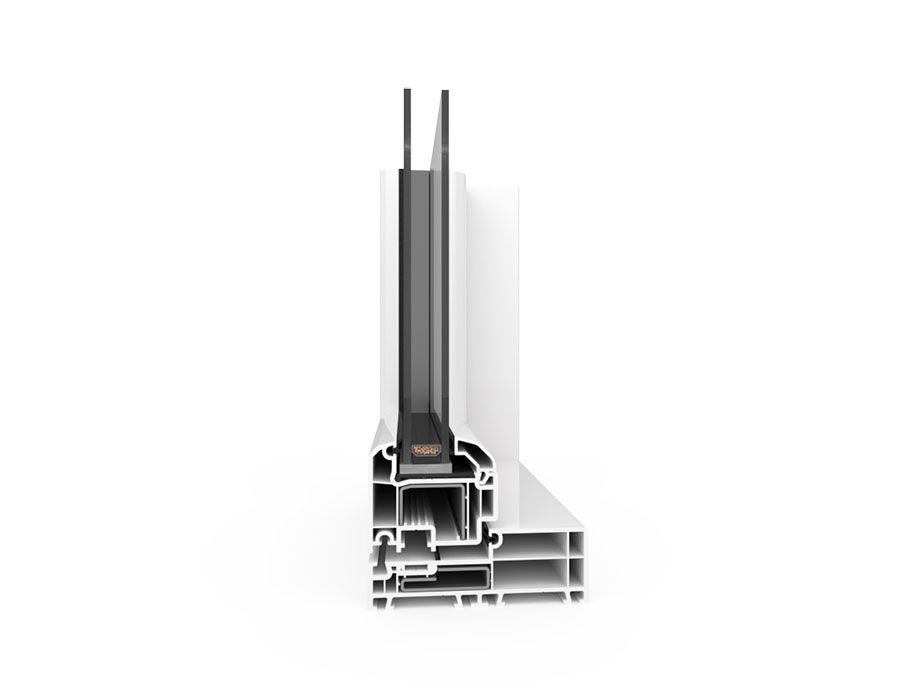

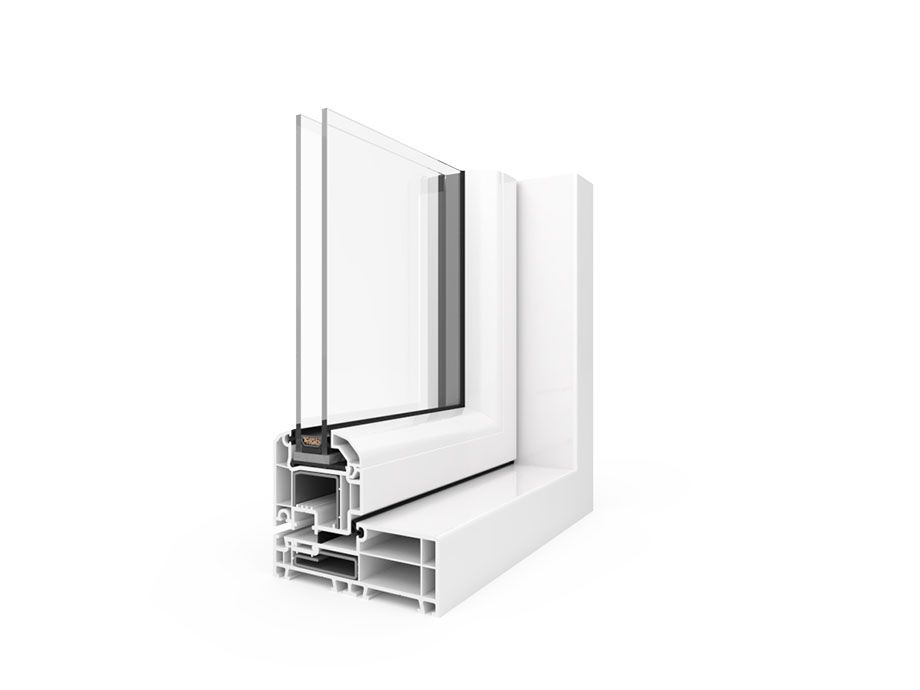

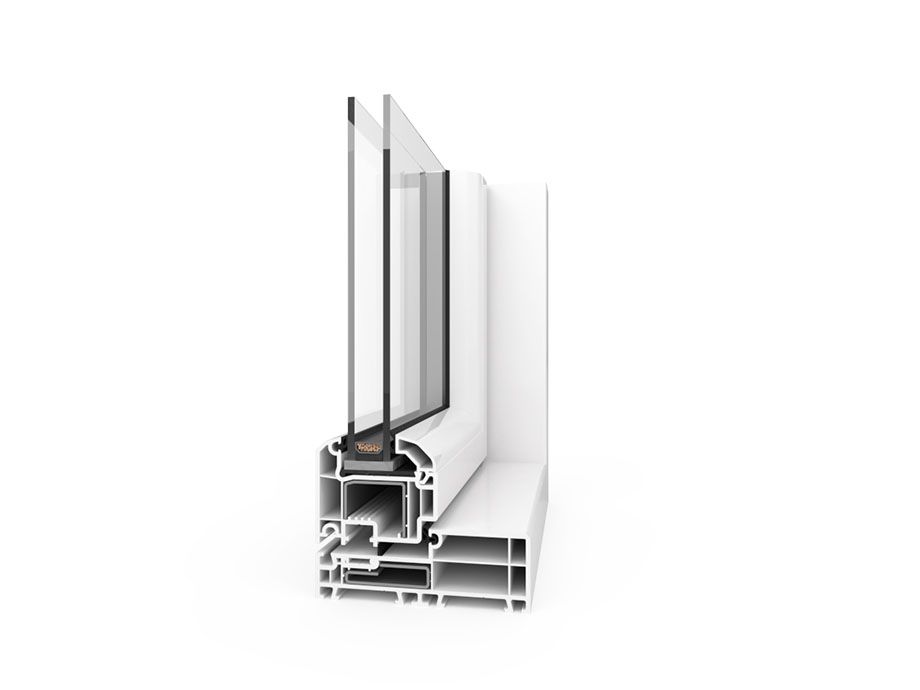

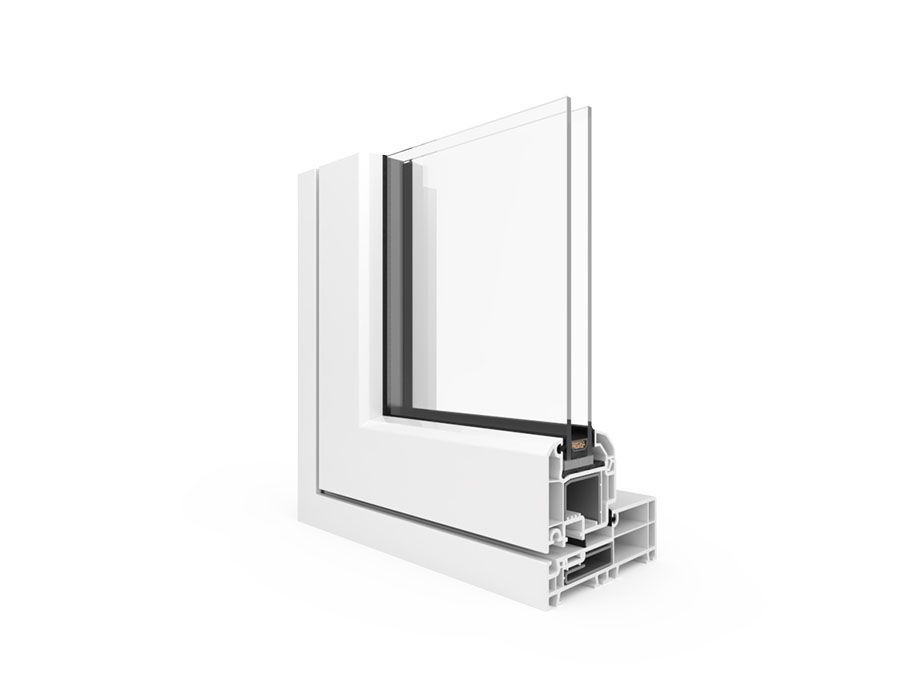

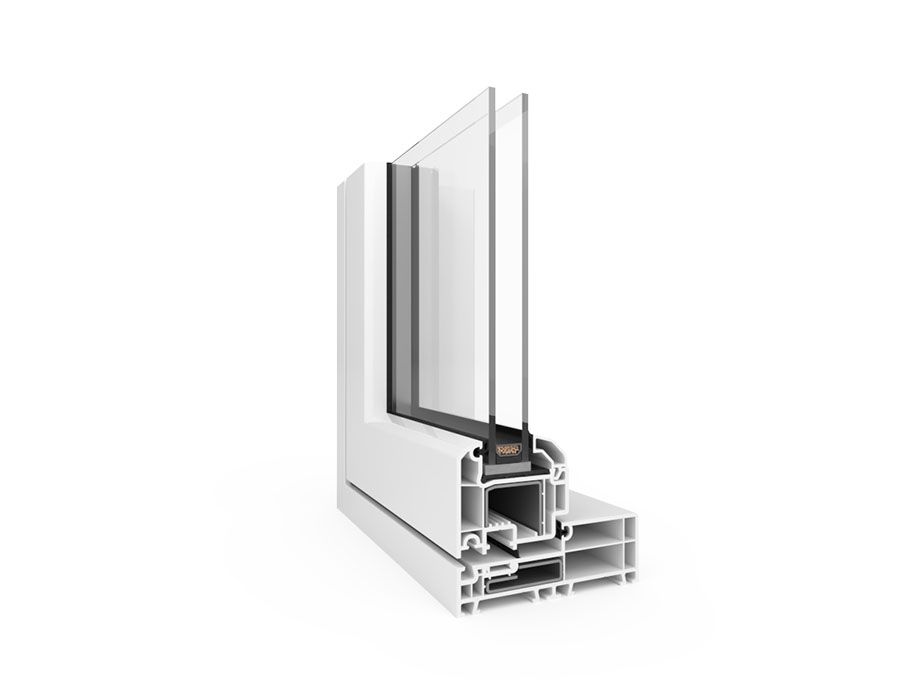

uPVC CASEMENT WINDOW NORDLINE
- installation depth 120 mm
- glazing with units up to 42 mm (standard unit 24 mm)
- joining profiles with a V-super weld
- two anti-burglar latches per sash
- composite reinforcement (replaces the steel core)
- two-sided foil not available
Uw 1.0
Uw for Ug = 1.1
(Aluminum spacer)*
2
Gaskets
5
Chambers
Unlike European-style windows, the old architectural tradition in Scandinavian homes used outward-opening windows. Scandinavian-style windows are made using an Nord Line. This uPVC profile system specially designed windows for regions with strong winds, frequent storms.

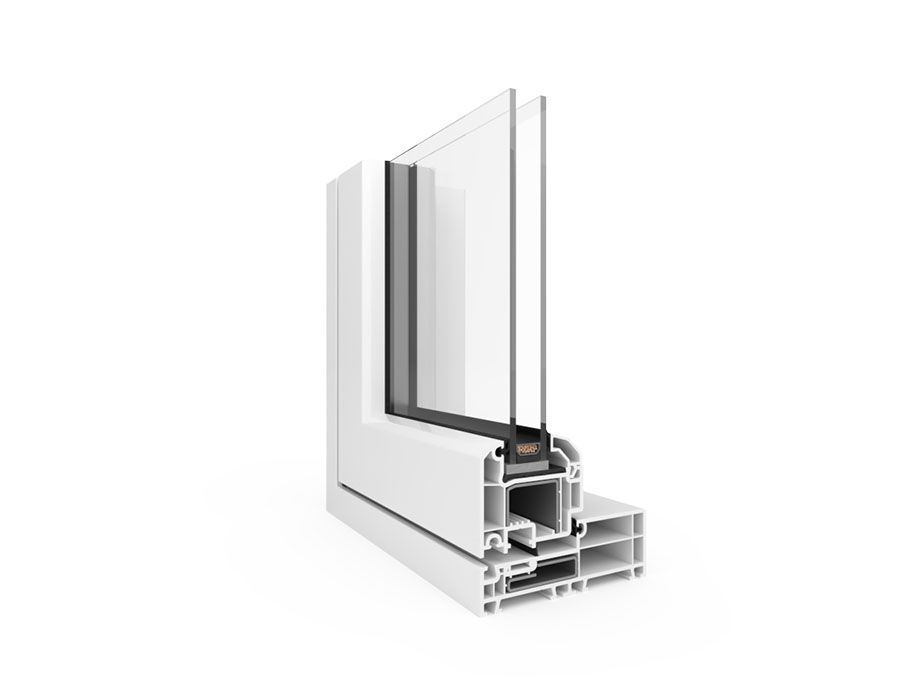

Nord Line 5-chamber with seal system and with 120 mm installation depth. These are basically windows traditionally used in Danish, Norwegian and Swedish homes, which let in more light compared to traditional European uPVC systems.
A characteristic feature of windows based on the NordLine system is the way they are opened. The windows, depending on the needs, can be pivoted and opened outwards. Windows based on this product line have a total depth of 120 mm.
GLASS OPTIONS
Double Glazing
Single-chamber construction of insulated glass package with thermal insulation and thermal transmittance in a range of:
1,0 ≤ Ug ≤ 2,9 W/(m2 * K)
Triple Glazing
Dual-chamber construction of insulated glass package with thermal insulation and thermal transmittance in a range of:
0,4 ≤ Ug ≤ 0,9 W/(m2 * K)
Quadruple Glazing
Triple-chamber construction of insulated glass package with thermal insulation and thermal transmittance in a range of:
Ug = 0.7-0.3 W/(m2 * K)
WOODEC FOILS
ap19 turner oak malt
ap20 sheffield oak alpine
ap21 sheffield oak concrete
ap22 turner oak toffee
ALUDEC FOILS
ap03 anthracite gray
ap04 jet black
ap07 alux DB
ap08 basalt gray
ap12 umbra gray
ap36 traffic white
ap37 window gray
MODERN GREY FOILS
ap40 anthracite gray
ap60 anthracite gray
(sand structure)
ap61 gray
(sand structure)
ap63 brushed aluminum
ap65 gray quartz
(sand structure)
ap71 jet black matt
ap07 alux DB
ap86 papyrus white
ap90 silky gray
ap91 concrete gray
WOOD LOOK FOILS
ap01 special oak
ap02 natural oak
ap06 dark oak
ap11 Douglas fir
ap15 oregon III
ap23 golden oak
ap25 rosewood
ap27 nut
ap28 walnut terra
ap29 walnut amaretto
ap52 birch
ap75 sheffield oak
ap93 brown sheffield oak
ap94 gray sheffield oak
ap95 khaki oak
REMAINING FOILS
ap26 dark brown
ap30 dark green
ap32 dark red
ap34 gray
ap41 steel blue
ap42 agate gray
ap43 green
ap44 white
ap47 brilliant blue
ap50 cream white
ap62 basalt gray
ap69 dark graphite
ap87 gray beige
ap88 gray quartz
