LWS&I Windows and Doors

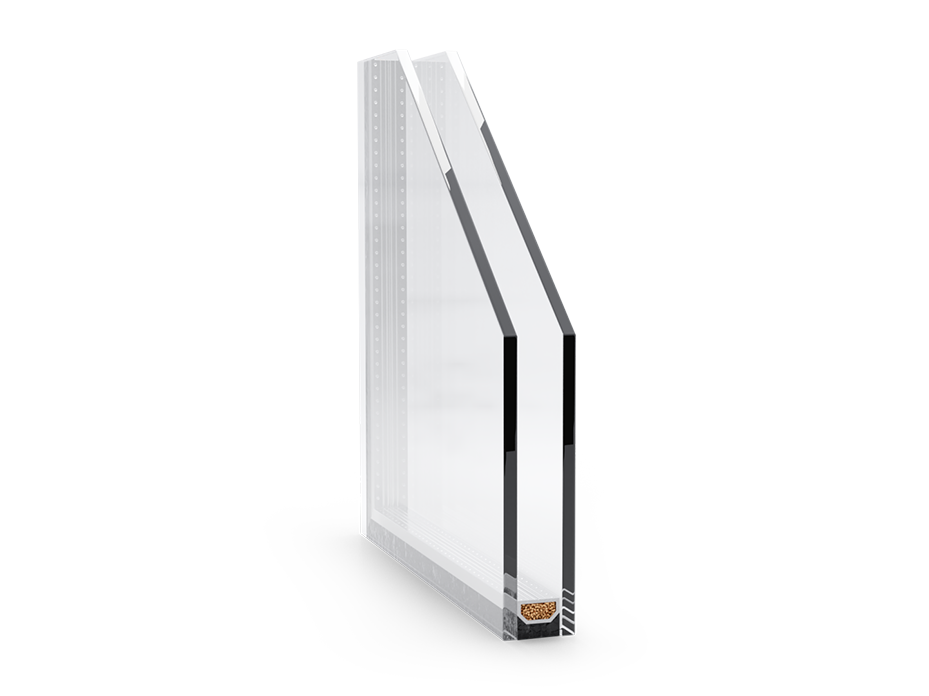

DOUBLE GLAZING
- two glass panes connected by a spacer - one of them is covered with a low-emission coating
- the inter-pane space is normally filled with 90% argon and 10% air
- it is possible to obtain a heat transfer coefficient up to Ug = 1,0 W/m²K
- it is possible to create packages with different widths of components in the combination
- it is possible to use warm SWISSPACER Ultimate spacers, which reduce the heat transfer coefficient through the entire window
A single-chamber double glazing unit composed of two glass panes. It is a standard for basic window and door systems.
The basic unit is characterized by a thickness of 24 mm, in which the components have a thickness of: 4 mm (glass) - 16 mm (spacer) - 4 mm (glass), forming the so-called 4/16/4 unit.
In the space between the panes, created by the spacer, there is mainly argon (90%), which additionally reduces the Ug heat transfer coefficient.
