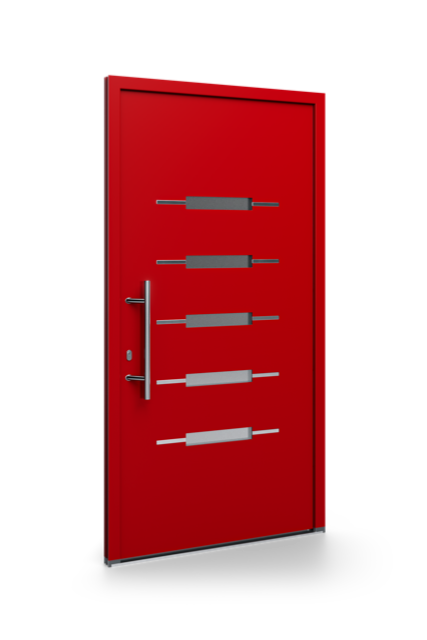

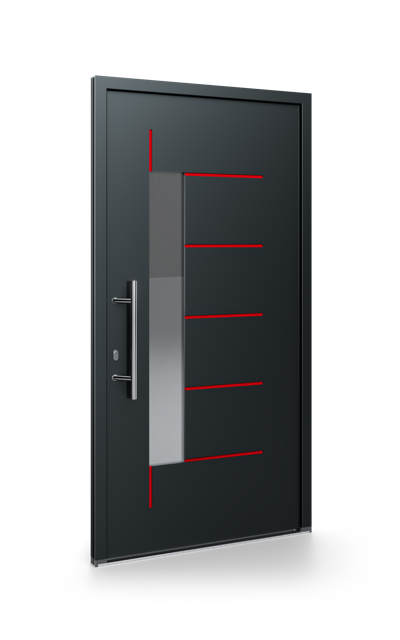

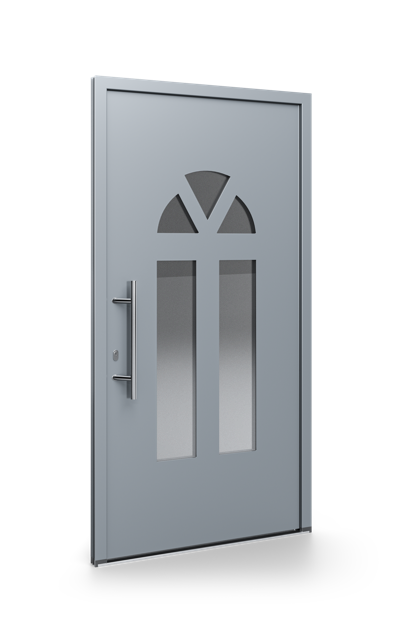

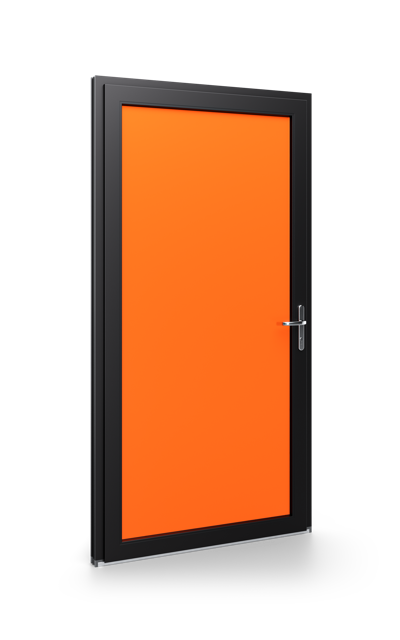

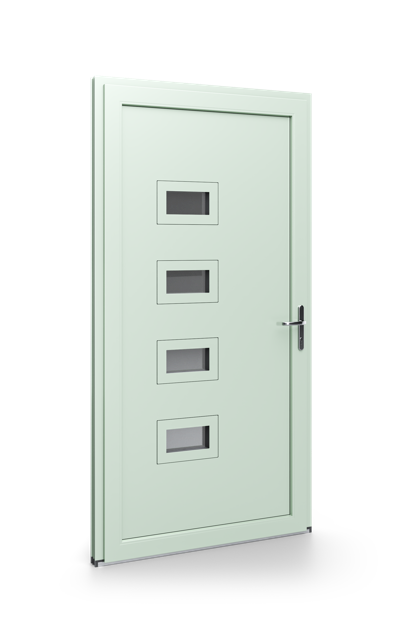

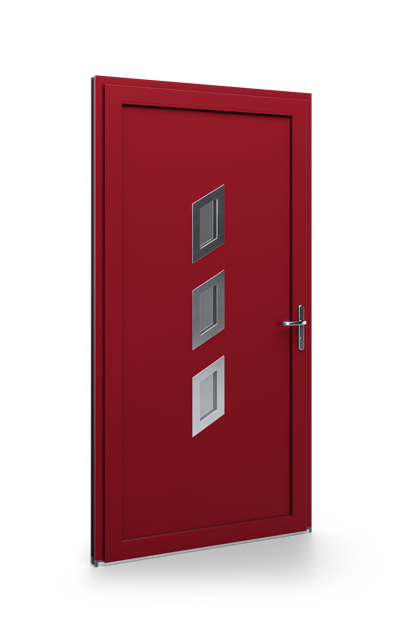

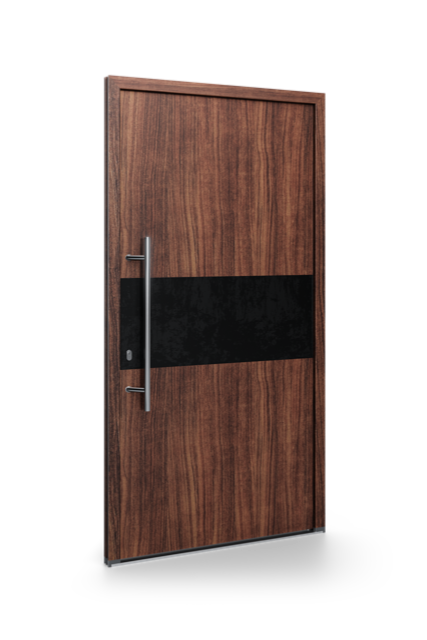

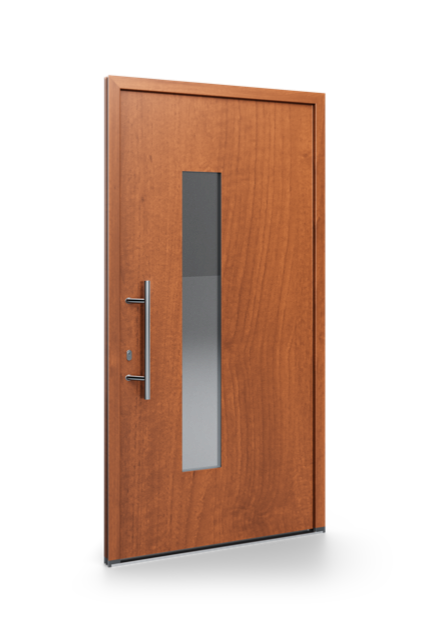

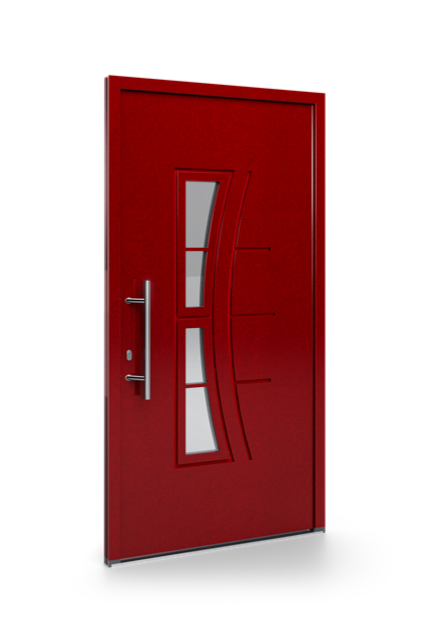

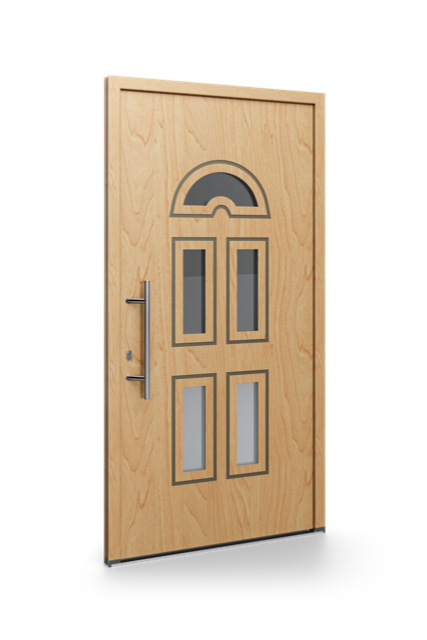

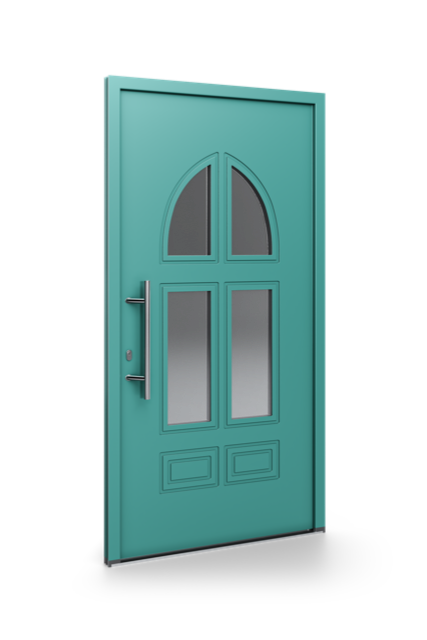

uPVC PANEL DOORS

The attractive aesthetics of the fully covered door leaf frame, rich colors, glazing, and accessories make overlay panel doors consistently eye-catching. This option is exceptionally durable, with a solid core and GFRP overlay that together offer above-average performance characteristics.

• installation depth 85mm

• Ud up to 0.5 W/m²K

• panel height from 1500 to 2270 mm (2280 mm for painted panels)

• panel width from 500 to 990 mm

• panel thickness from 36 to 70 mm

• inward or outward opening

• a large selection of door accessories

• low 20mm threshold as standard, possible with self-lowering threshold

• Panels coated with decorative films or painted in RAL K5 Classic colors

The 3 most important features of flush overlay panels:

• Very good thermal and acoustic insulation
• GFRP plate completely covering the frame of the door leaf on the outside
• Inner plate decorated with an aluminum frame or a frame in the color of the infill, allowing glass replacement in case of damage

Choose overlay panels if:

• You are looking for warm and reliable exterior doors for any home at an attractive price
• You want to choose the perfect design for you from many ready-made options, each uniquely featuring a covered door leaf frame
• You expect the ability to customize every element of your door to individual needs, from size and thickness to color scheme and accessories, and even the type of grip

Product Characteristics:

• The panel consists of a GFRP surface plate, a core (thermally insulating core with reinforcement), and an HPL plate on the inside
• The GFRP plate on the outside covers the entire surface of the door leaf, creating a uniform flush surface and enhancing its structural strength
• Handle on the inside
• Grip on the outside, mounted directly into the infill body or recessed
• Glazing using up to triple-glazed units
• Glazing with a wide range of decorative glass options
• For models with a stainless steel or black frame around the glazing on the outside, this frame is usually standard on the interior as well
• For models without an external frame around the glazing, there is an HPL frame in the color of the interior panel around the glass inside
• Decorative pilasters (grooving) in any RAL K5 Classic color on the exterior side of the door
• Applications in stainless steel, black, or silver, fully integrated into the panel (depending on the model)
• Panels coated with decorative films or painted in RAL K5 Classic colors
• The possibility of using two different colors on selected panels
• The interior color scheme is independent of the exterior


RAL K5 Classic Color Chart Range

Panels coated with decorative films or painted in RAL K5 Classic colors
