Steel Casement Window Unico XS
Unico XS is a system addition that provides thermal insulated window elements and fixed
glazing with ultra-slim facings. At the same time, it opens up a diversity of applications. This applies to the numerous opening variations as well as the possibility of installing fillings up to 60 mm to achieve very low U values and excellent sound insulation values.
The unique profile design made of 100% steel is ideally suited for renovating old or historic buildings and for modern glass constructions.
Optionally, you also design your elements with burglary resistance RC2.
Here are some key advantages you can enjoy:
- installation depth 70mm
- glazing with packages up to 42mm
- top hung and side hung windows
- galvanized steel profiles
- stainless steel thermal break
- powder coating in any color from the RAL palette
Uw 1.03
Uw for Ug = 0.5
(the Ultimate frame)*
2
Gaskets
3
Chambers
*Uw value is given for a reference window with dimensions of 900 x 1300mm

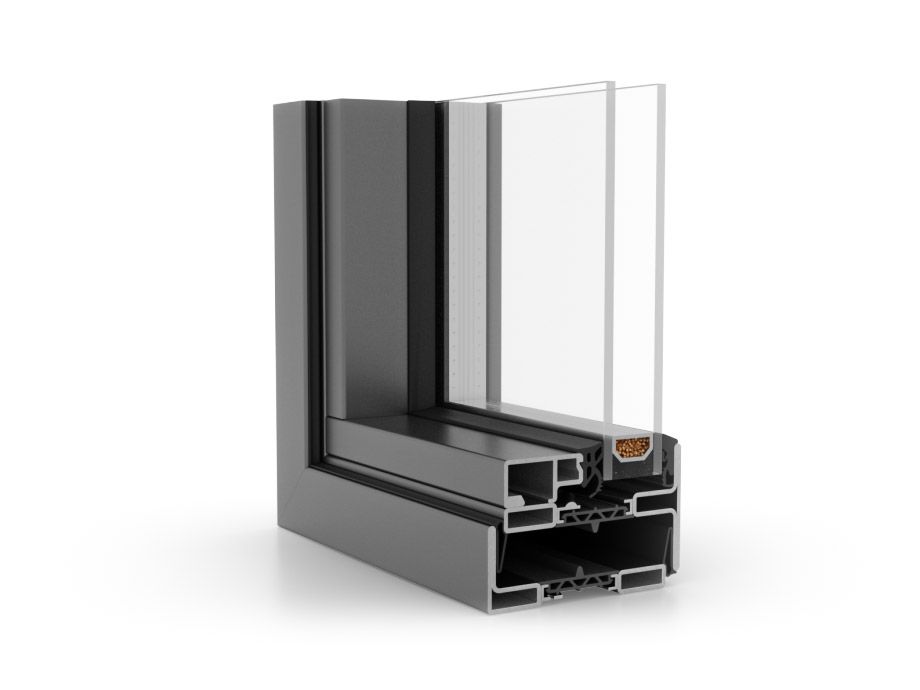

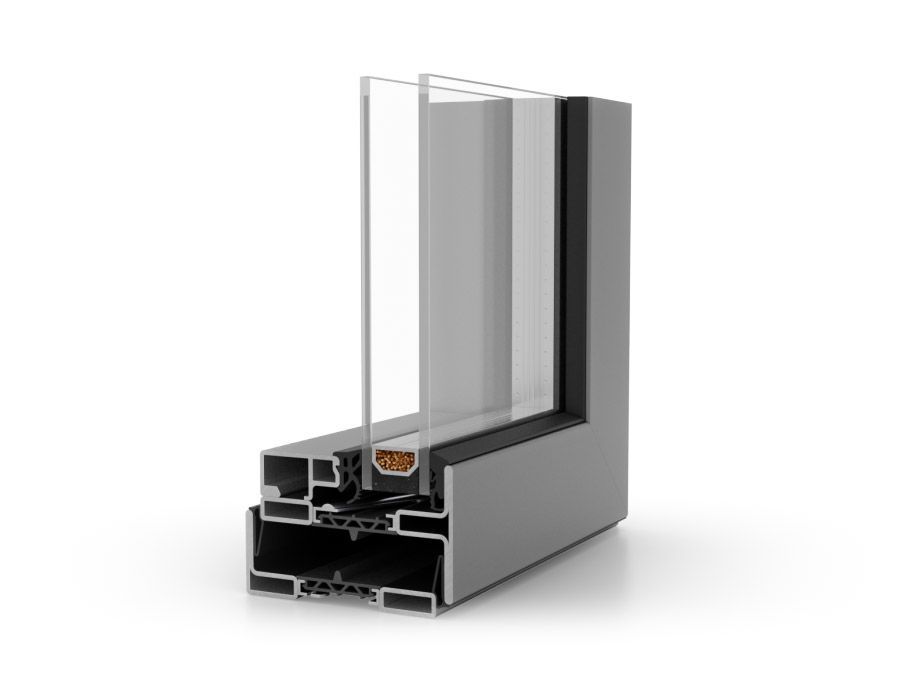

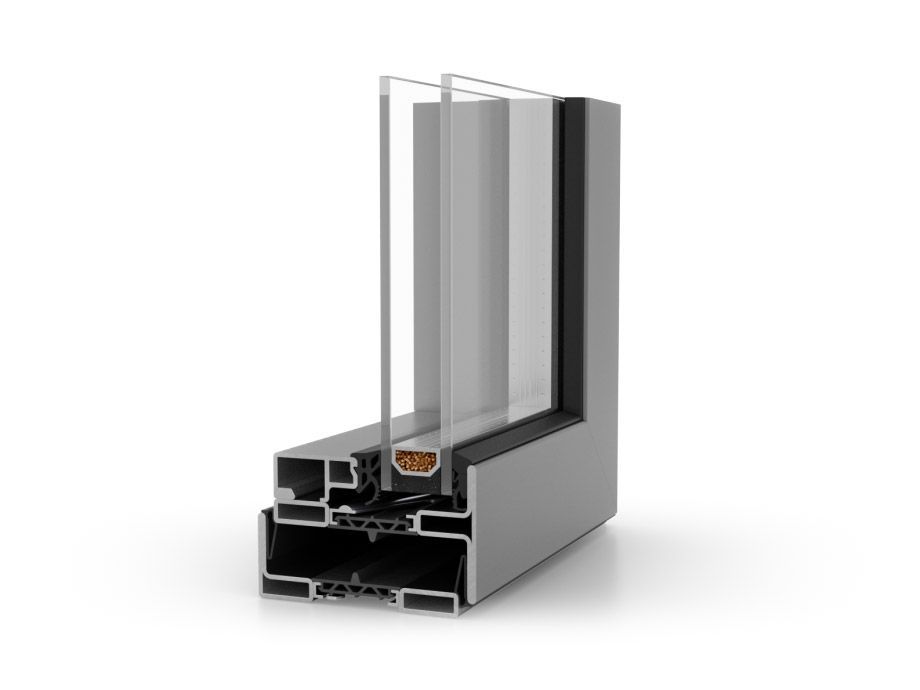

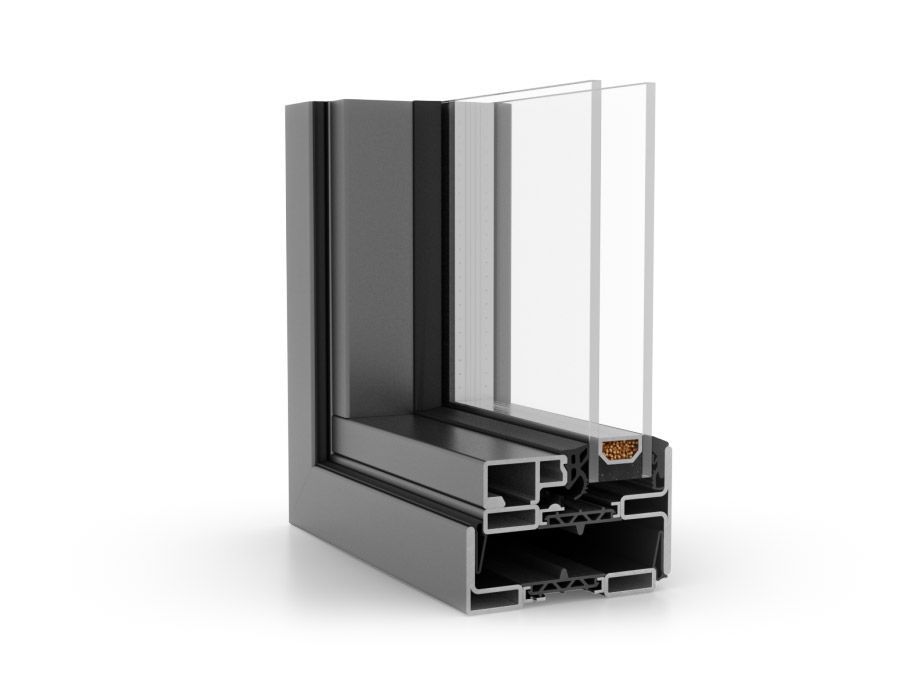

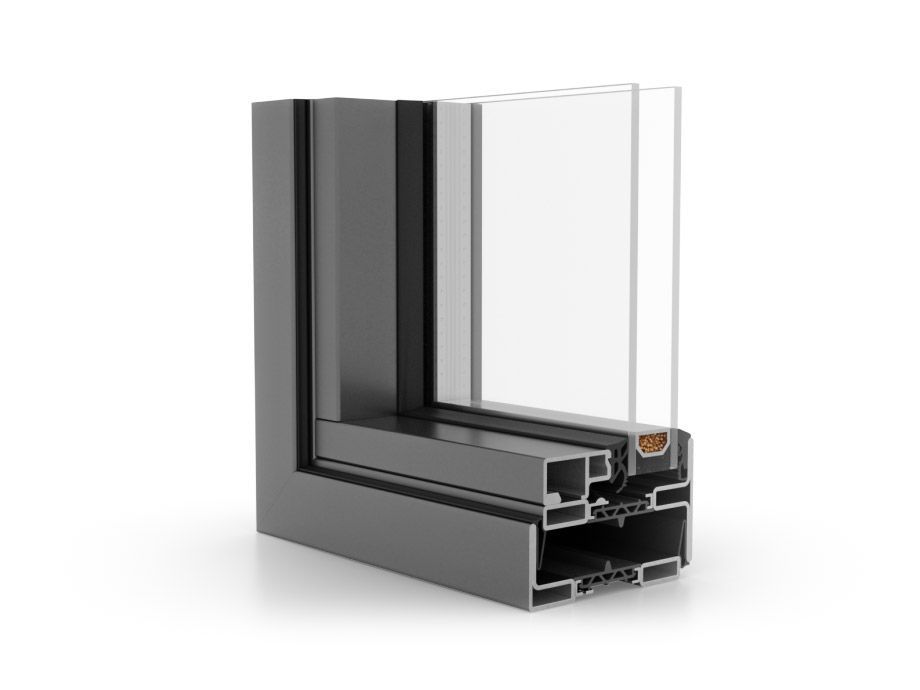

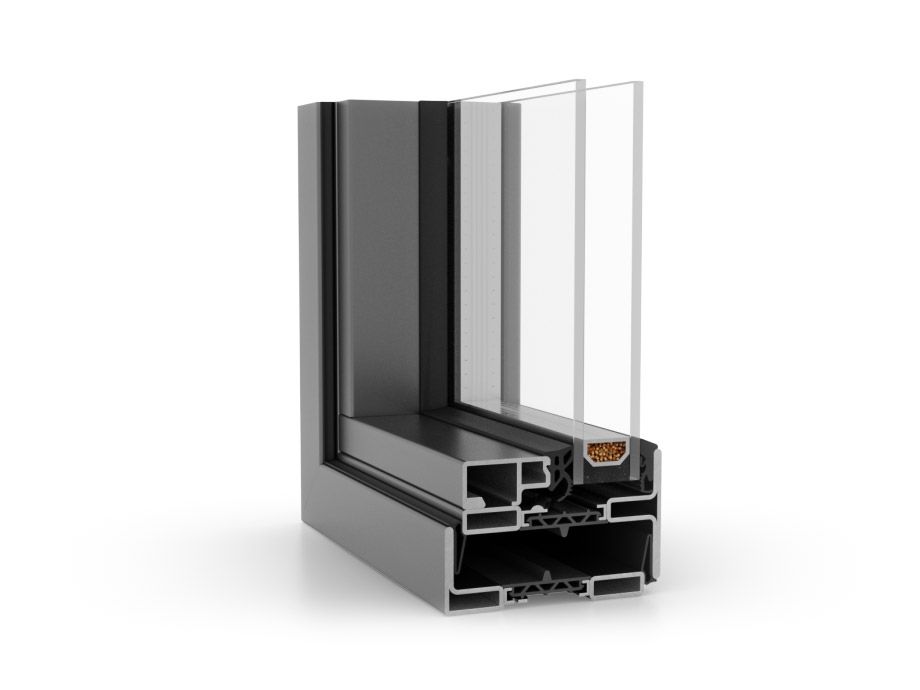

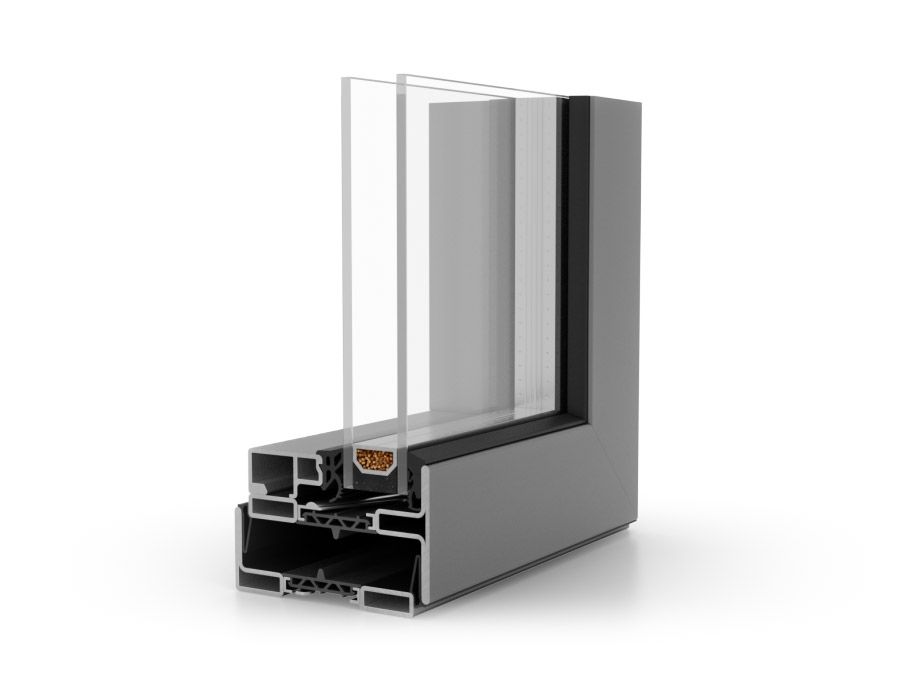

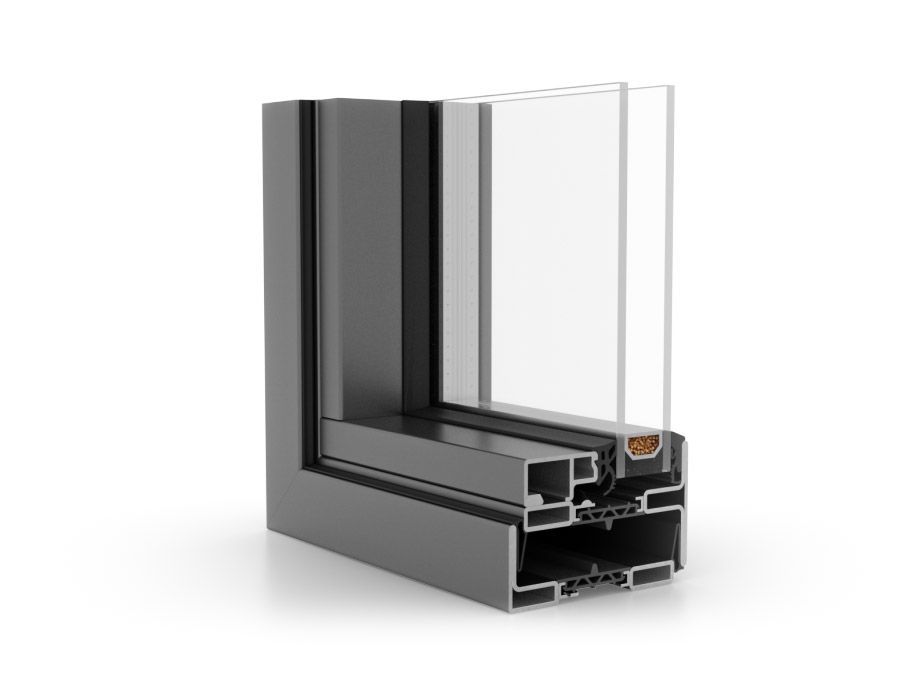

Unico XS Casement is a system of steel windows that open outwards. In the top hung version, fine adjustment of the sash position is possible.
The windows are made of galvanized steel. The welded joints have been ground and polished which increases their aesthetic value. The system uses hidden fittings that do not disturb their appearance. The profiles can be powder coated in any color from the RAL palette.

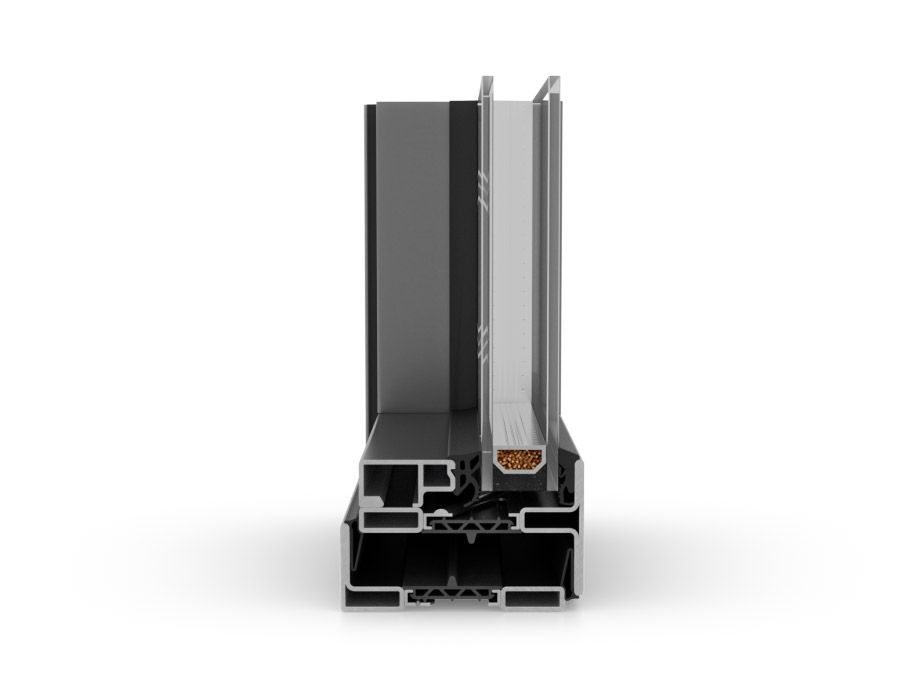

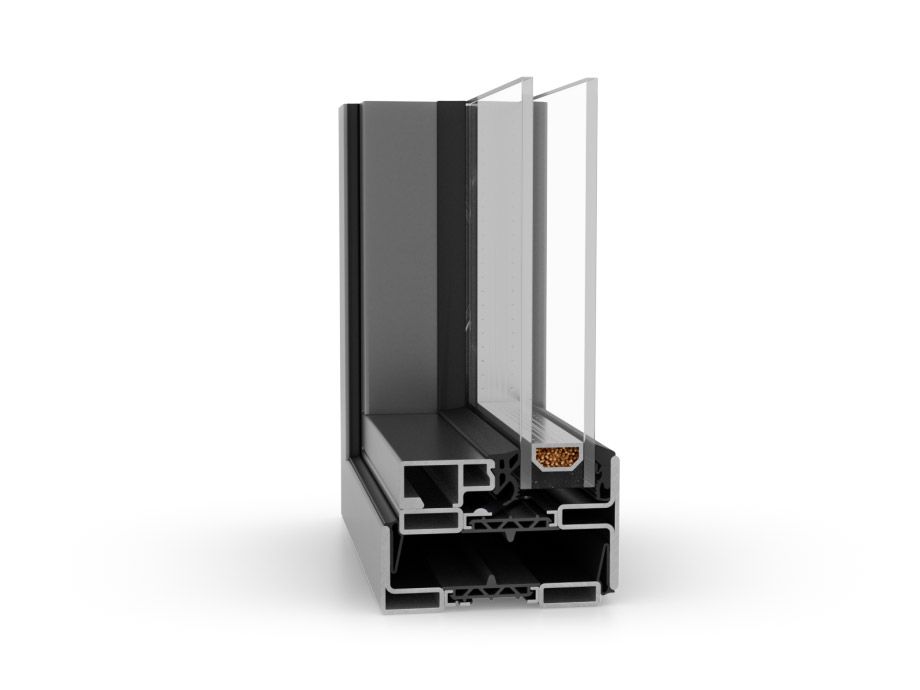

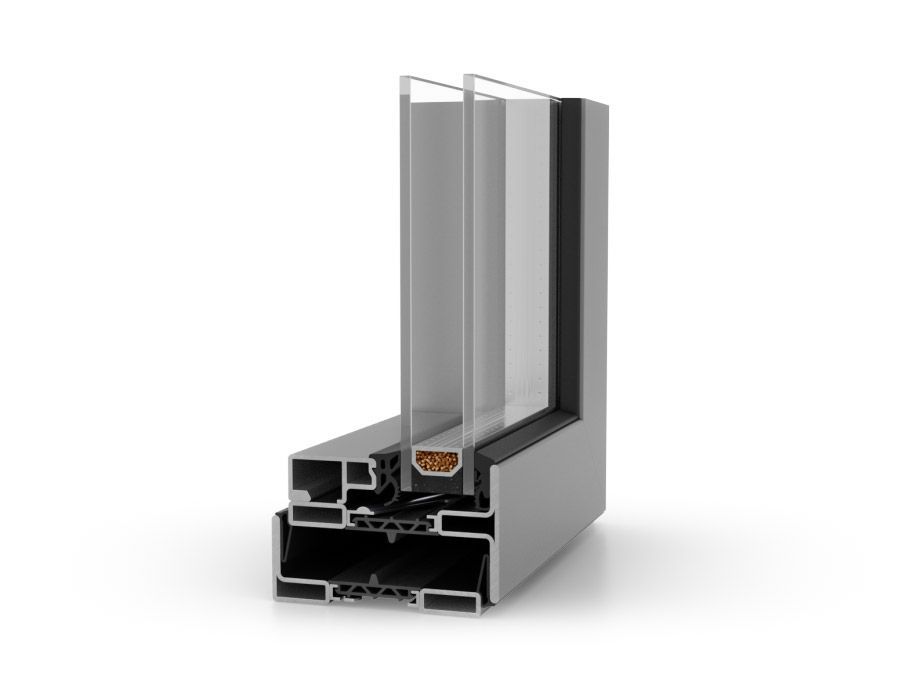

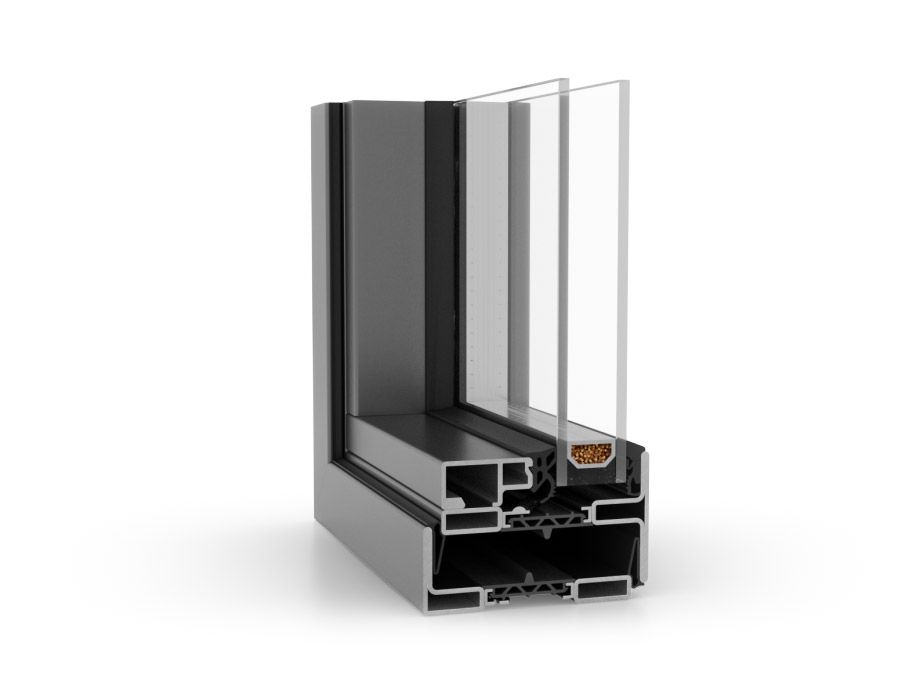

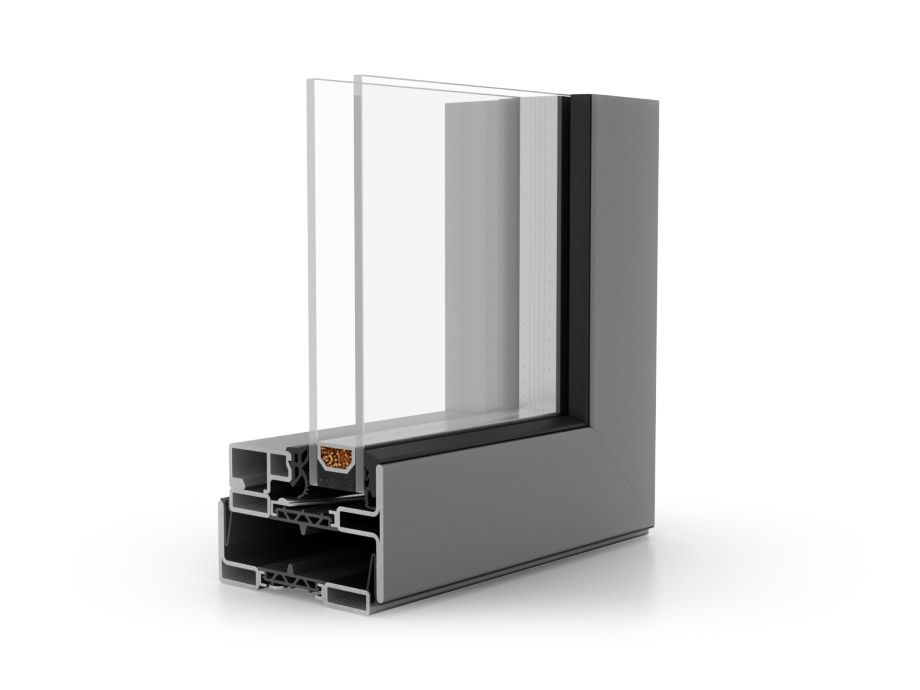

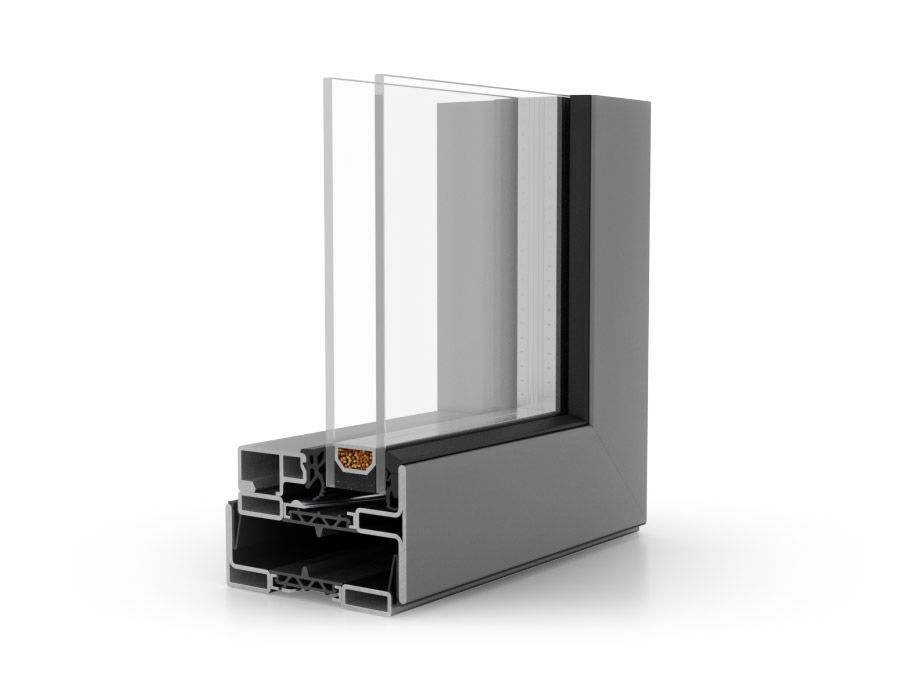

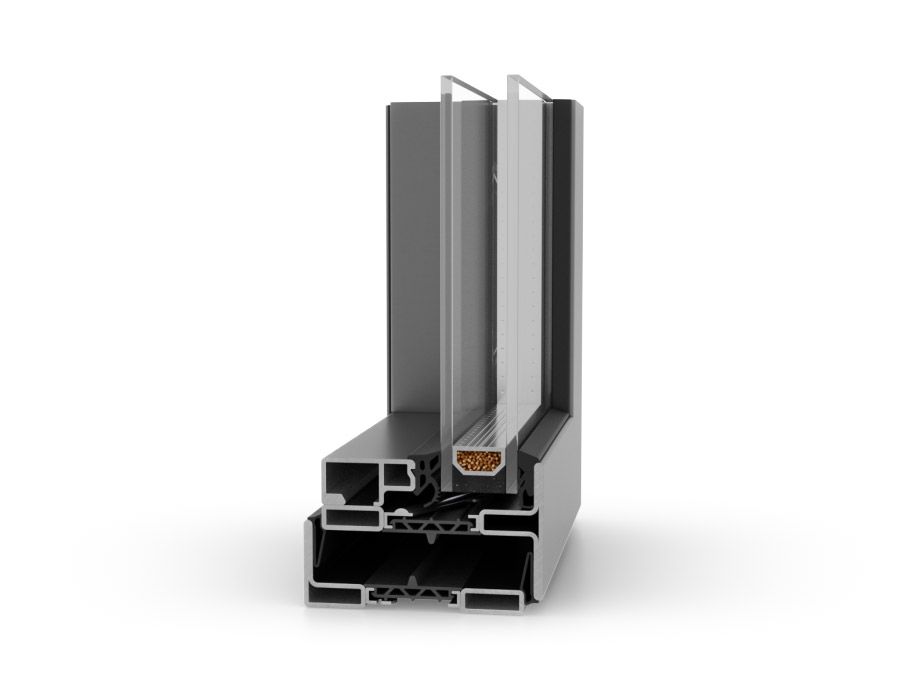

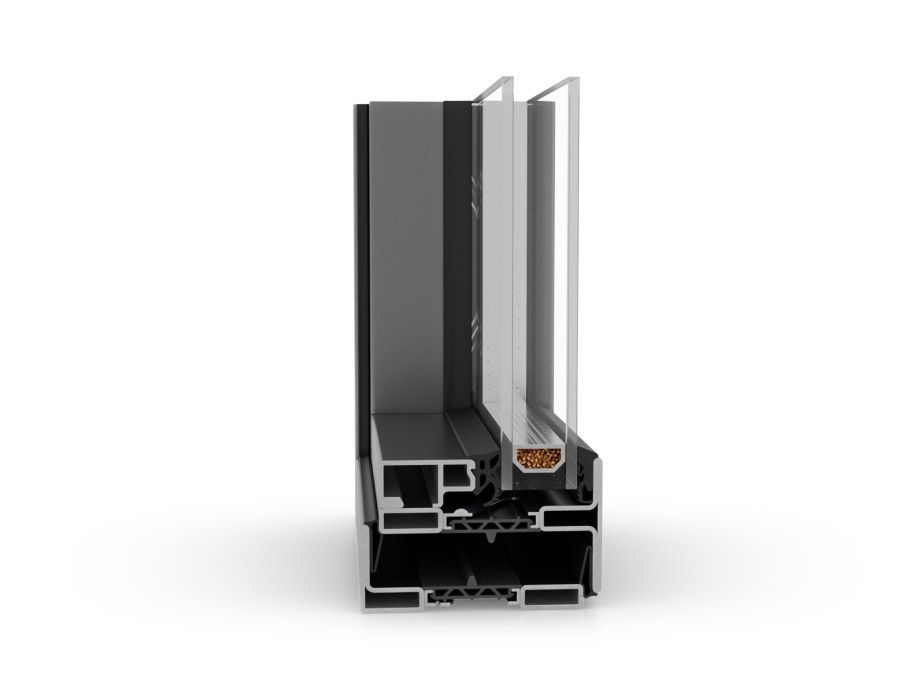

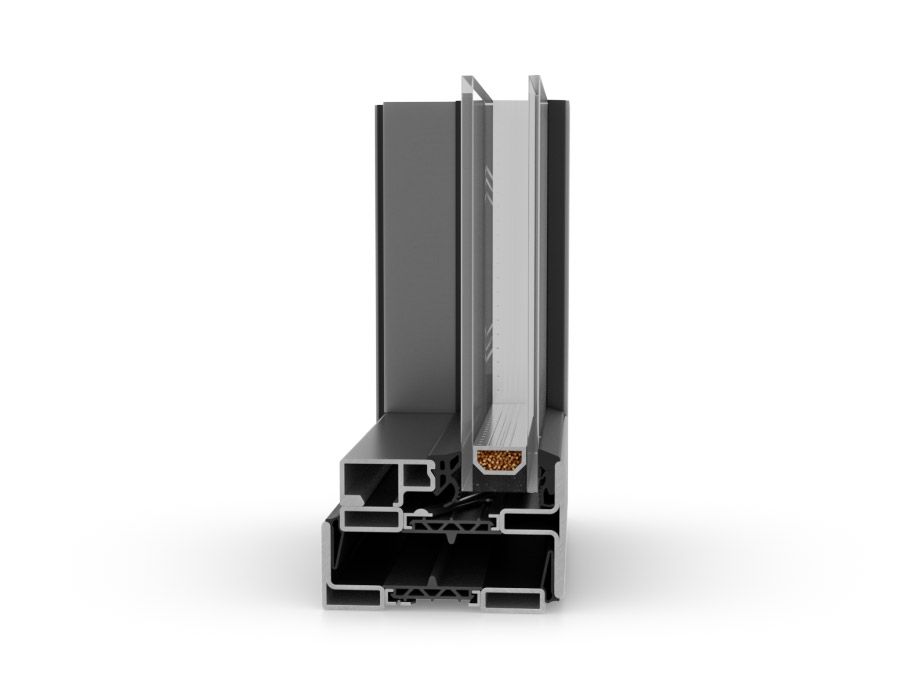

The thermal parameters of Unico XS Casement are due to two-chamber profiles with a stainless steel thermal break which additionally stabilizes the structure. The tightness of the windows is guaranteed by the use of age-resistant, two-component EDPM synthetic rubber gaskets.
Glass Options
Double Glazing
Single-chamber construction of insulated glass package with thermal insulation.
Triple Glazing
Dual-chamber construction of insulated glass package with thermal insulation.
Quadruple Glazing
Tiple-chamber construction of insulated glass package with thermal insulation.
Avalable Colors
RAL7 Color Chart Range
Aluminium outer shell are available in a multitude of colour options through a painting technique called Powder Coating, which provides a long lasting attractive finish.
