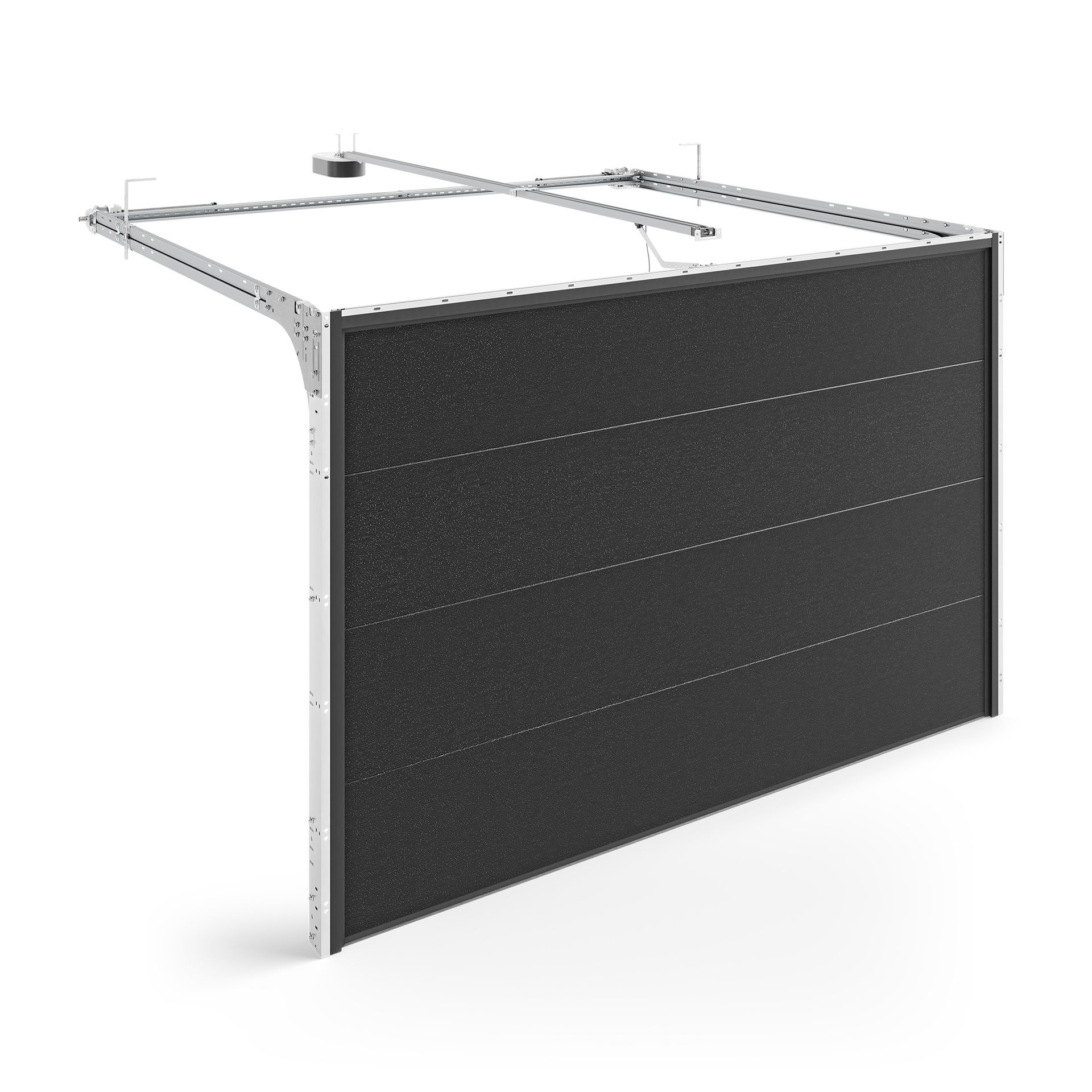

INFINITI R SECTIONAL GARAGE DOORS
Made of the best components. INFINITI sectional doors are durable and ensure safety in every home. Thanks to a wide range of accessories, it is possible to adapt them to many arrangements.
Door system with torsion springs at the rear
The location of the torsion springs in the rear part of the door allows it to be installed in the garage opening with a lower lintel. In this case, a headroom of 90 mm (120 mm in the case of an electric drive) is sufficient. Maximum load capacity up to approximately 165 kg.
- maximum weight: 165kg
minimum dimensions of jambs: 85mm
minimum dimensions of the lintel: 120mm
- we offer panels with a smooth external surface, woodgrain structure with low and high embossing (varnished according to a rich RAL palette) or veneered
- torsion springs located in the rear part of the gate allow it to be mounted to the garage opening with a lower lintel
5500mm
maximum width
3000mm
maximum height
12.5m²
maximum covered surfice
SECTIONAL GARAGE DOOR PACKAGES
INFINITI Quiet
door movement is smooth and quiet
aesthetics and functionality at the highest level
door harmonizes with the rest of joinery, which is equipped with safety elements
comfort for the most demanding customers minimized noise of the door operation
INFINITI Safe
optimal safety for all household members and your car
ensures operation during longer power cuts
door harmonizes with the rest of joinery, which is equipped with safety elements
designed in - anti burglary security
INFINITI Premium
includes quiet and safe accessories
satisfies the values of design and aesthetics
SECTIONAL GARAGE DOOR ADD ONS
Ornaments
- eye-catching inlays made of chrome-plated steel (Inox)
- available for all sectional garage doors
- decorative element used in All in One Design Verona, Torino and Firenze compositions
Service door
- doors available with a low or high threshold and as a right or left door
- door width: from 800 to 900 mm
- minimum service door height: 1850 mm
- minimum distance to the service door from the edge of the sectional garage door: 500mm
Glazing
- glazing in chrome-plated steel frames with double safety glass 33.2
- options for inserted glass round, square, diamond and rectangular shape
- glazing in galvanised steel frames with a single pane
- glazing in varnished PVC frames filled with transparent polycarbonate
SECTIONAL GARAGE DOOR EMBOSSING PATTERNS
Sectional garage doors are available in several embossed patterns. The offered variants allow you to emphasize the interesting style of the product and suit the tastes of people who value modern solutions.
No embossing
Single embossing
Narrow embossing
HOW TO MESURE SECTIONAL GARAGE DOOR OPENING?
Measuring for the garage door should be done when the garage is fully finished. Of course that’s not always possible. When the door doesn’t fill oening, then it is possible to use renovation steel, painted to the color of the door. Steel will perfectly cover any clearances between the door and a building, creating a consistent frame.
SECTIONAL GARAGE DOOR PANEL STRUCTURES
Woodgrain
Deep Matt
Smooth
RAL COLOUR OPTIONS
RAL7 Color Chart Range
Sectional garage doors are available in a multitude of colour options through a painting technique called Powder Coating, which provides a long lasting attractive finish.
