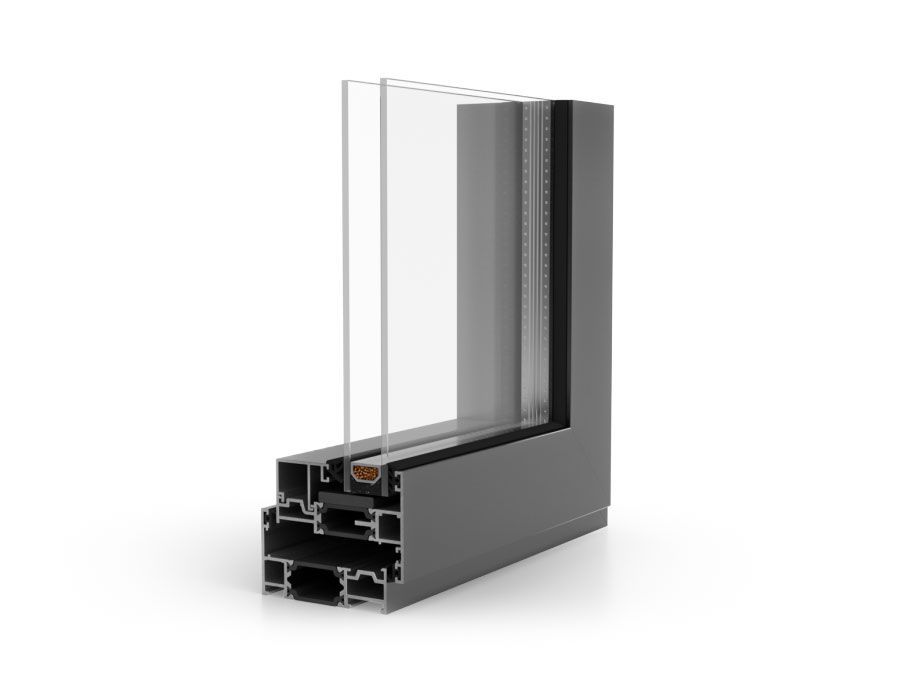

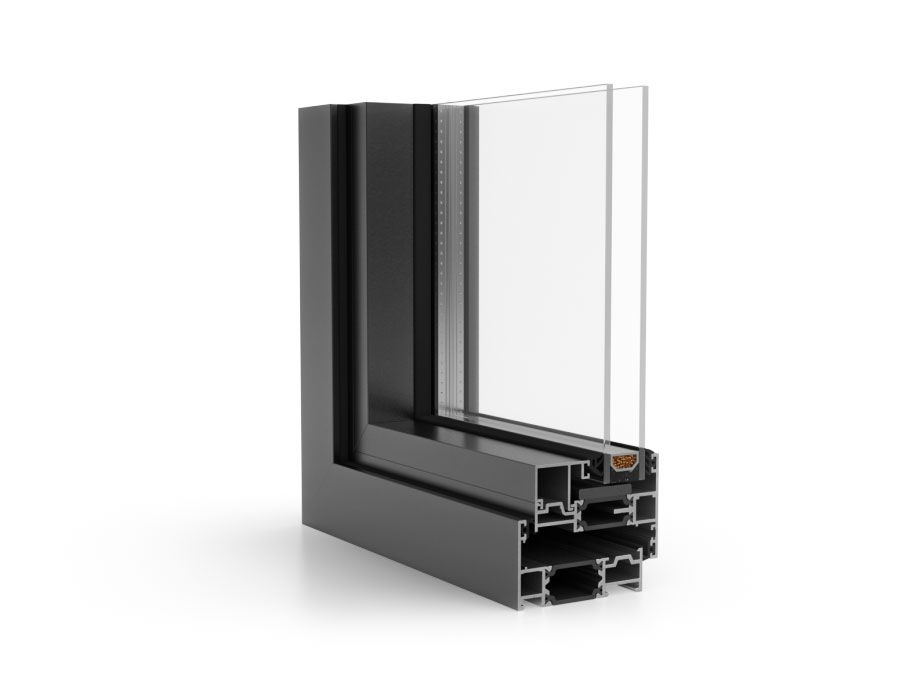

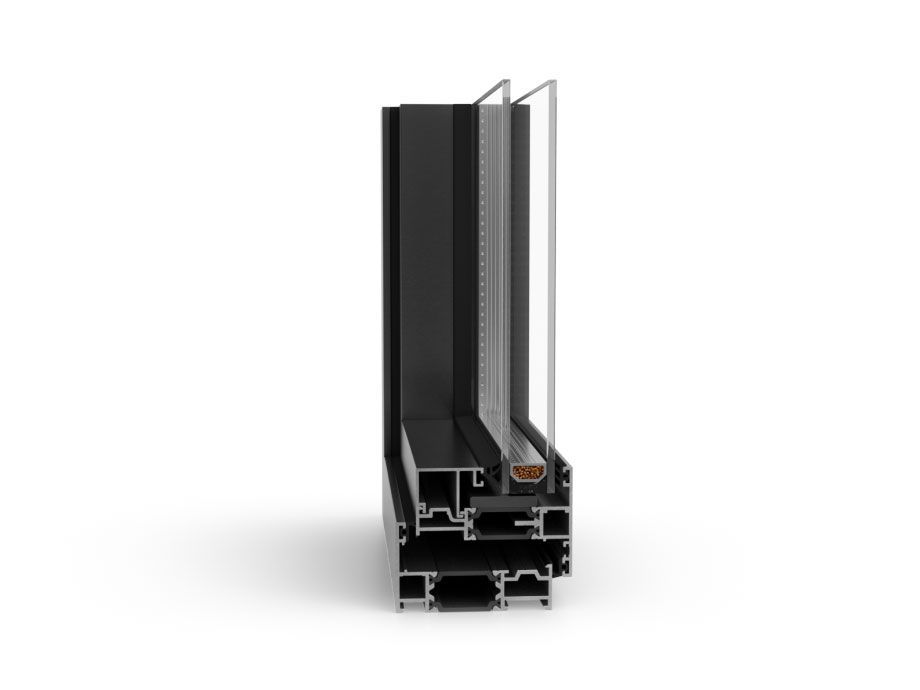

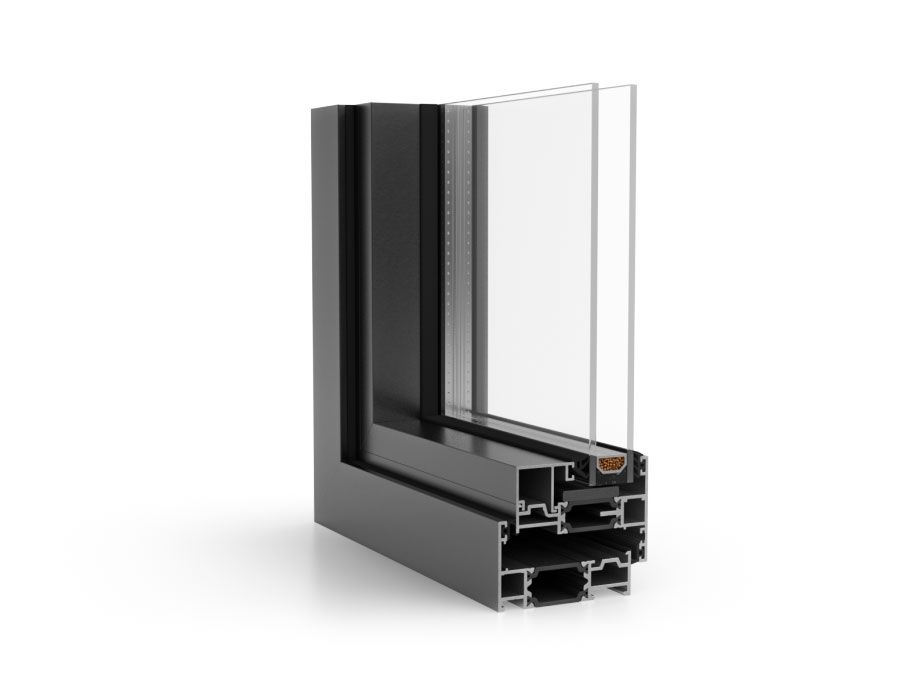

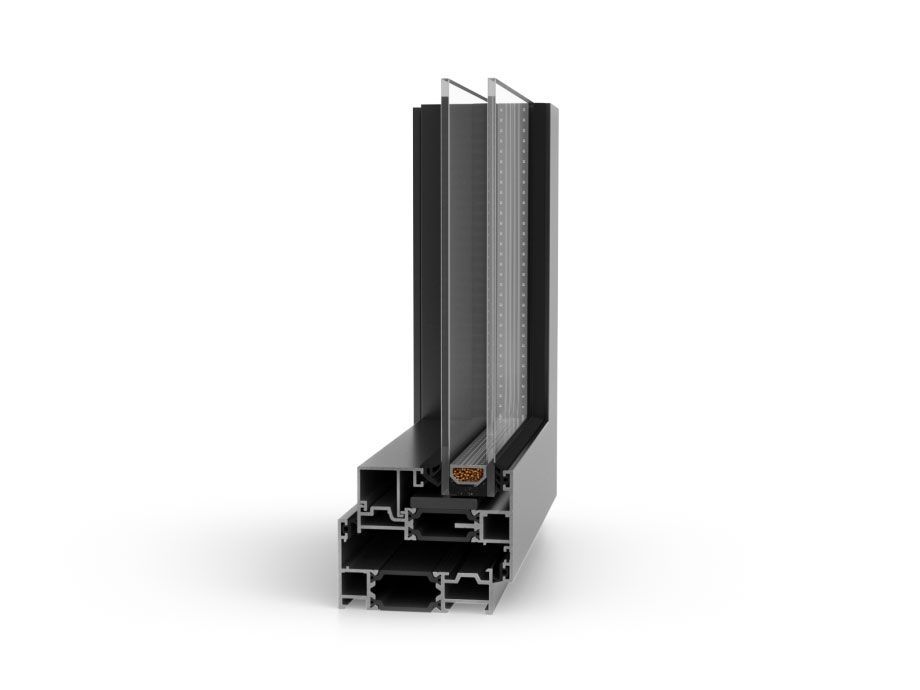

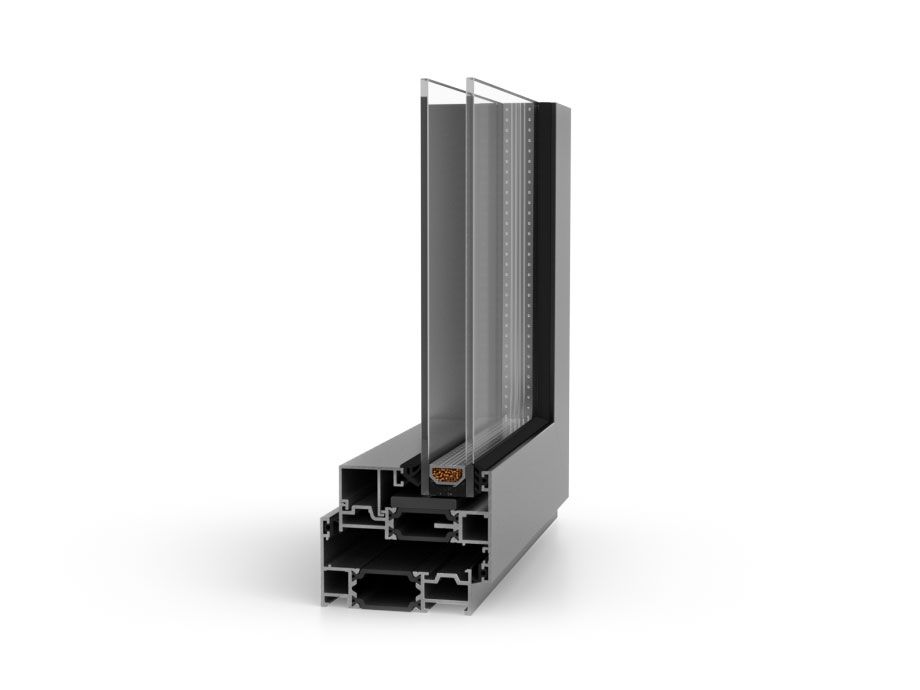

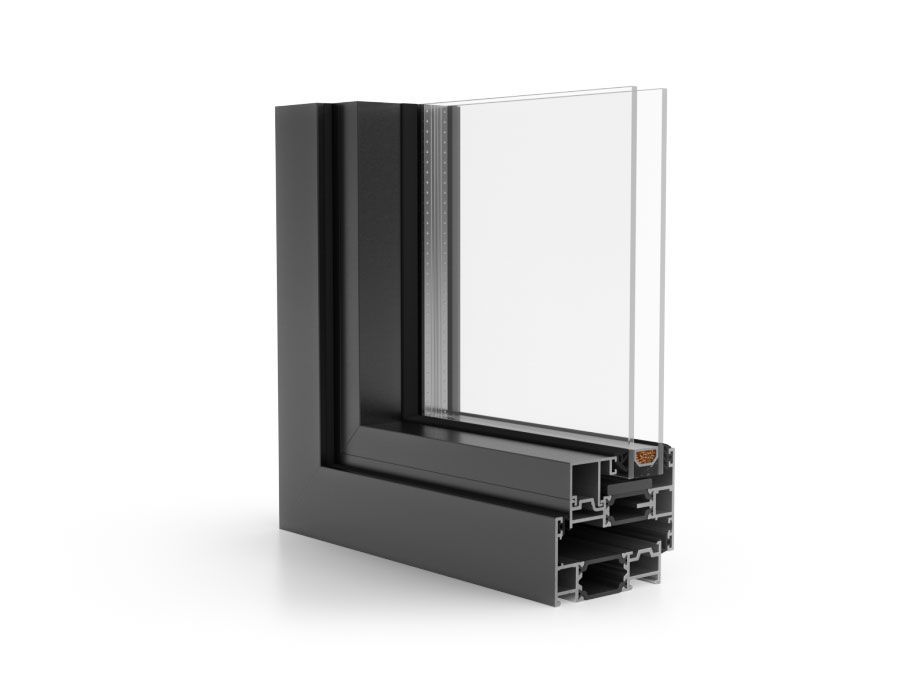

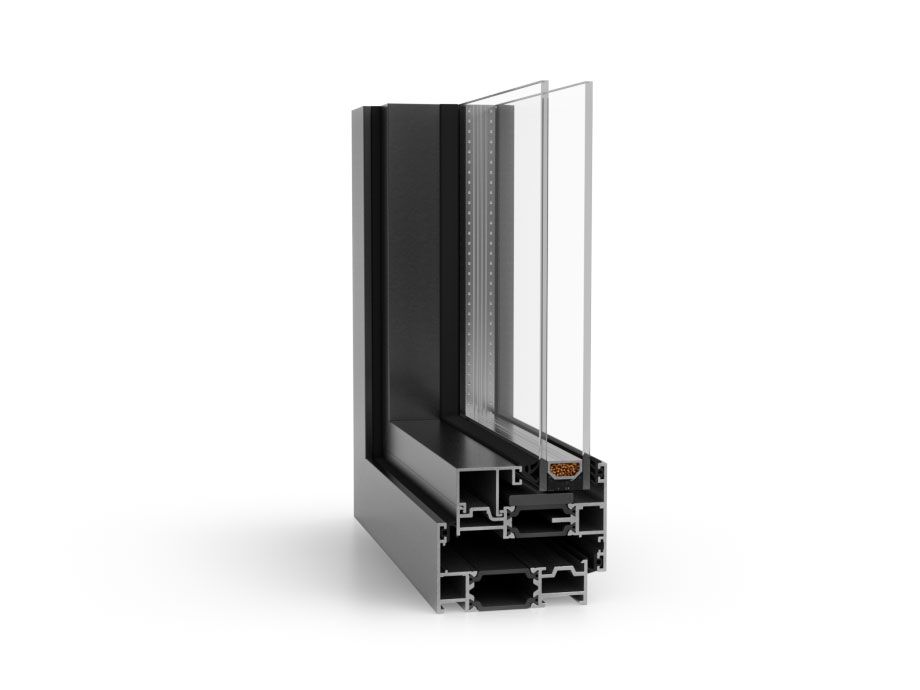

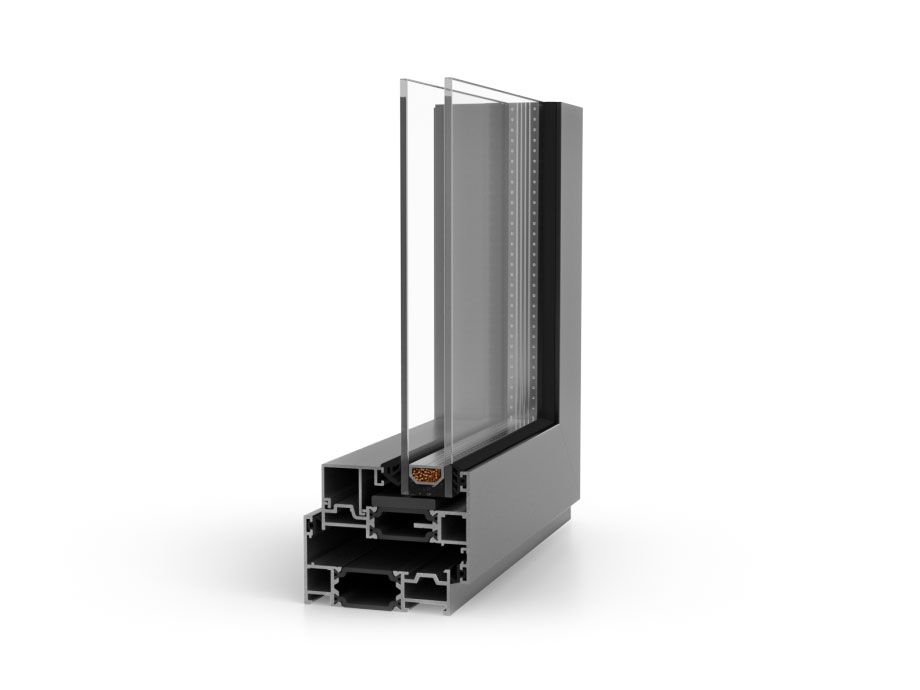

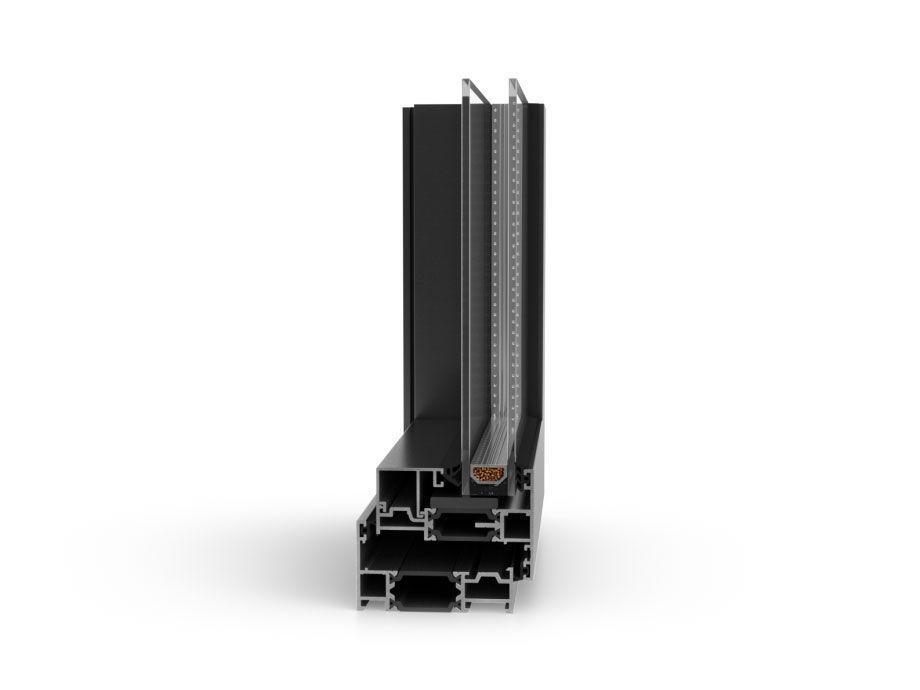

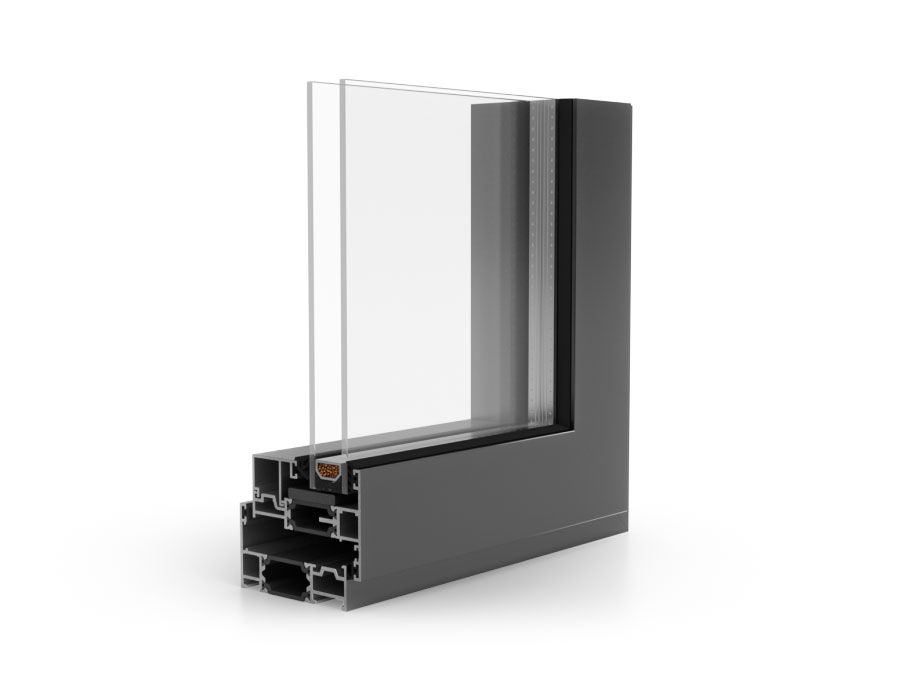

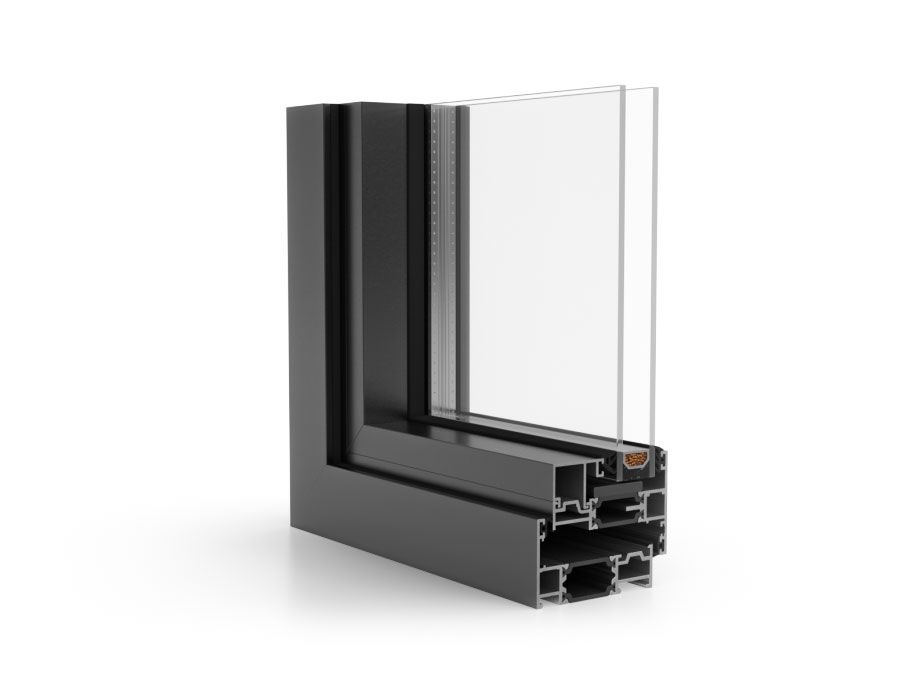

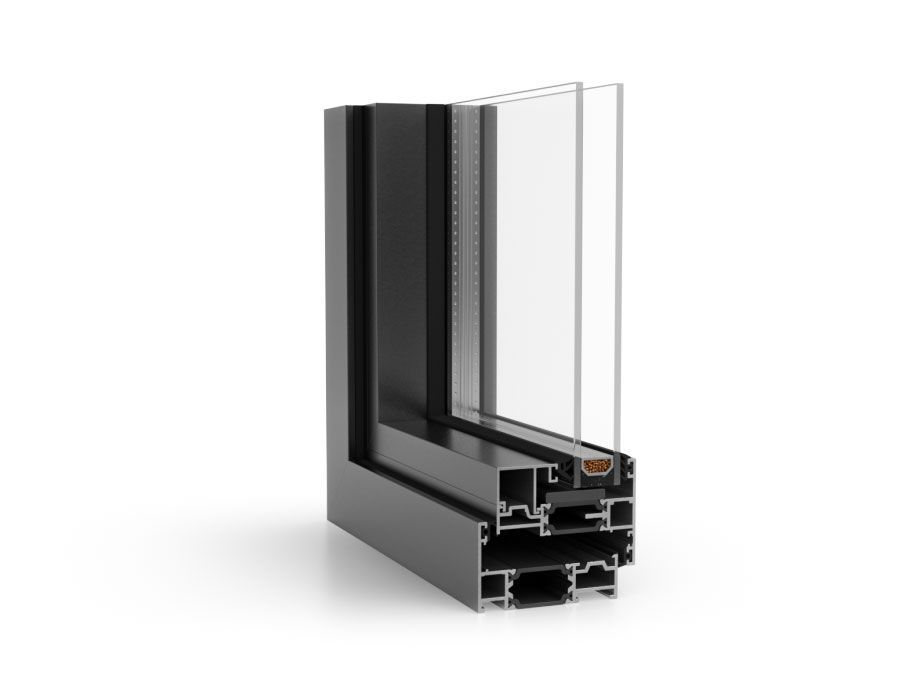

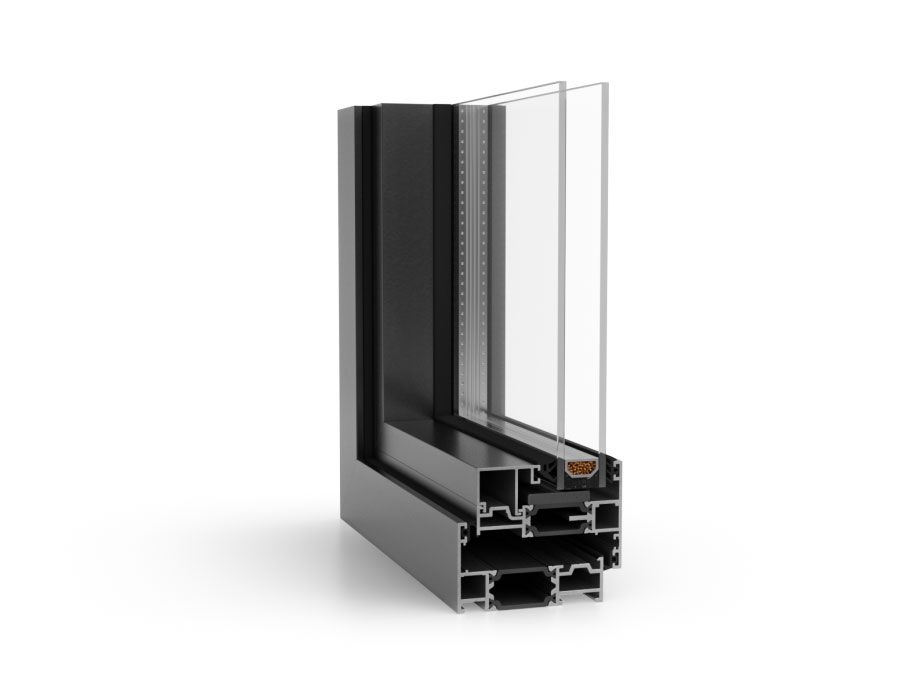

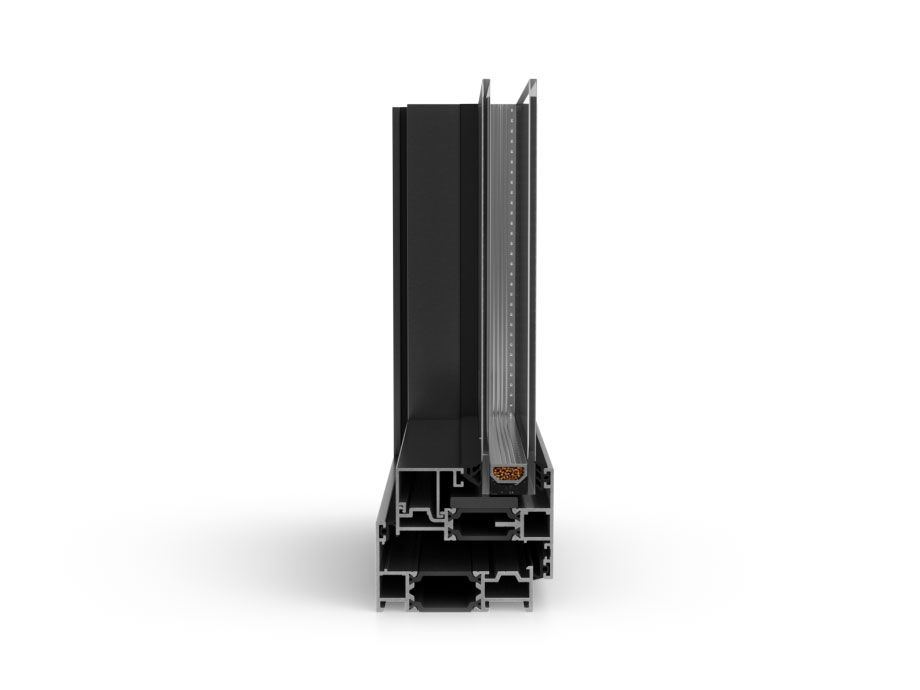

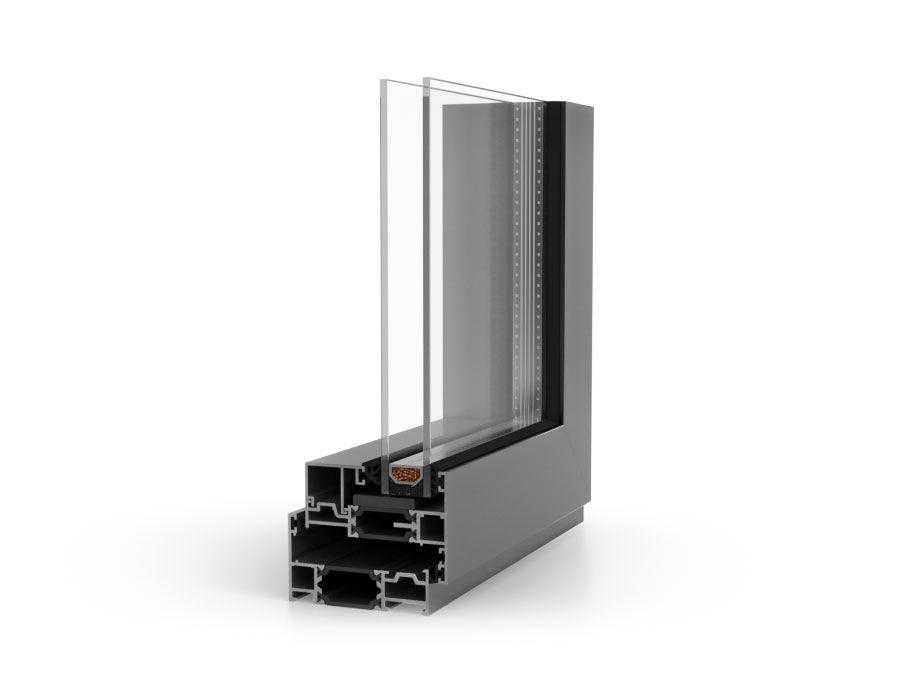

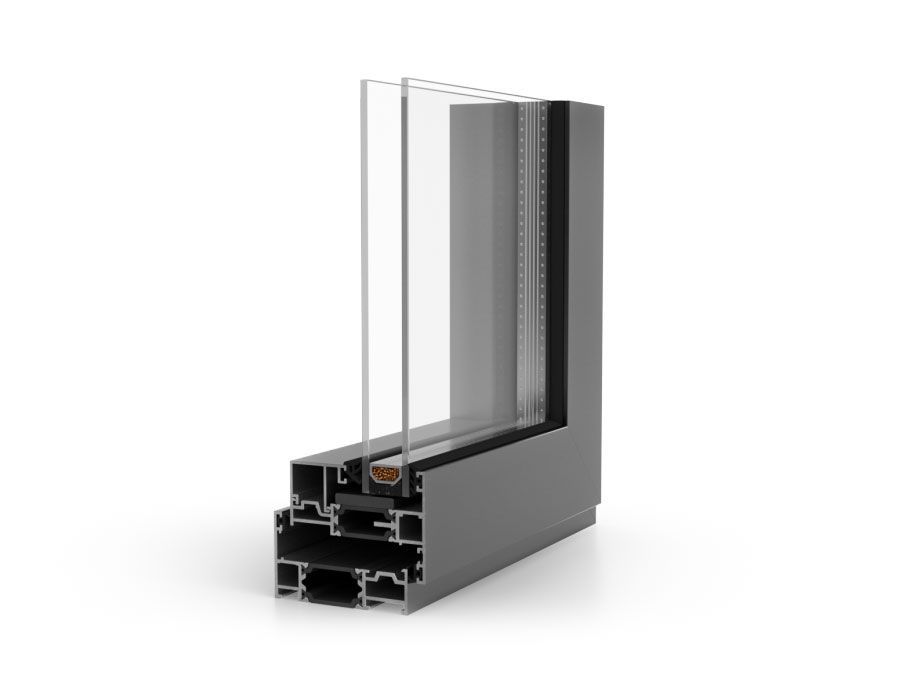

ALUMINIUM CASEMENT WINDOW CORTIZO
- Installation depth 70 mm.
- Maximum glazing thickness: 44 mm.
- Top Hung – outward tilt window.
- Side Hung – outward tilt window.
- Scissor fittings.
- RAL K7 colour palette.
Uw 1.2
Uw for Ug = 0.5
2
Gaskets
3
Chambers
As one of the best, versatile and affordable aluminium window systems, Casement Window Cortizo comes in a wide range of design options, with contemporary slim frames, to help you find the style that best suits your property.
Casement Window Cortizo is an outward-opening aluminium window system. It is an attractively priced development of the Spanish Cortizo range of products, valued for their modern design, durability and convenient operation. The windows are available with scissor fittings in the casement (Side Hung) and tilting (Top Hung) variants.
The standard Slim sash offers narrow, aesthetically attractive profiles, with the Slim EXT variant glazed from the outside. The HD (Heavy Duty - wide) sashes are their grander variation that enables the creation of taller and wider windows. Their size positively influences the amount of light reaching the interiors, the aesthetics of the profiles and the design possibilities. The maximum dimensions of an HD window are as much as 1800 x 1800 mm with a sash weight of 100 kg. A Steel variant is also available to match the industrial style.
The anodising process provides the profiles of Cortizo casement windows with their strength and modern visuals. They are available in all RAL colours. It is possible to apply two different colours on the inside and outside of the window.
WINDOW HANDLES
Standard Window Handle
Classic Window Handle
MoonLine Window Handle
GLASS OPTIONS
Double Glazing
Single-chamber construction of insulated glass package with thermal insulation and thermal transmittance in a range of:
1,0 ≤ Ug ≤ 2,9 W/(m2 * K)
Triple Glazing
Dual-chamber construction of insulated glass package with thermal insulation and thermal transmittance in a range of:
0,4 ≤ Ug ≤ 0,9 W/(m2 * K)
Quadruple Glazing
Triple-chamber construction of insulated glass package with thermal insulation and thermal transmittance in a range of:
Ug = 0.7-0.3 W/(m2 * K)
AVAILABLE COLORS
Colour options
Available in a multitude of colour options through a painting technique called Powder Coating, which provides a long lasting attractive finish.
