uPVC LIFT AND SLIDE DOOR EVOLUTIONDRIVE 82
- installation depth 194 mm
- glazing up to 52 mm
- low threshold available
- constructions up to 6 meters wide
- very good statics
- soundproofing 42 dB
Uw 0.84
Uw for Ug = 0.5
2+2
Gaskets
5
Chambers
1-2
Guide Rail

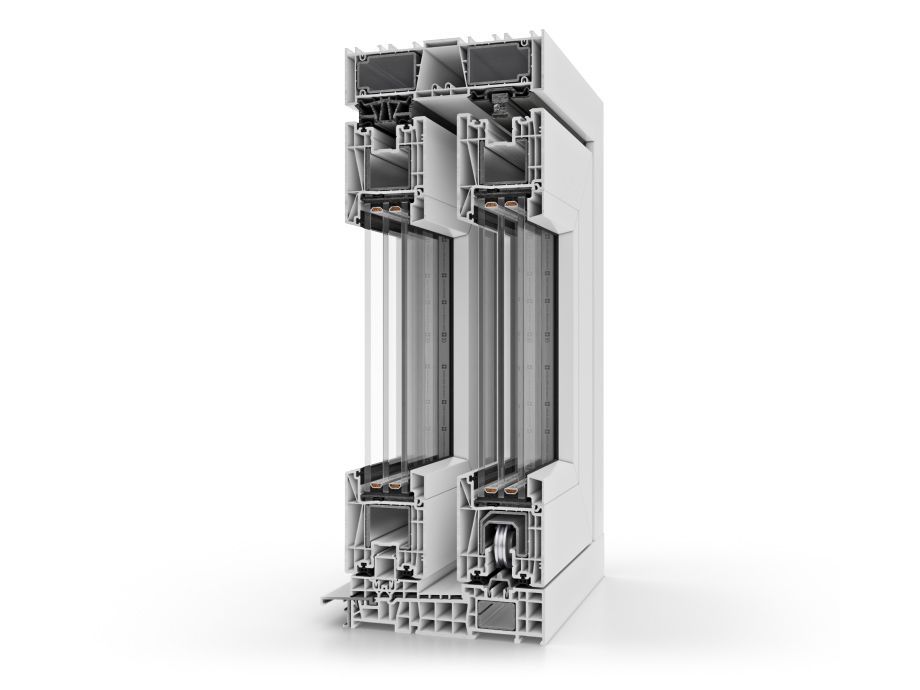

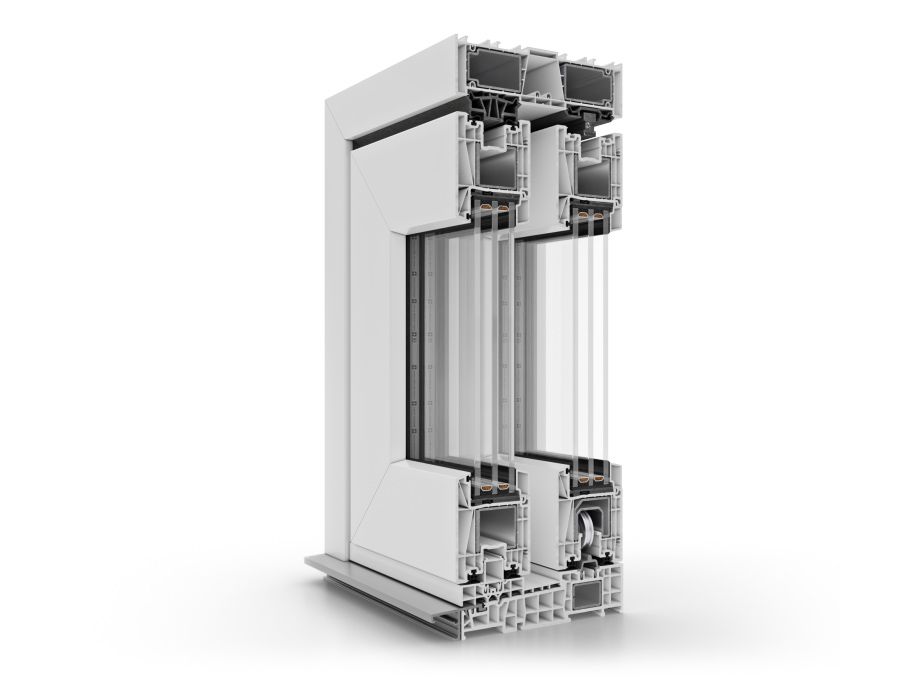

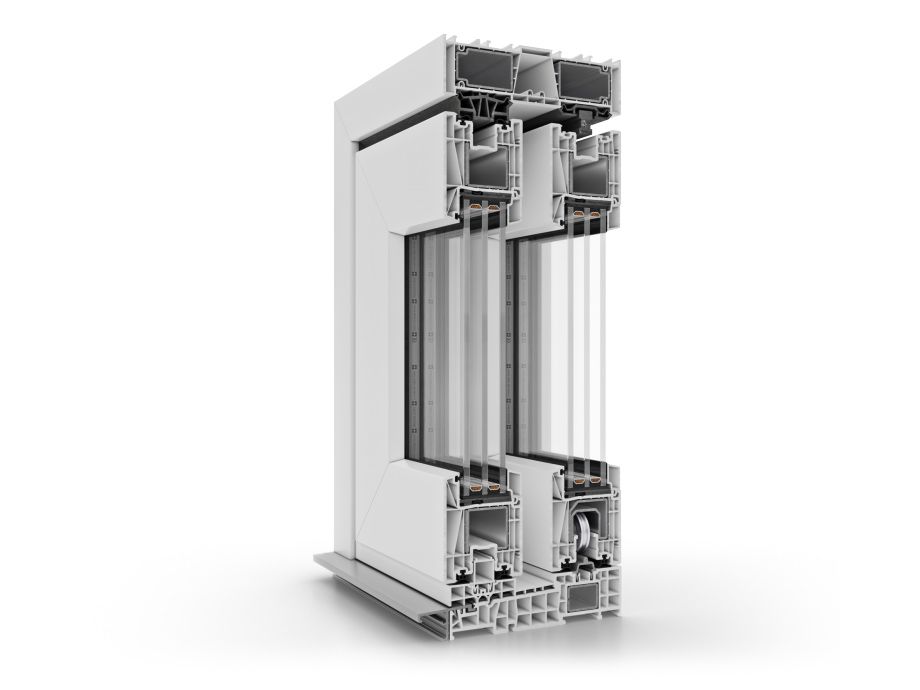

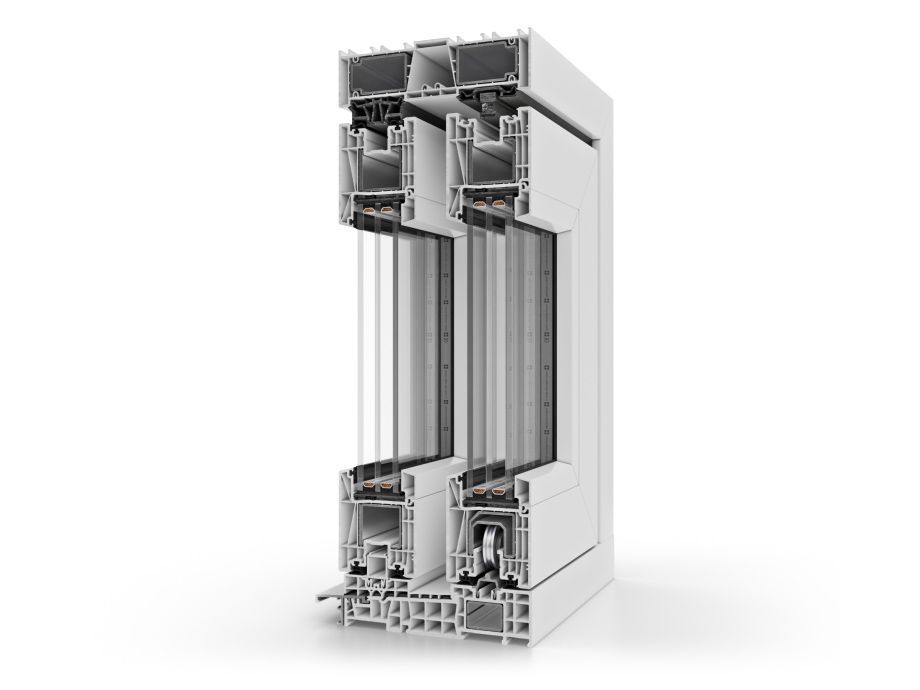

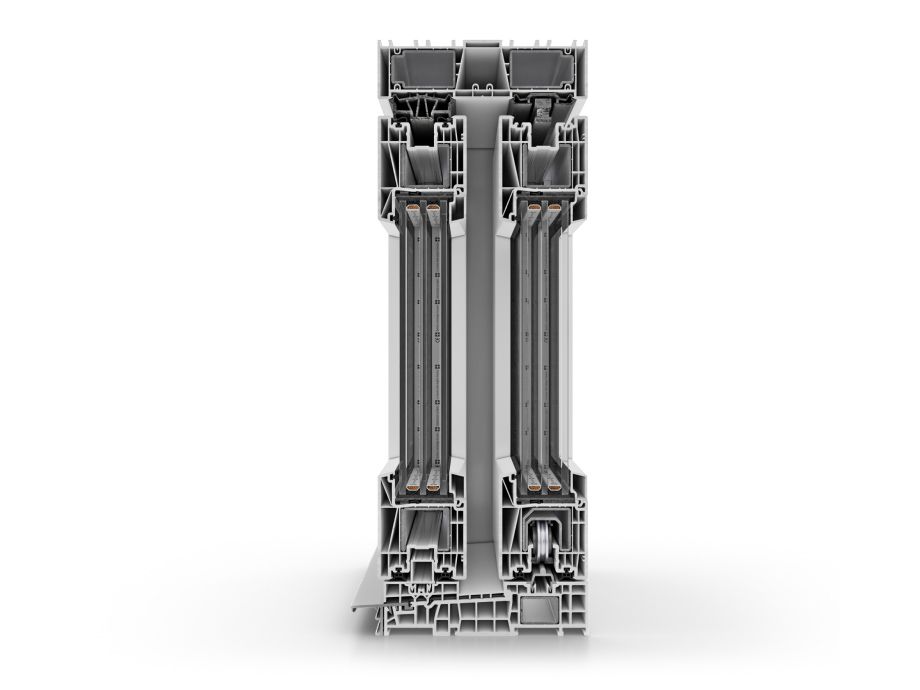

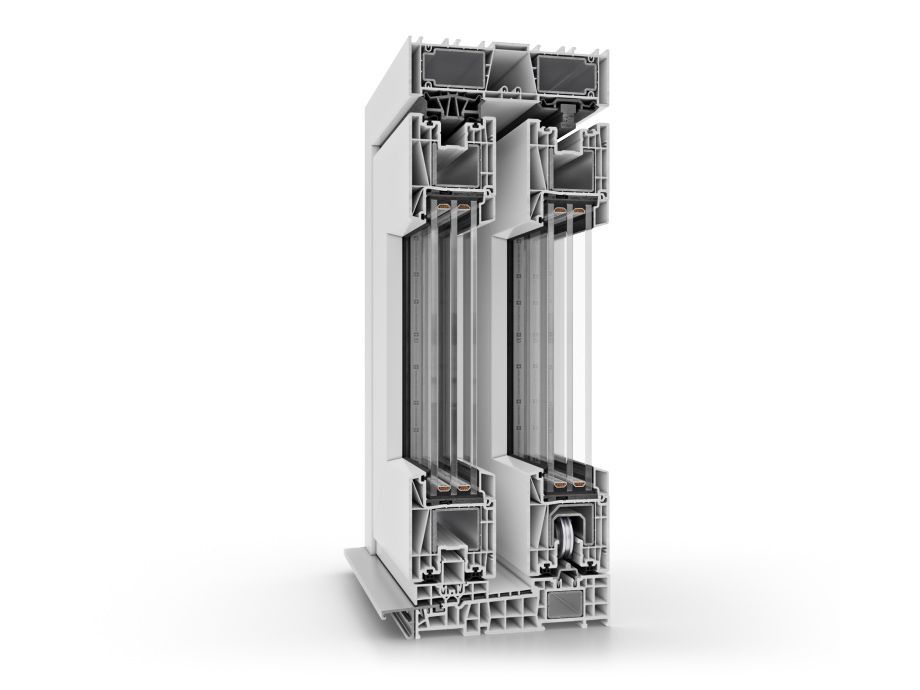

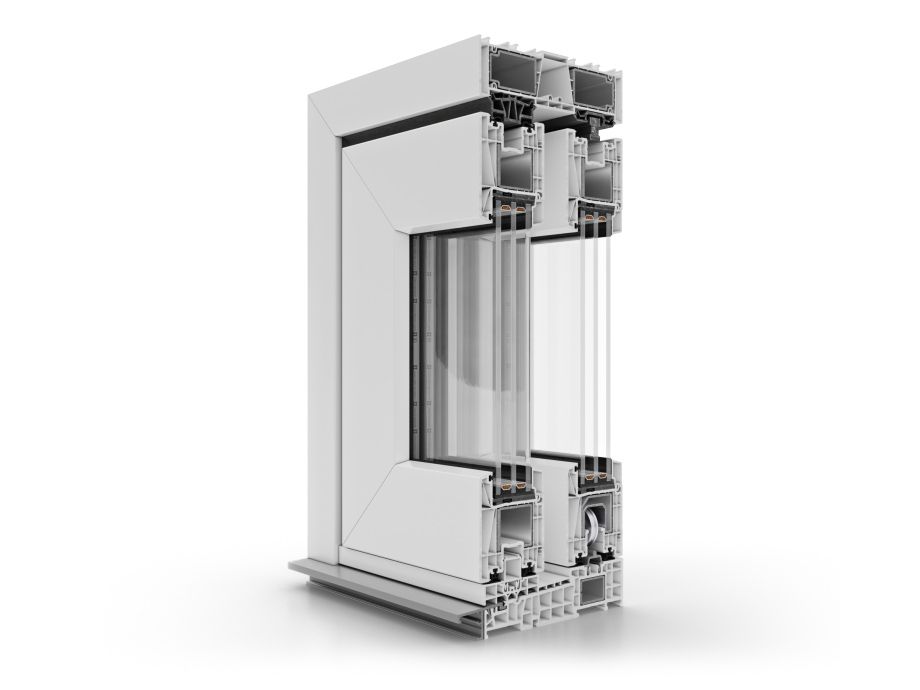

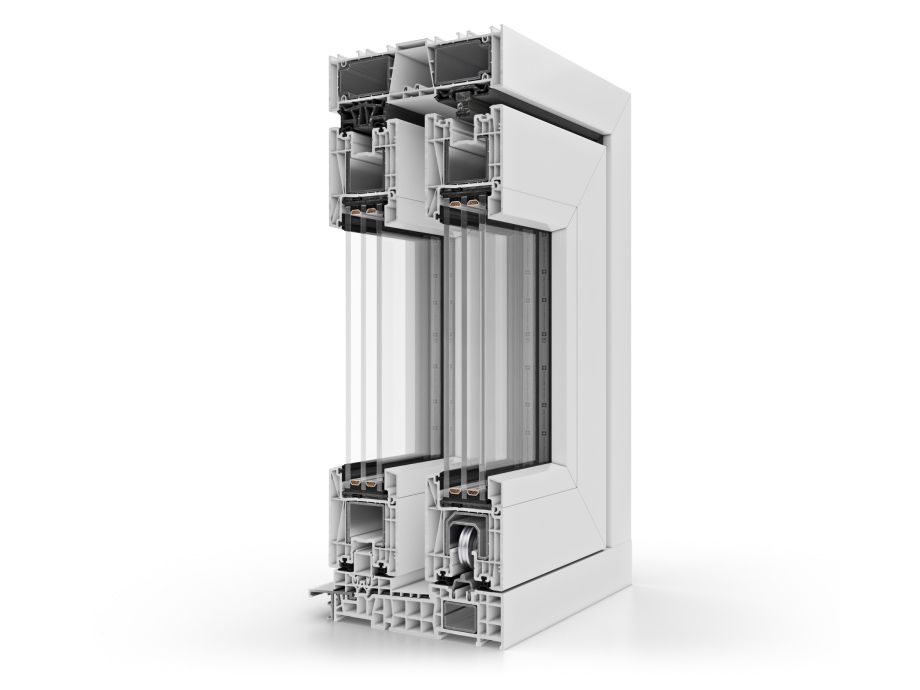

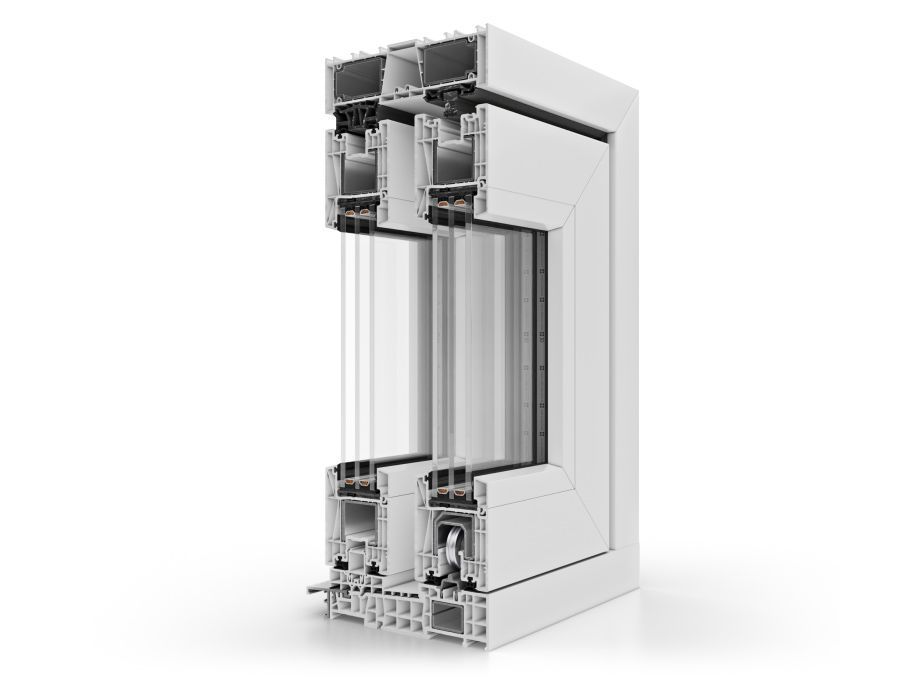

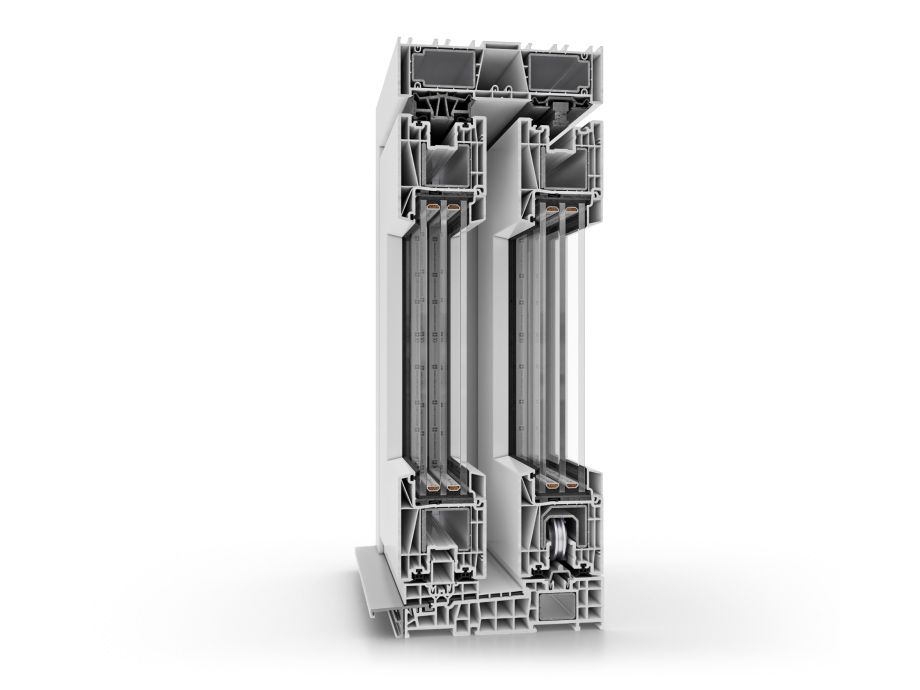

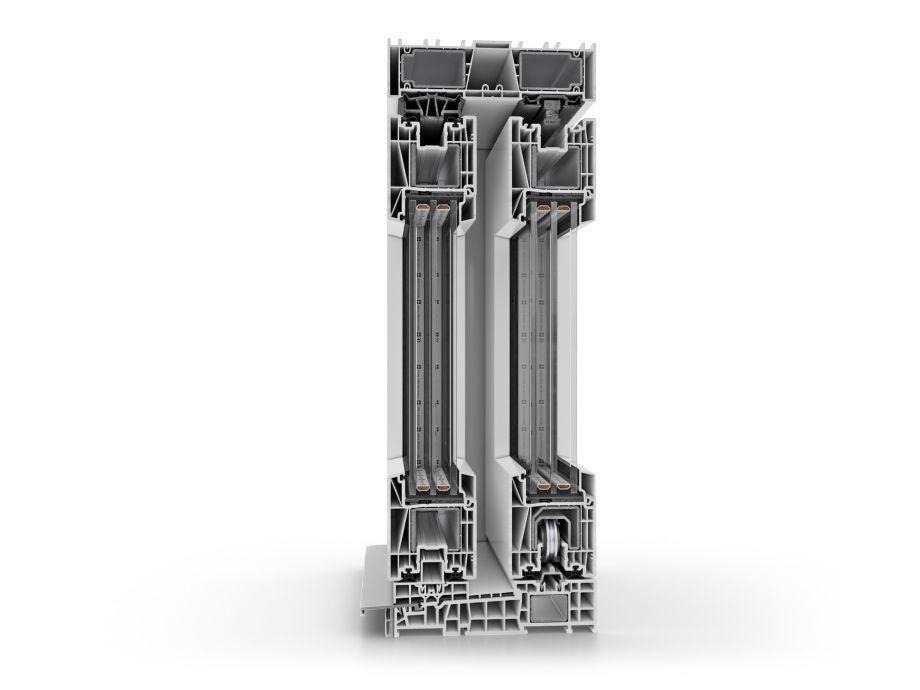

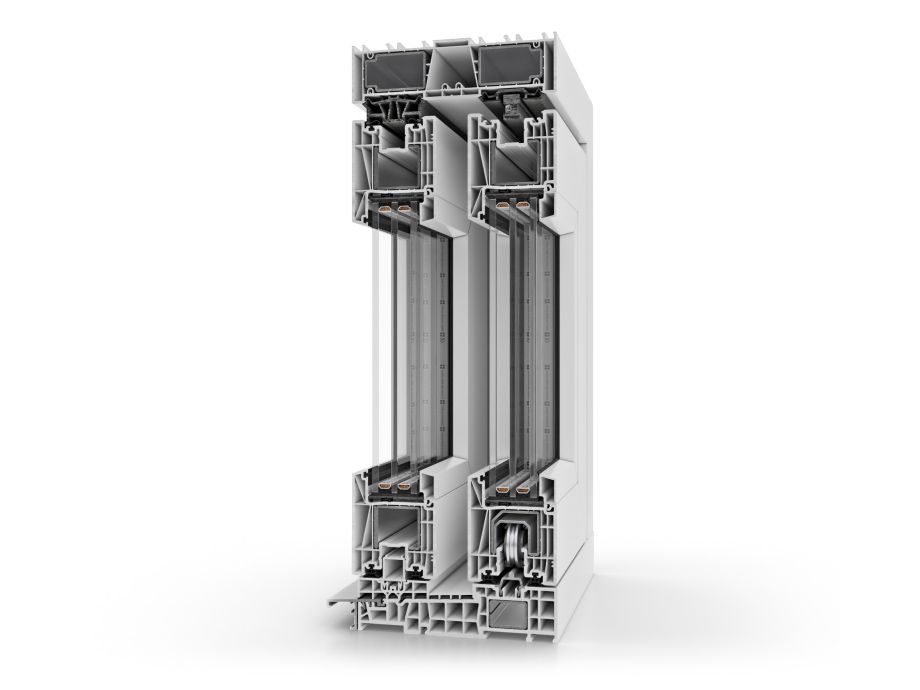

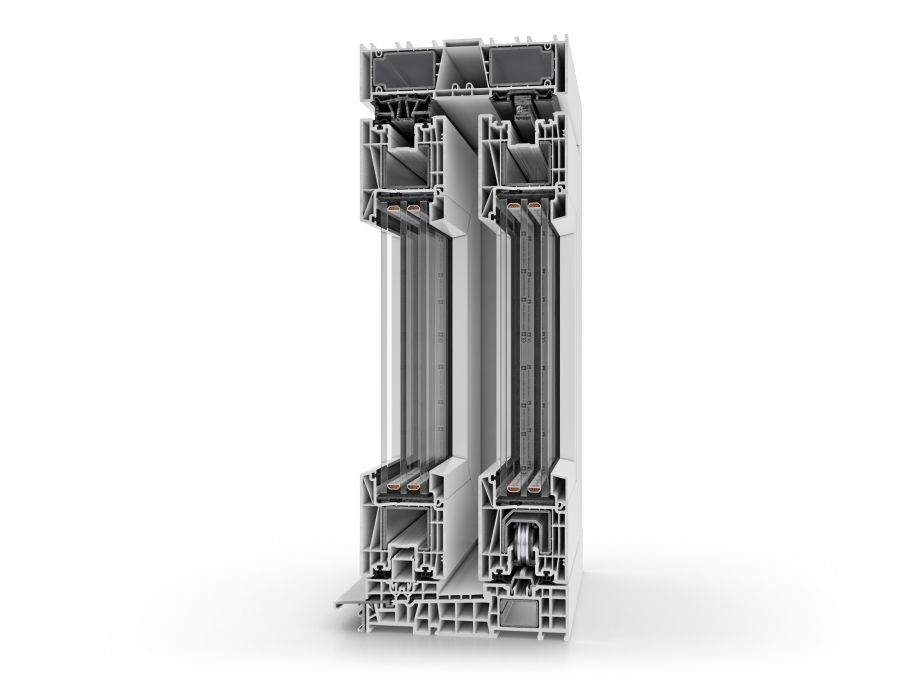

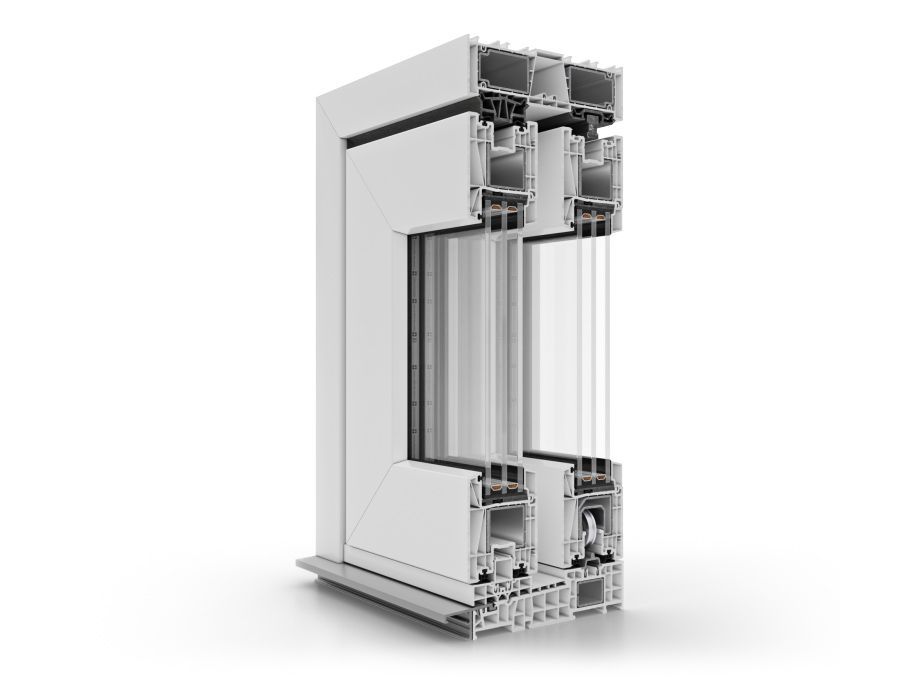

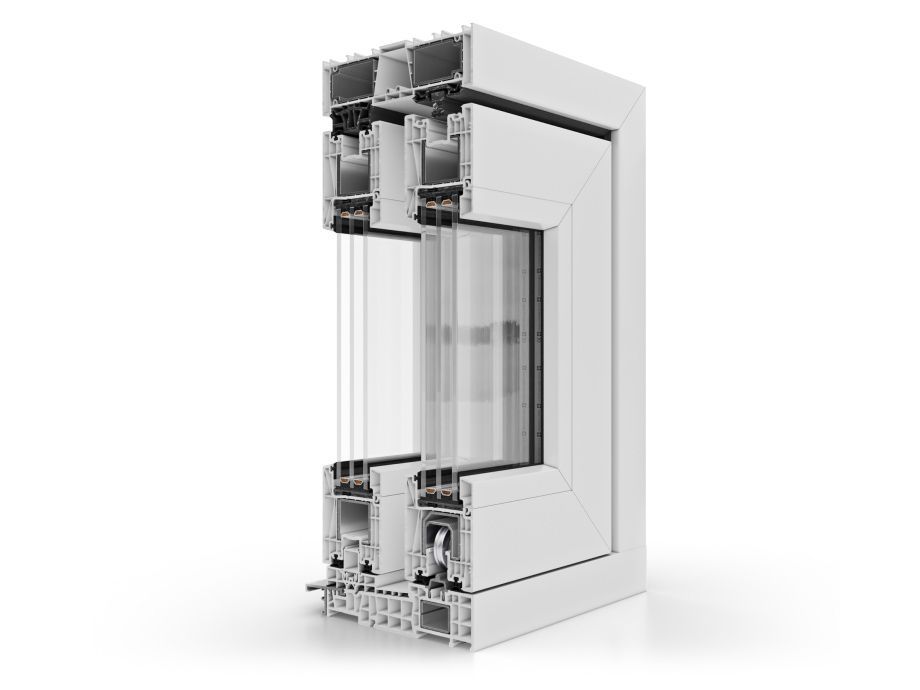

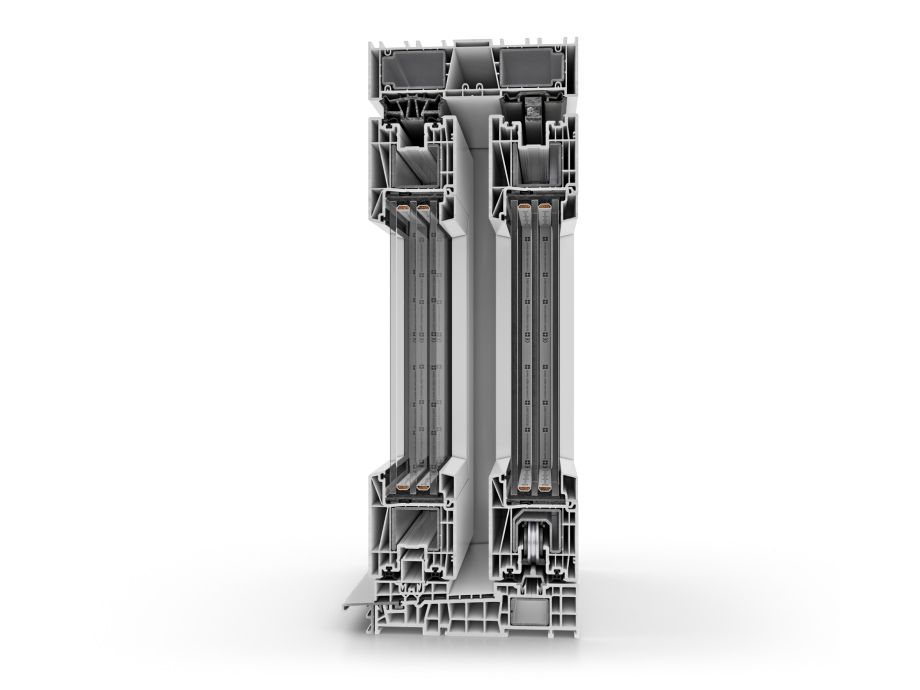

SALAMANDER HST EVOLUTION DRIVE
Profile is dedicated for large-glazed, sliding door applications. HST offers innovative solution for offices, industrial facilities, modern residential buildings, etc. Design is based on a 194mm frame profile and a sash matching parameters of the Salamander BLUEVOLUTION 82.
LIGHTWEIGHT AND FUNCTIONALITY
The system moves on aluminium rail tracks. Design of the sliding mechanism allows heavy doors (weight up to 400 kg) to be moved without any effort. The advantage of a sliding door is that they can be installed with no extra space required to open the door leaf as they just slide along each other.
STATE-OF-THE-ART SOLUTIONS
The HST Salamander system with frame installation depth of 194 mm and leaf depth of 76 mm can be used to construct doors with a height up to 2.5 m and a width up to 6 m. Its universal design is a perfect fit in modern and demanding structures.
MADE-TO-MEASURE uPVC DOORS
Our clients can specify dimensions, colours number of sashes and additional profiles. Variety of technical solutions enable production of large dimension windows undertaking the most sophisticated custom orders even when ordering just one doors.
GLASS OPTIONS
Triple Glazing
Dual-chamber construction of insulated glass package with thermal insulation and thermal transmittance in a range of:
0,4 ≤ Ug ≤ 0,9 W/(m2 * K)
Quadruple Glazing
Triple-chamber construction of insulated glass package with thermal insulation and thermal transmittance in a range of:
Ug = 0.7-0.3 W/(m2 * K)
FOIL COLOURS
sal-03
sal-08
sal-11
sal-19
sal-21
sal-25
sal-26
sal-27
sal-30
sal-33
sal-37
sal-39
sal-42
sal-43
sal-50
sal-51
sal-52
sal-55
sal-59
sal-69
sal-71
sal-72
sal-73
sal-74
sal-78
sal-84
sal-87
sal-88
sal-90
sal-91
sal-92
sal-95
sal-96
sal-98
sal-107
sal-108
sal-109
sal-110
sal-111
sal-112
sal-113
sal-115
sal-116
