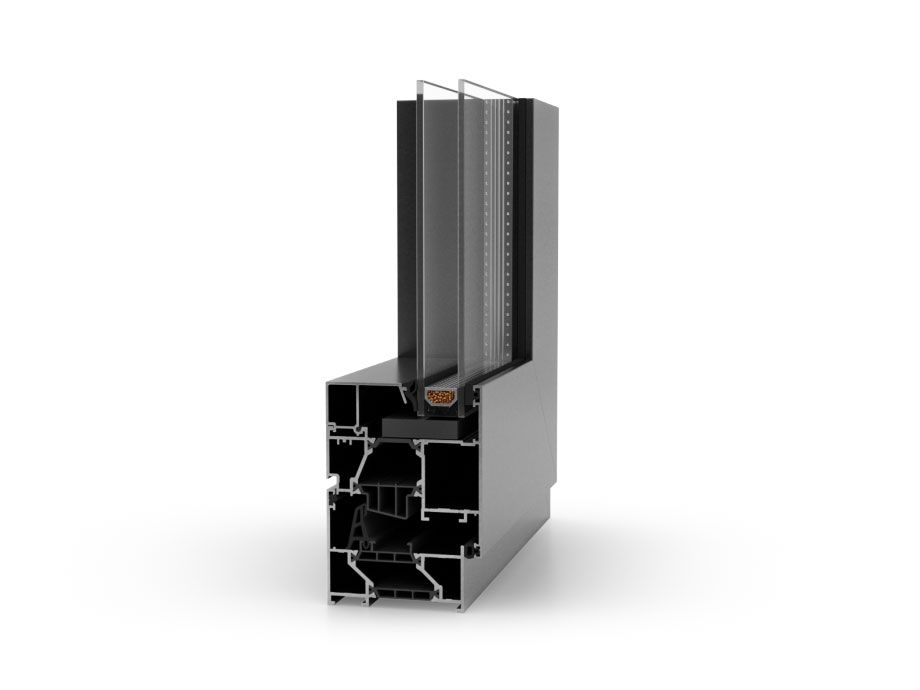

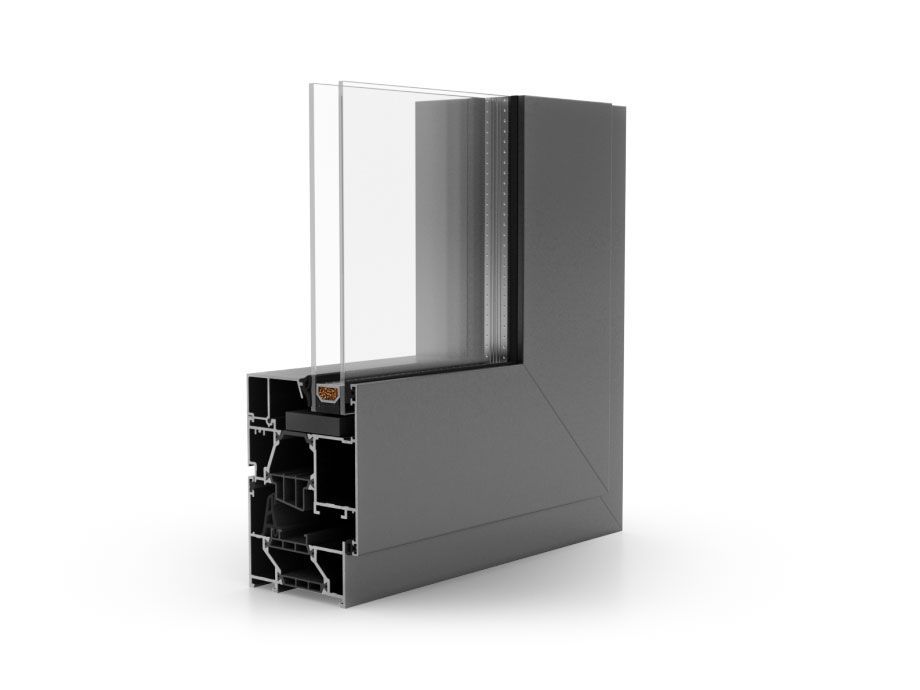

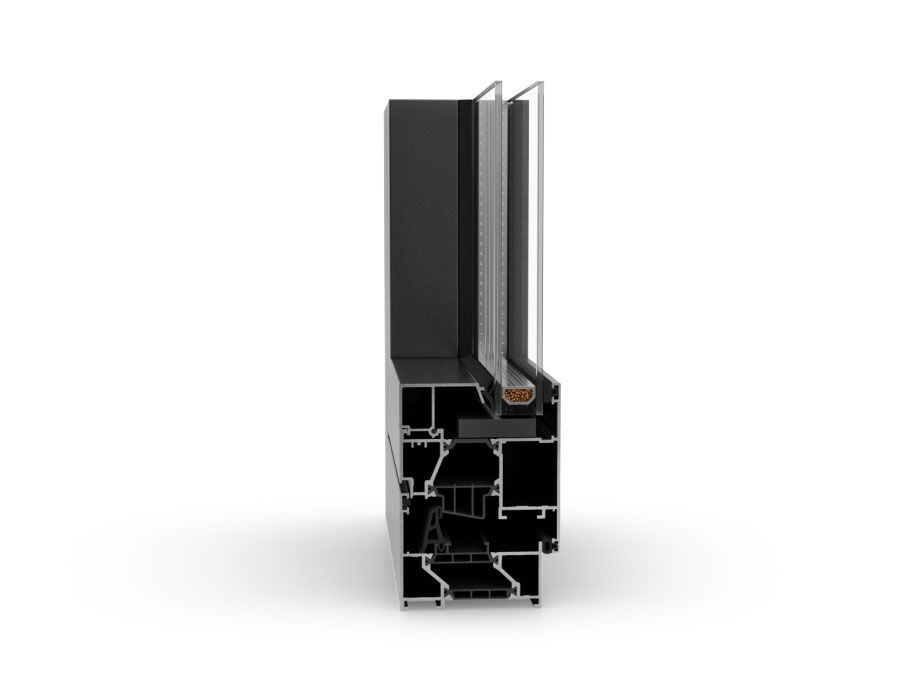

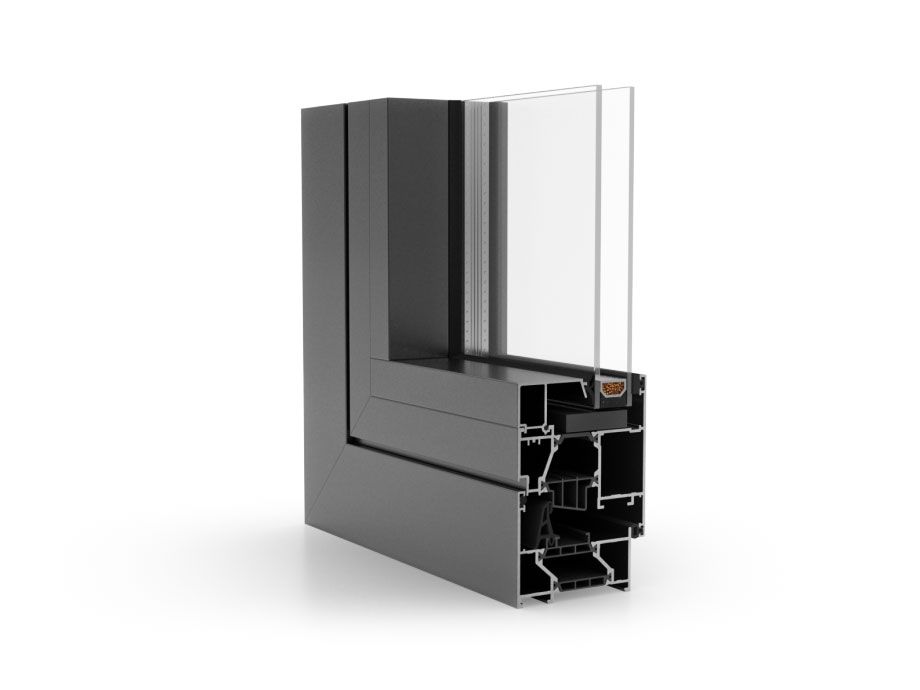

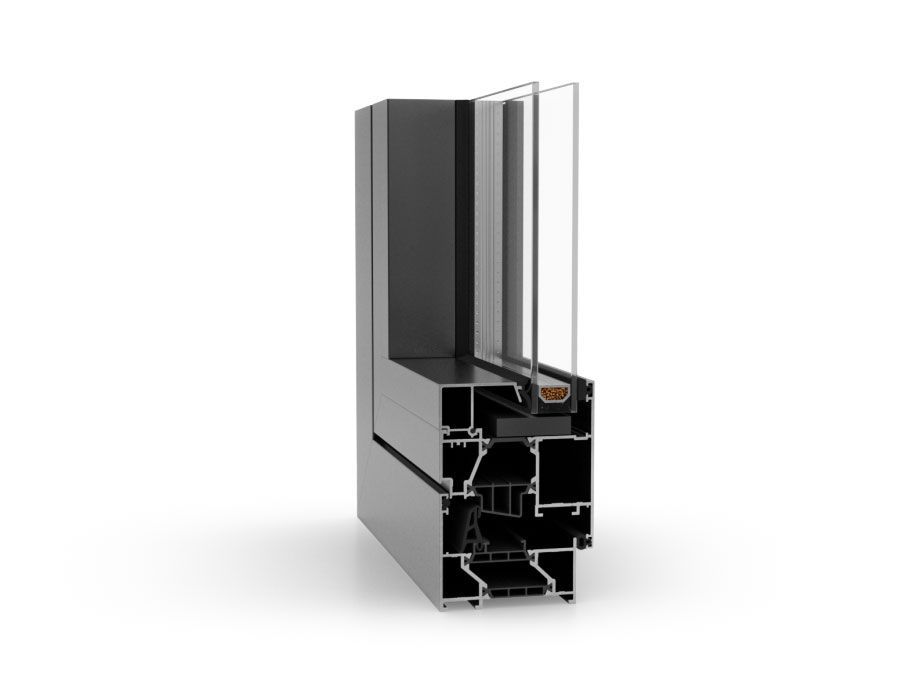

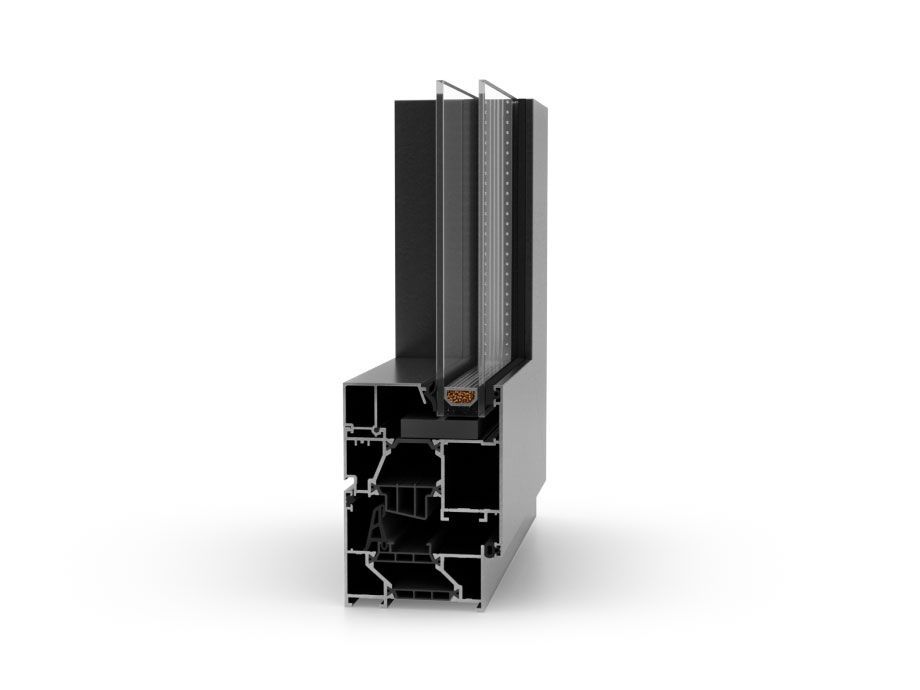

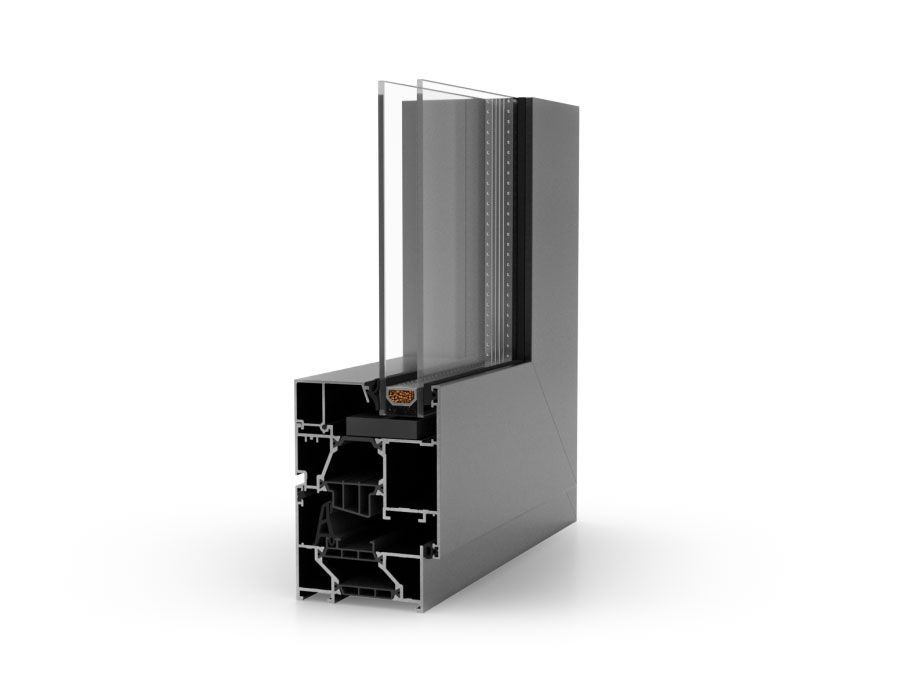

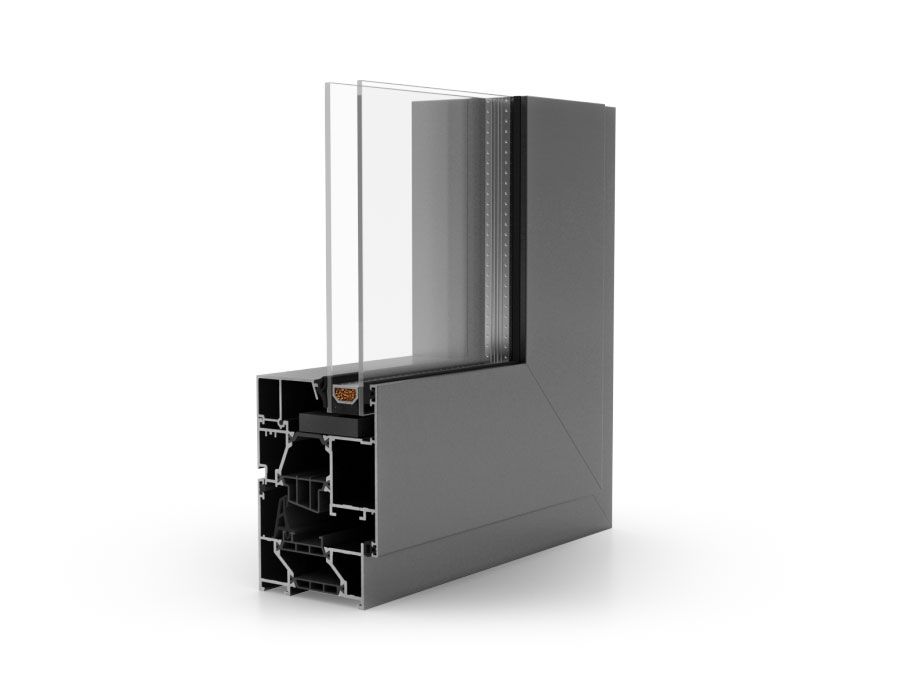

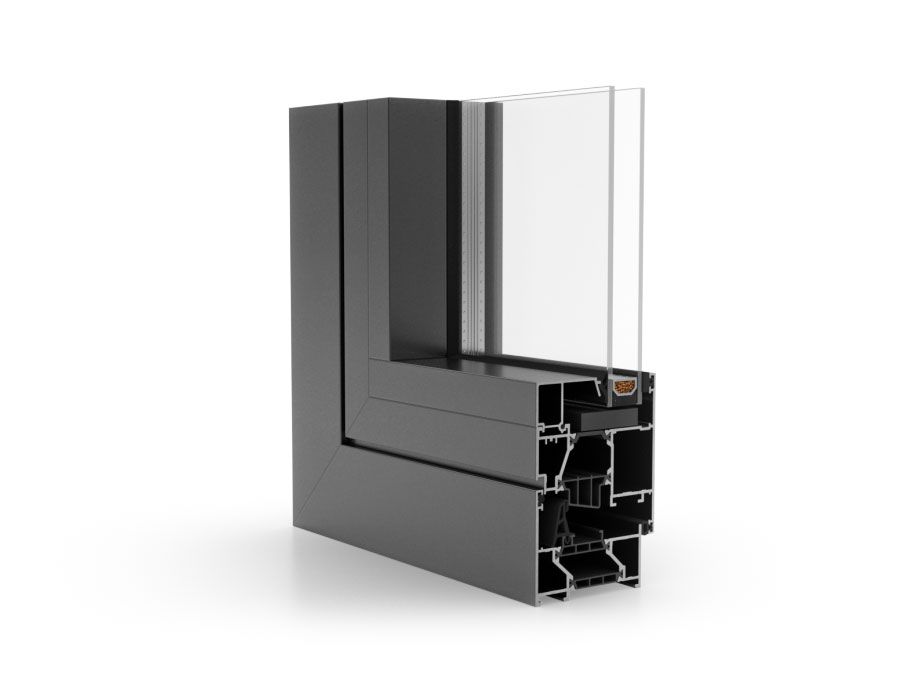

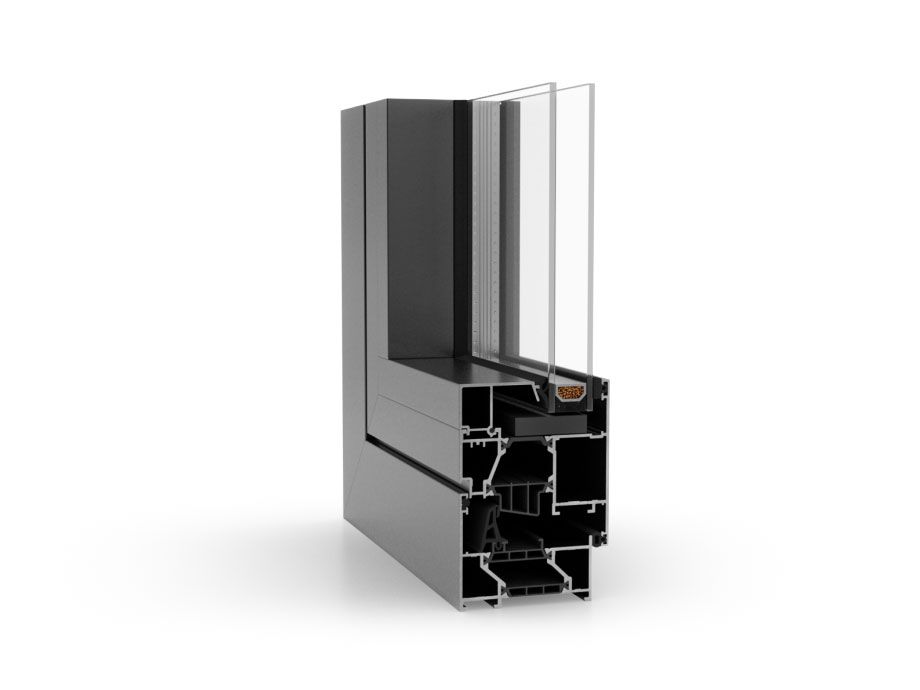

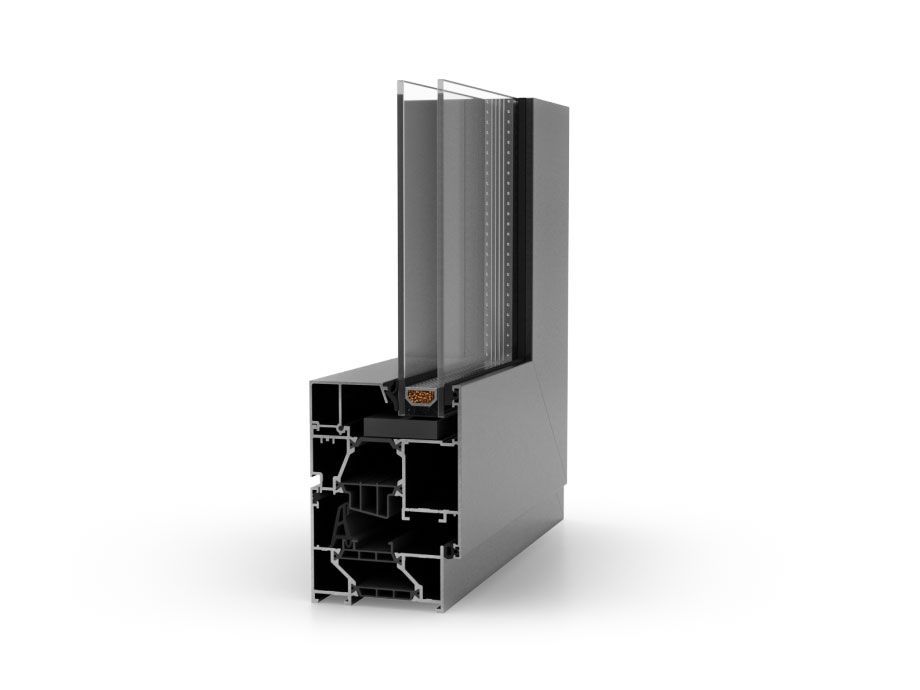

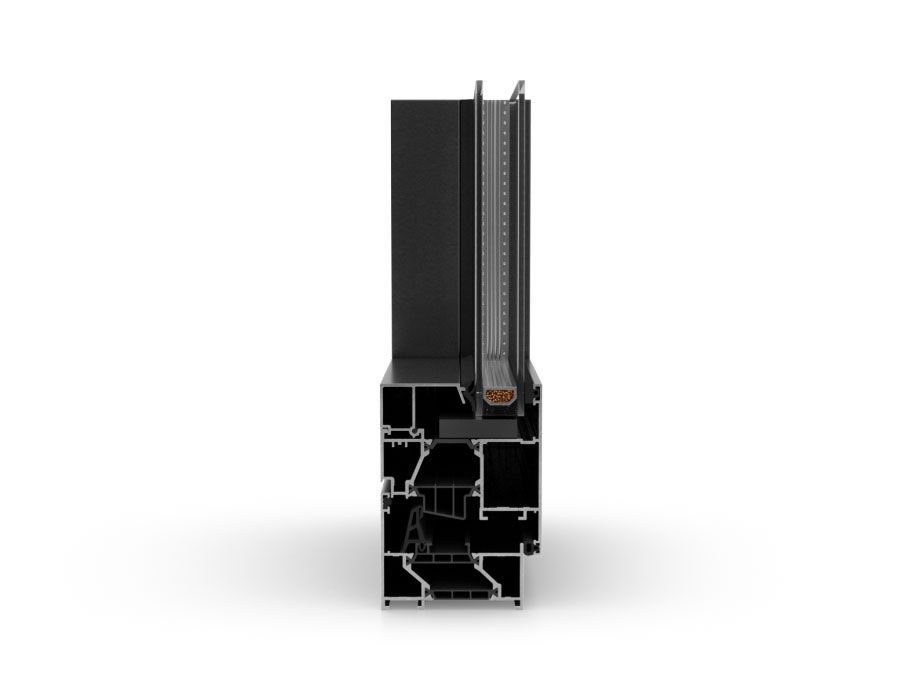

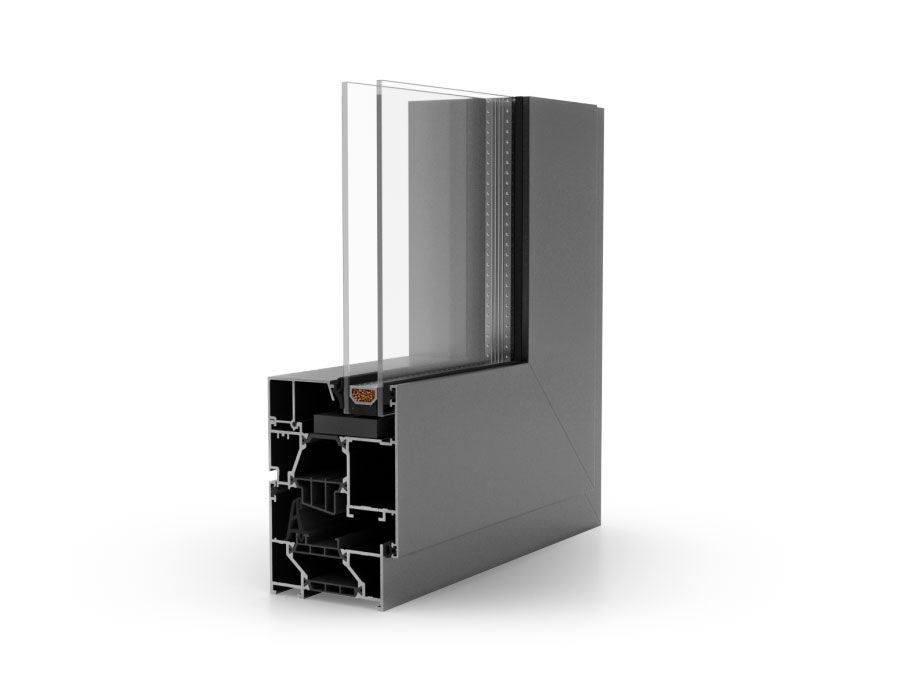

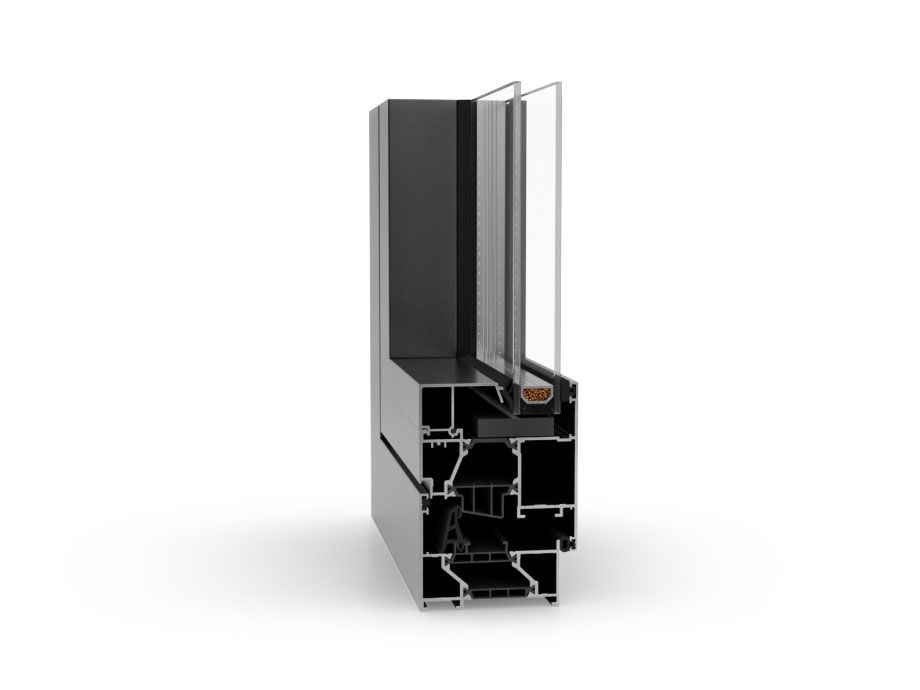

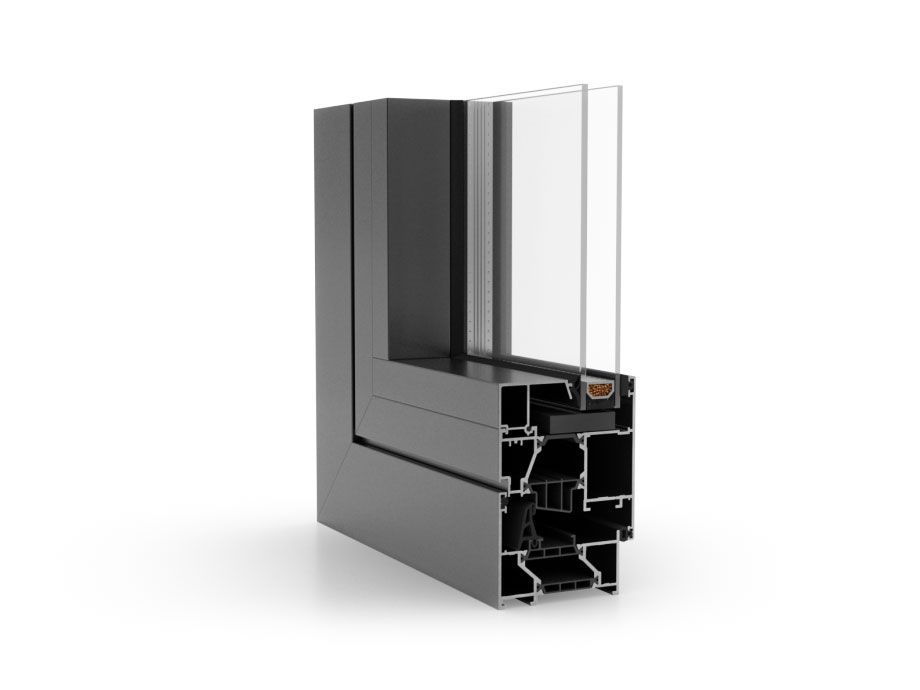

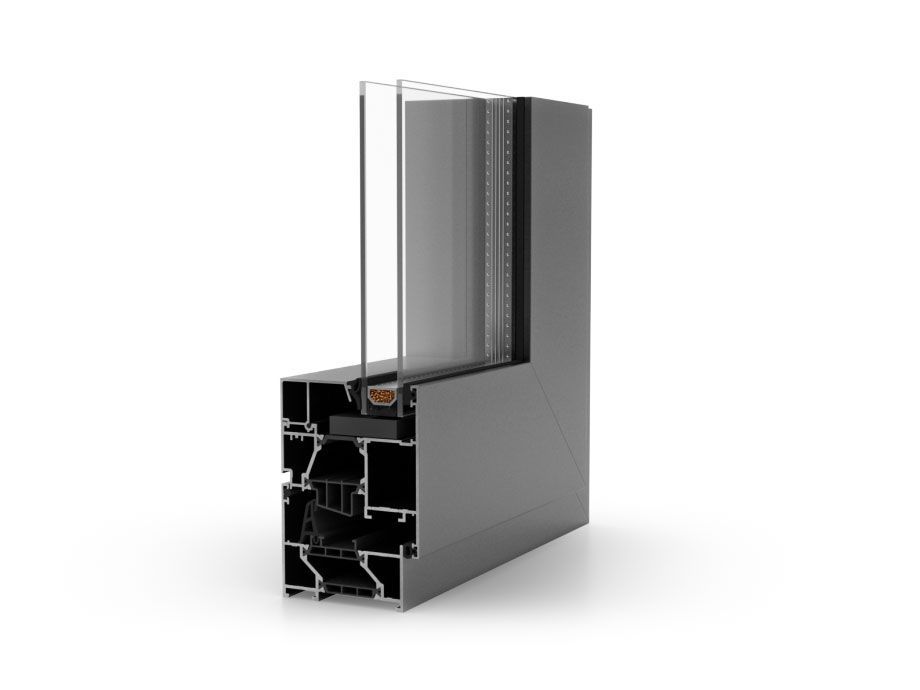

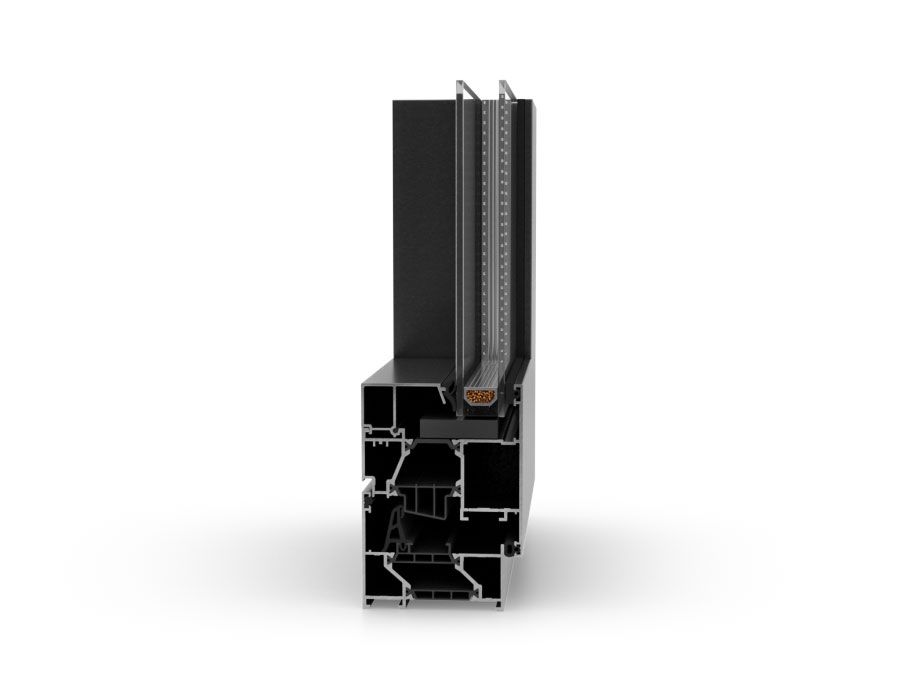

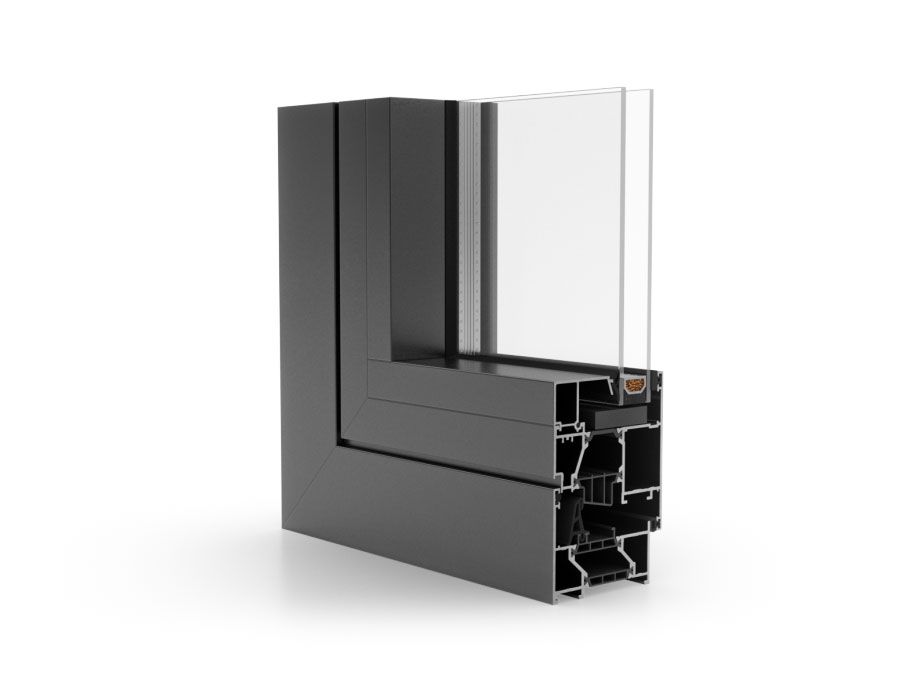

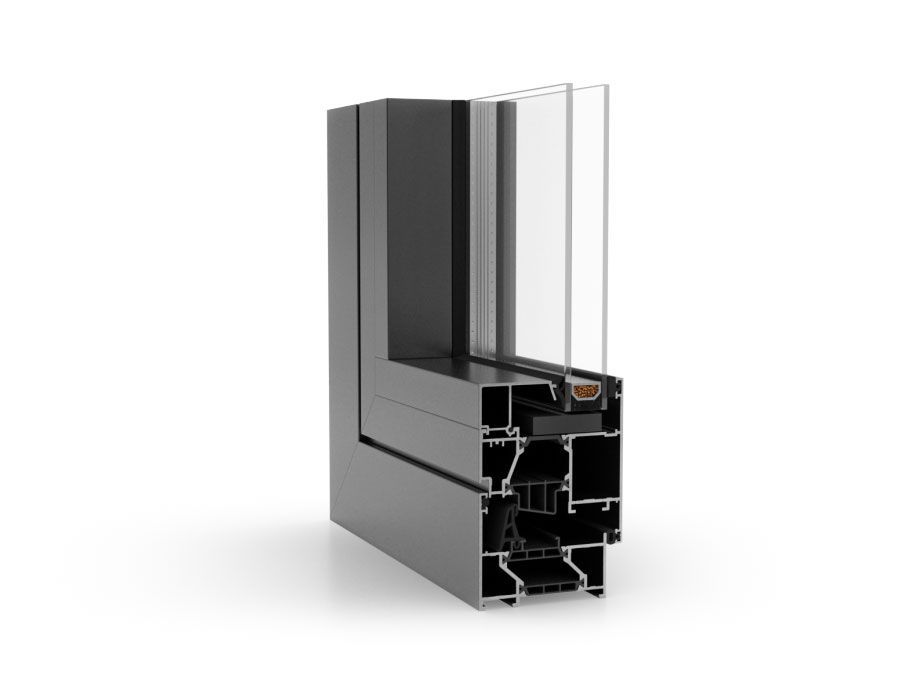

Aluminum Casement Window MB-79N


is an outward-opening window system which features a thermal break and is used to create external architectural elements such as various types of windows, lobbies, shop windows and spatial structures providing excellent thermal and acoustic performance, along with first-class air- and watertightness. It meets every requirement for energy efficient and environmental protection.


Here are some key advantages you can enjoy:


  • Slide title

    Write your caption here
    Button
  • Slide title

    Write your caption here
    Button
  • Slide title

    Write your caption here
    Button
  • Slide title

    Write your caption here
    Button
  • Slide title

    Write your caption here
    Button
  • Slide title

    Write your caption here
    Button
  • Slide title

    Write your caption here
    Button
  • Slide title

    Write your caption here
    Button
  • Slide title

    Write your caption here
    Button
  • Slide title

    Write your caption here
    Button
  • Slide title

    Write your caption here
    Button
  • Slide title

    Write your caption here
    Button
  • Slide title

    Write your caption here
    Button
  • Slide title

    Write your caption here
    Button
  • Slide title

    Write your caption here
    Button
  • Slide title

    Write your caption here
    Button
  • Slide title

    Write your caption here
    Button
  • Slide title

    Write your caption here
    Button
  • Slide title

    Write your caption here
    Button
  • Installation depth 70 mm.

  • Maximum glazing thickness: 54 mm.

  • Top Hung – an outward-opening tilting window

  • Side Hung – an outward-opening casement window

  • Scissor fittings.

  • RAL K7 colour palette.

Download free pdf catalogue →

Uw 0.74

Uw for Ug = 0.5
(Aluminum spacer)*

3

Gaskets

3

Chambers

* The above value of Uw is given for a reference window with dimensions of 1230 x 1480 mm.


Aluprof MB-79N Casement is the latest aluminium window system from Aluprof. It represents the pinnacle of affordable, high-performance solutions.


The windows are adapted to the stricter thermal insulation requirements of the European Directive 2010/31/EU, in force since 2021, thanks to which they can be used even in passive buildings. Their excellent kinetics allows for the creation of very narrow openable windows, which, together with their original design, makes them the optimal choice for numerous investments.


The system is available in two versions: Top Hung with outward-opened tilting windows and Side Hung, i.e. outward-opened casement windows. The Nail Fin, a frame available in the system, matches architectural solutions popular on the American market. It is a response to its needs.


Glass Options

Double Glazing

Single-chamber construction of insulated glass package with thermal insulation.

Triple Glazing

Dual-chamber construction of insulated glass package with thermal insulation.

Quadruple Glazing

Tiple-chamber construction of insulated glass package with thermal insulation.


Aluminium colour options

RAL7 Color Chart Range

Aluminium outer shell are available in a multitude of colour options through a painting technique called Powder Coating, which provides a long lasting attractive finish.
