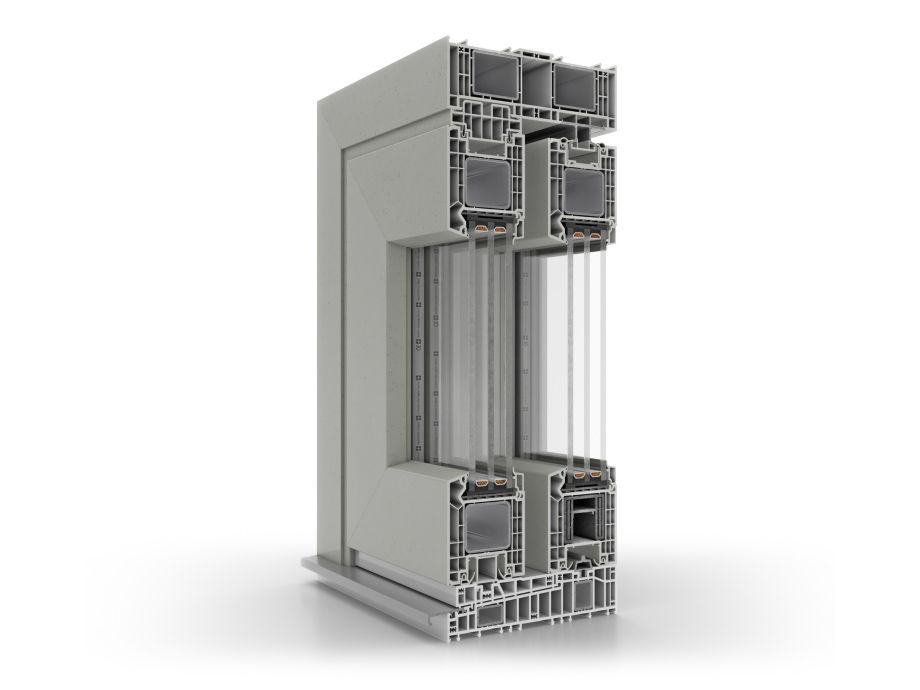

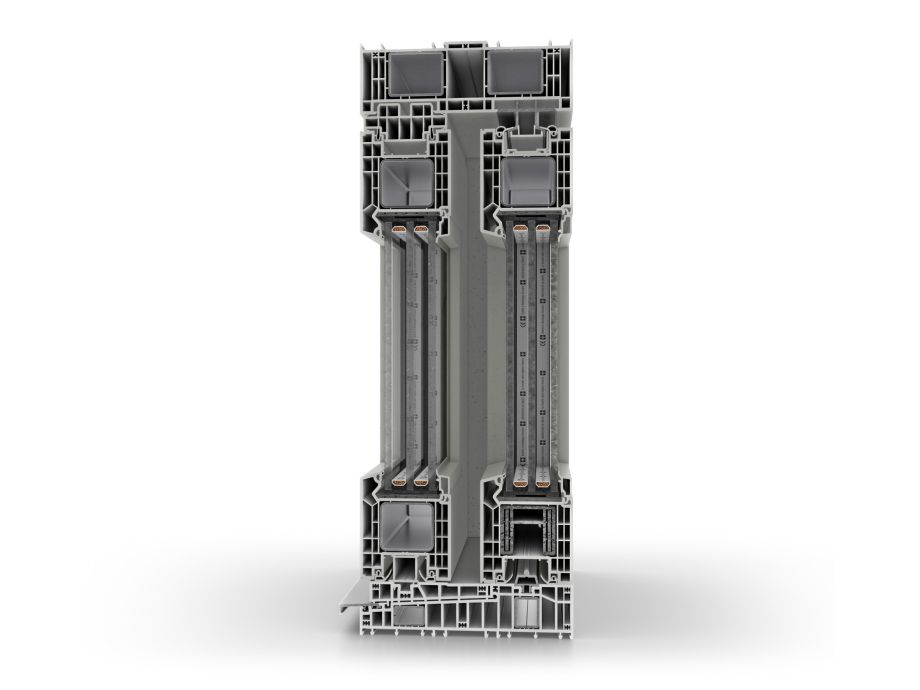

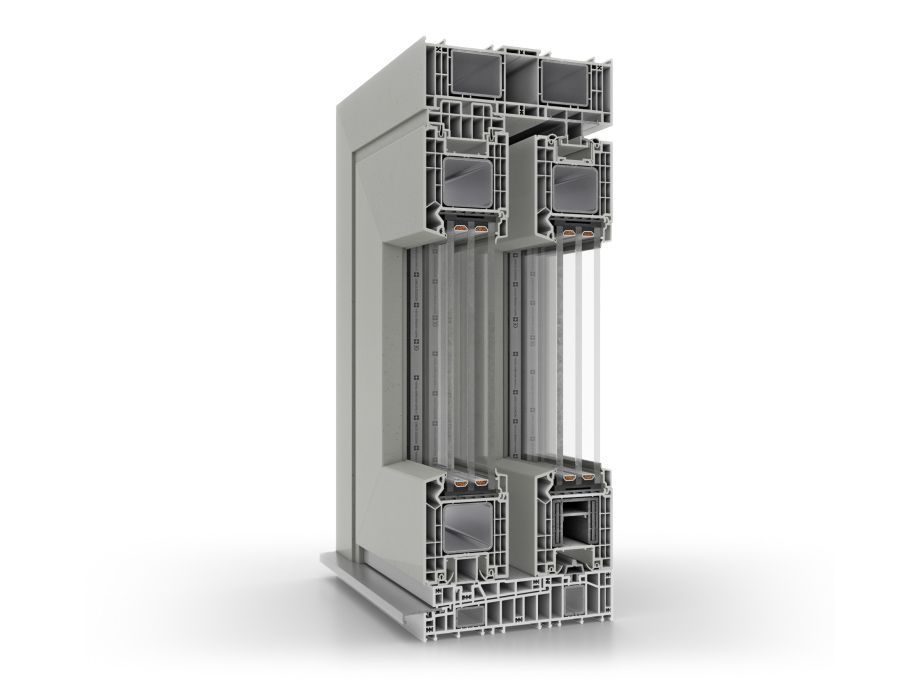

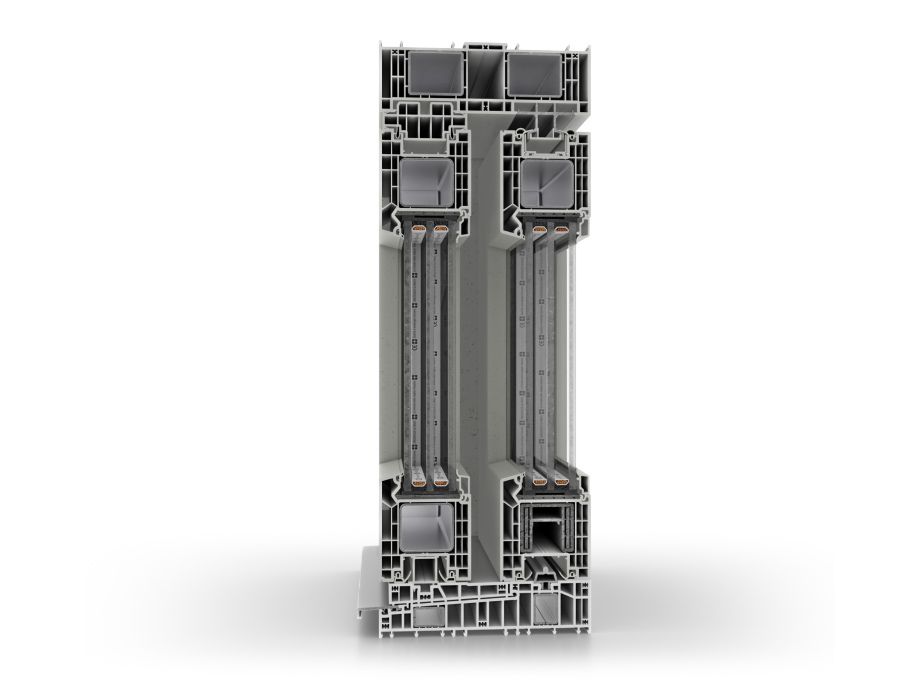

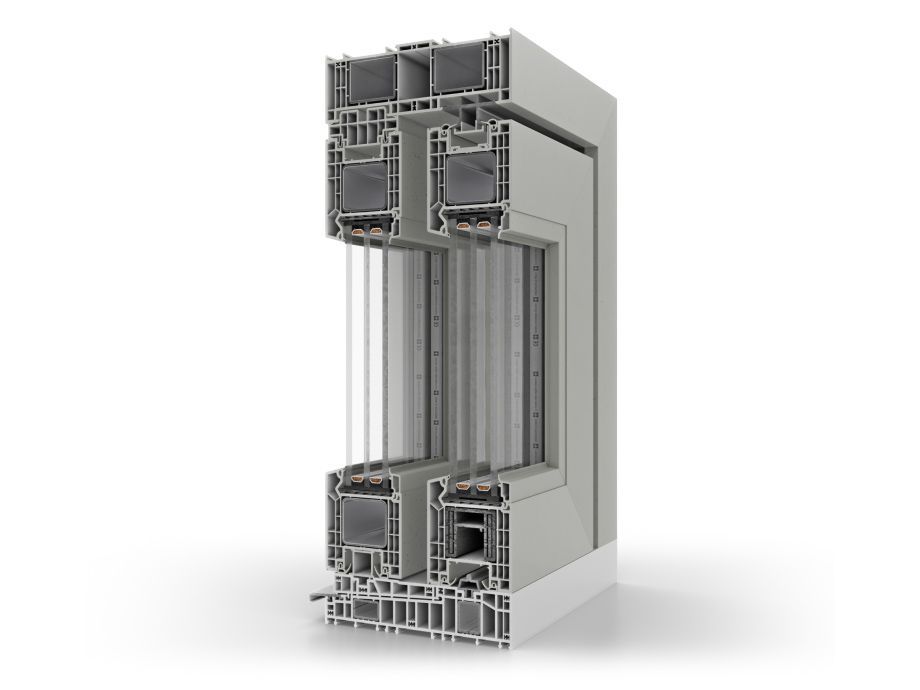

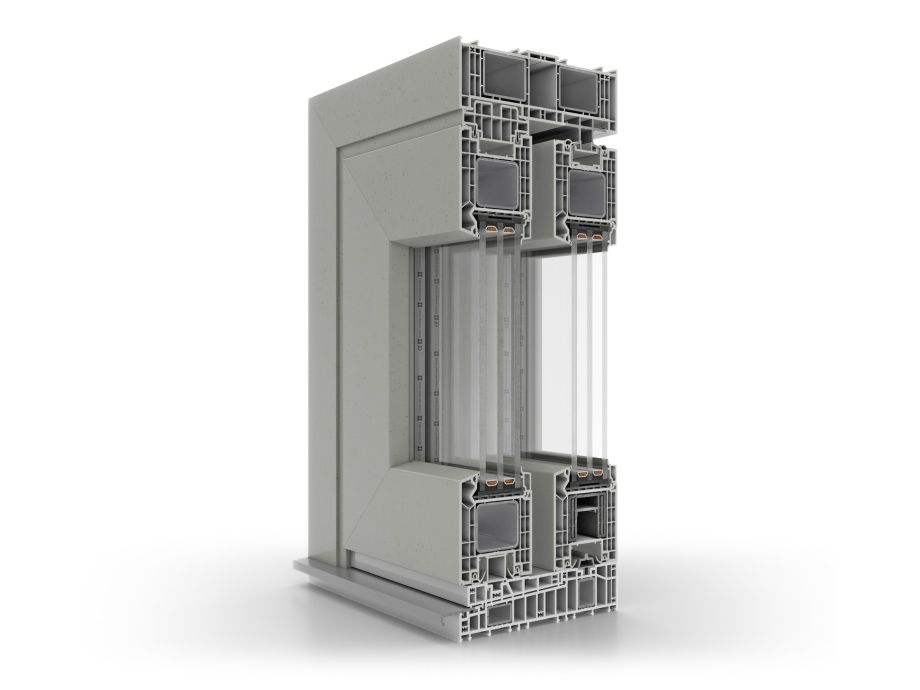

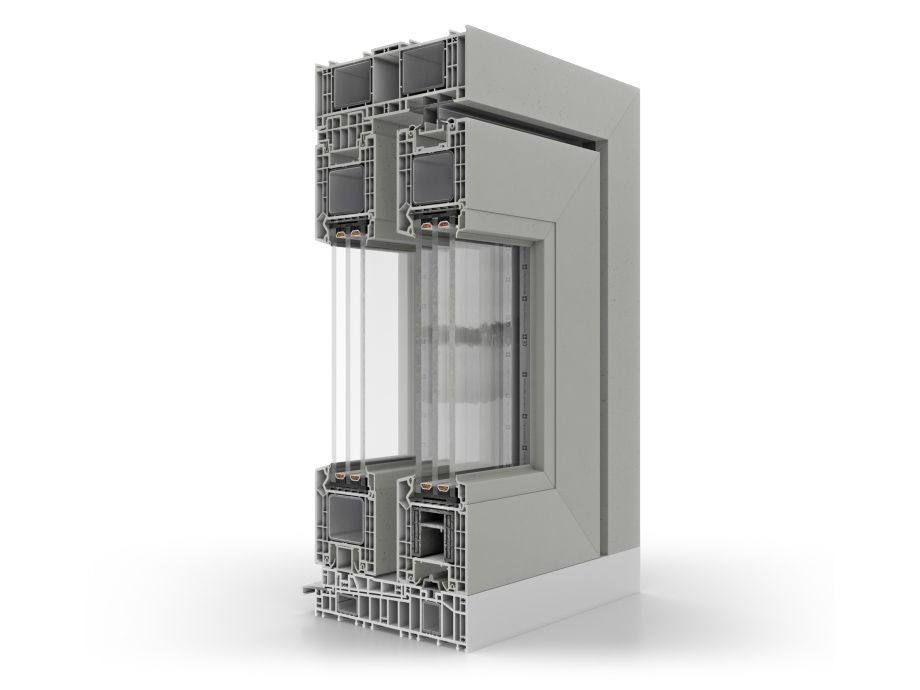

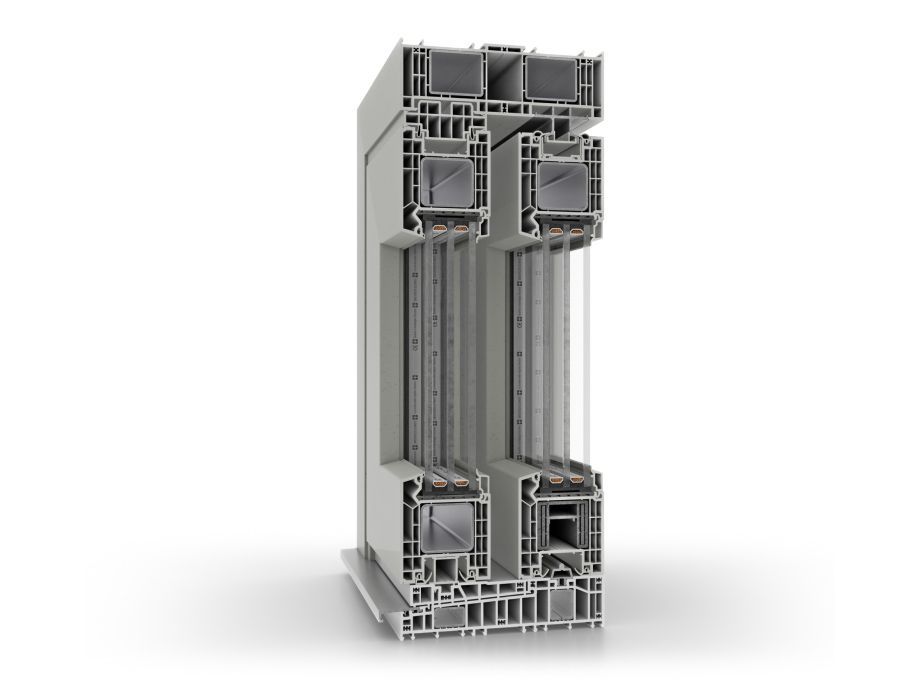

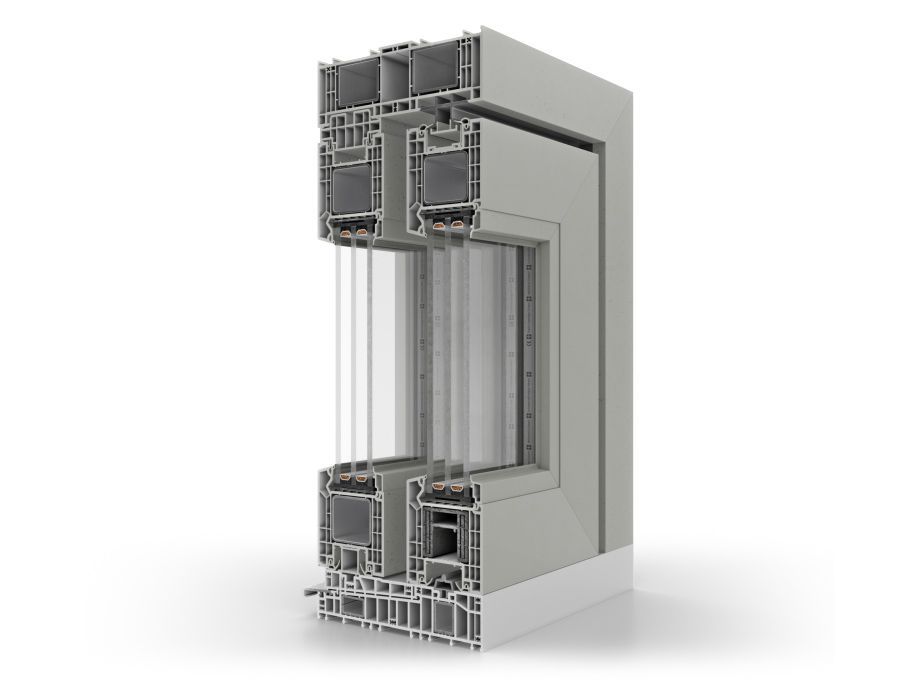

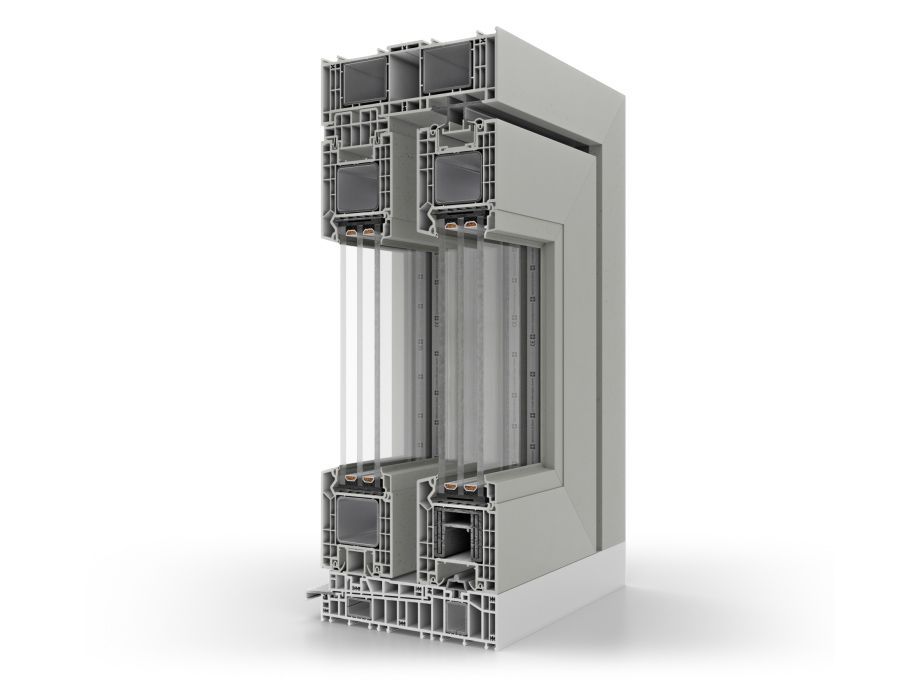

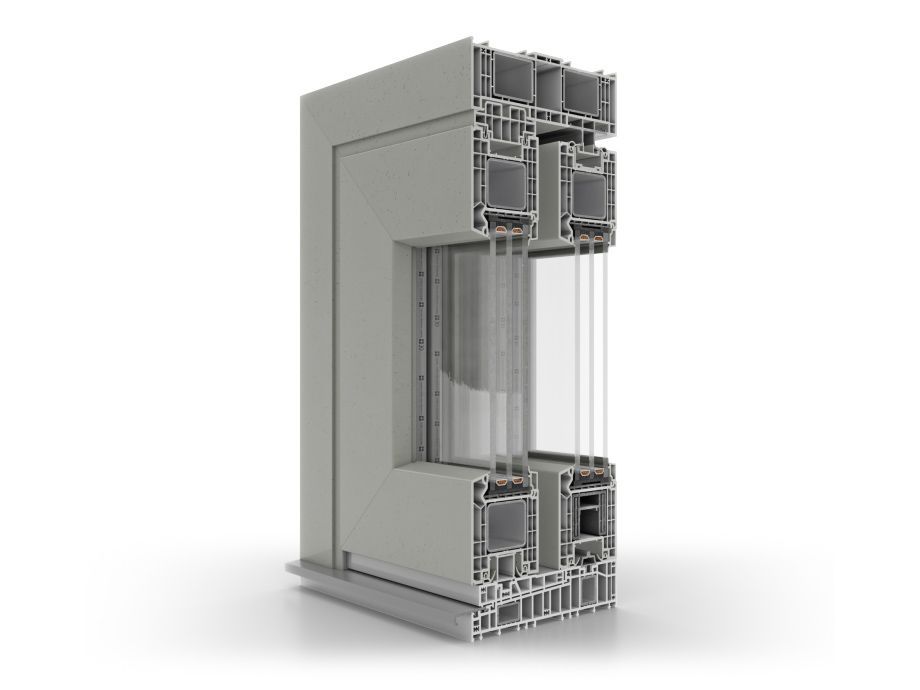

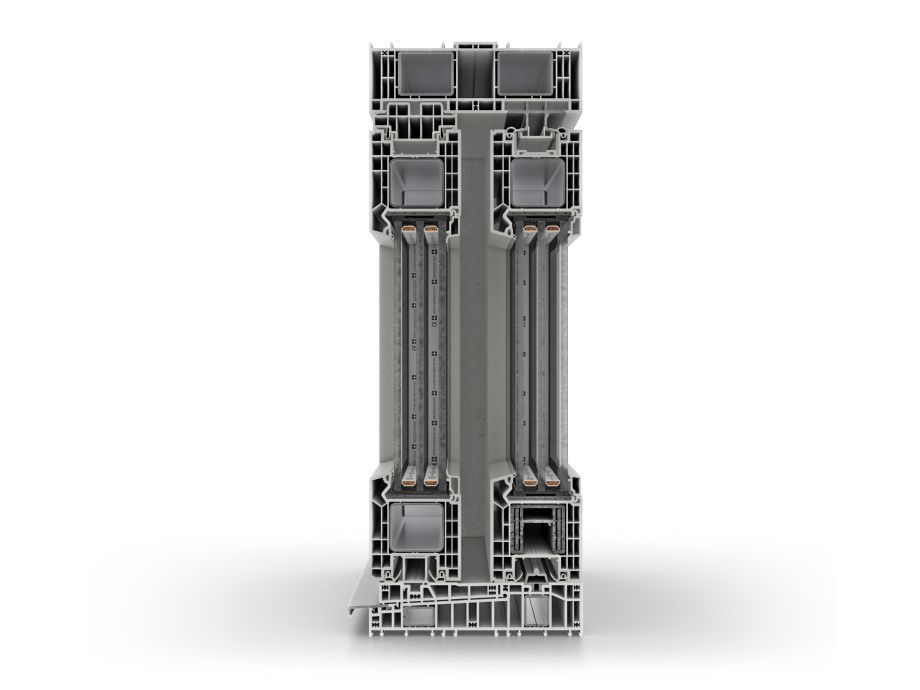

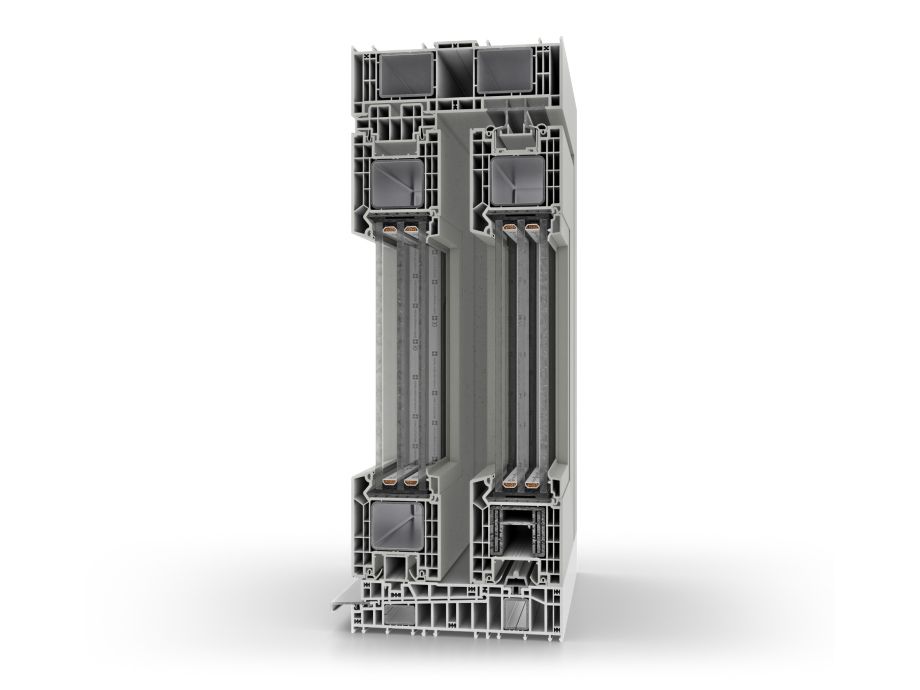

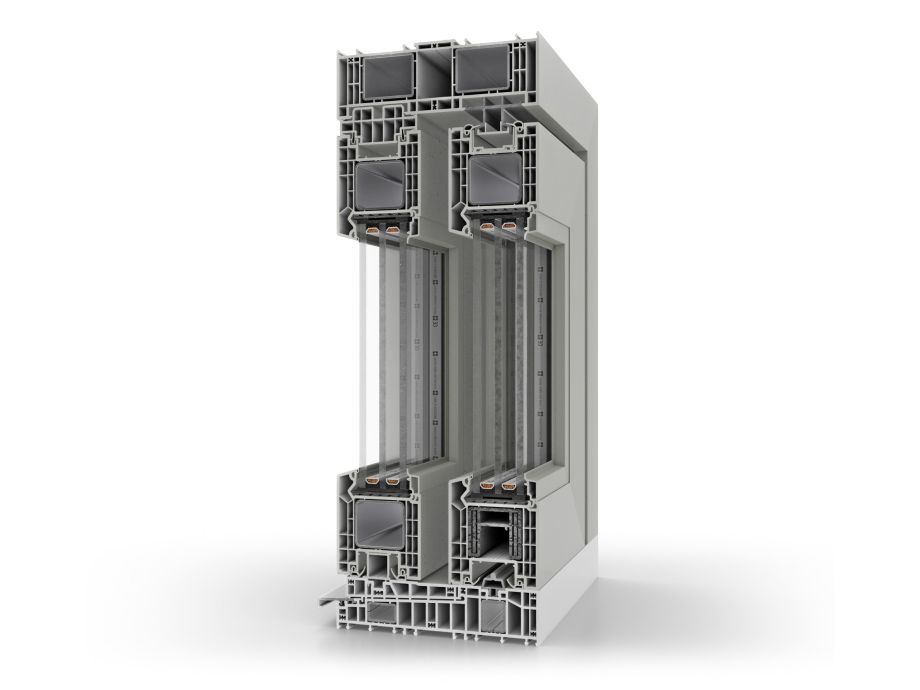

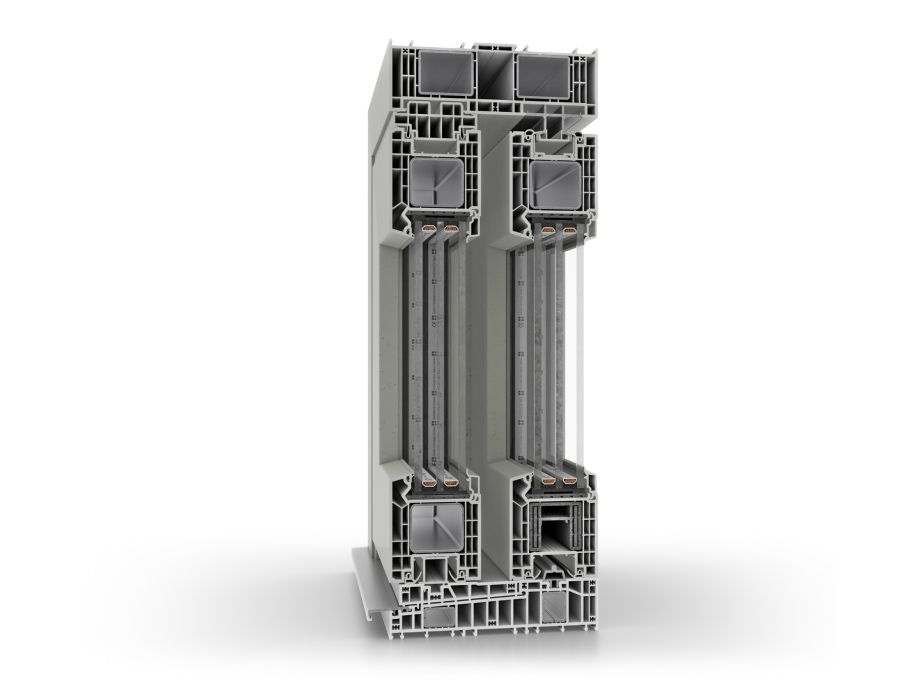

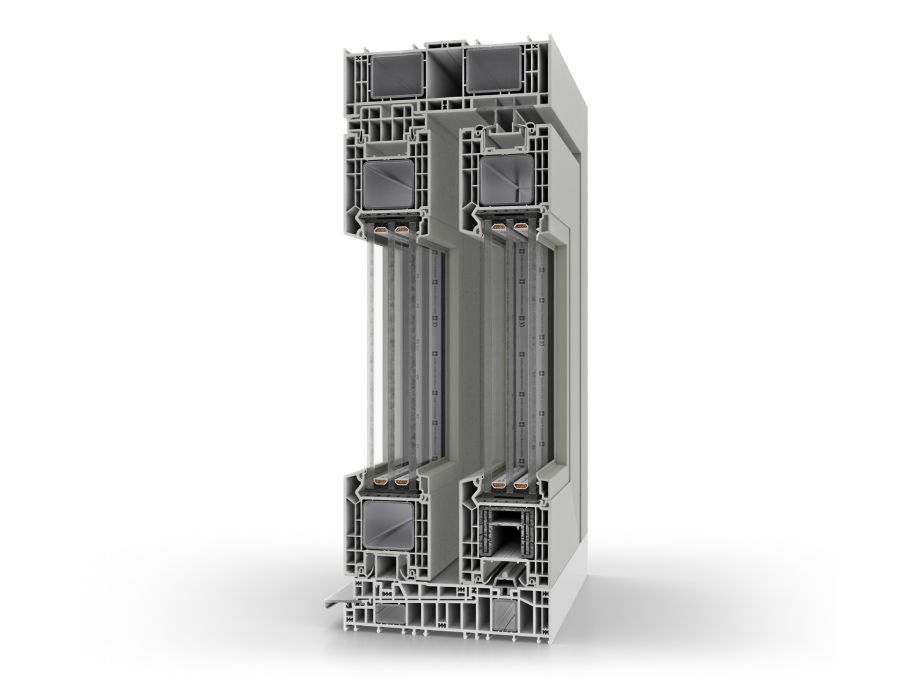

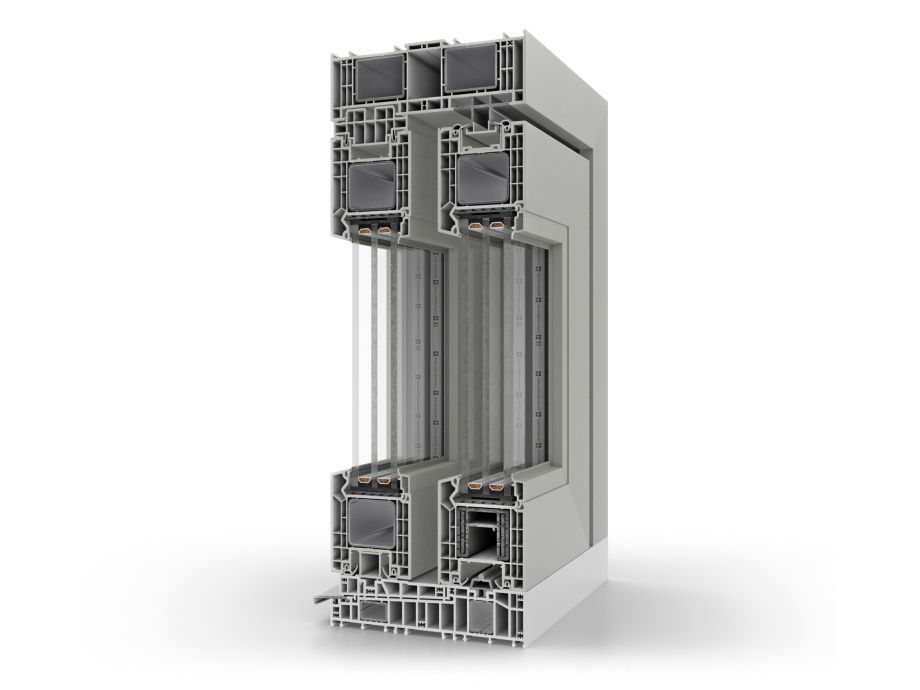

uPVC LIFT AND SLIDE DOOR GRETA
- installation depth 194 mm
- glazing up to 52 mm
- low threshold available
- maximum construction size 6400 x 2700 mm
- very good statics
- available schemes: A, C, D, K
- profile color of architectural concrete
Uw 0.78
Uw for Ug = 0.5
2+2
Gaskets
5
Chambers
1-2
Guide Rail
The Greta HST lift-and-slide system is a premium solution designed for demanding customers who additionally pay attention to the principles of sustainable development. Its profiles are made of 100% recycled plastic, which, together with the very good thermal parameters of the HST solution, means effective reduction of the carbon footprint. Spaces equipped with Greta HST are characterized by excellent functionality thanks to the possibility of using the so-called zero threshold, almost flush with the floor.
Why it is worth recommending the Greta PVC sliding system:
it is a new, ecological proposal, based on proven solutions that have been functioning on the market for many years
it offers an absolutely unique aesthetics of profiles resembling concrete in appearance, which perfectly fits into the standards of modern construction and is pleasant to the touch
as an HST solution, it offers very good performance parameters, especially in terms of thermal insulation and tightness compared to other sliding systems
Choose the Greta PVC sliding system if:
plan investments taking into account sustainable development, and put products with the lowest possible carbon footprint in the first place
expect the possibility of eliminating barriers using a low threshold, which is almost flush with the floor and helps people with reduced mobility to move around
are looking for solutions that allow for the creation of large single movable and fixed elements, letting in a lot of natural light
Get to know the Greta PVC sliding system better:
thermal transmittance Uw from 0.78 W/m²K
frame heat transfer coefficient Uf = 1.3 W/m²K
lift and slide system
maximum construction size 6400 x 2700 mm
reinforcement in the form of closed steel
possibility of locking the door in any position for controlled ventilation of rooms
watertightness: class 2A (for a 1-sash window)
air permeability: class 2
resistance to wind load: class C4
porous structure of profiles that can be felt to the touch
GLASS OPTIONS
Double Glazing
Single-chamber construction of insulated glass package with thermal insulation and thermal transmittance in a range of:
1,0 ≤ Ug ≤ 2,9 W/(m2 * K)
Triple Glazing
Dual-chamber construction of insulated glass package with thermal insulation and thermal transmittance in a range of:
0,4 ≤ Ug ≤ 0,9 W/(m2 * K)
Quadruple Glazing
Triple-chamber construction of insulated glass package with thermal insulation and thermal transmittance in a range of:
Ug = 0.7-0.3 W/(m2 * K)
PROFILE IS AVAILABLE IN ONE COLOR
architectural concrete
