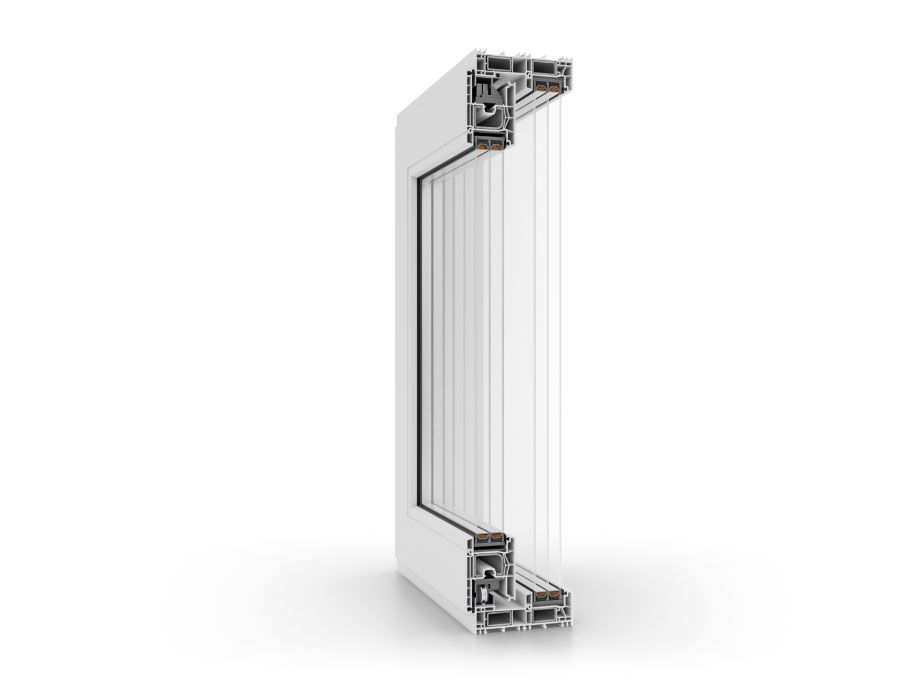

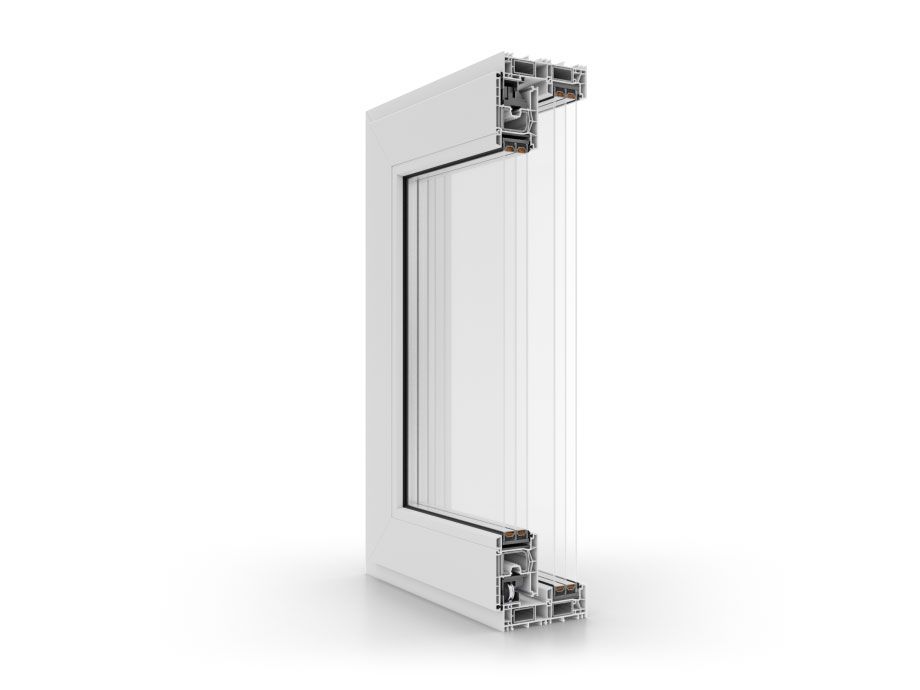

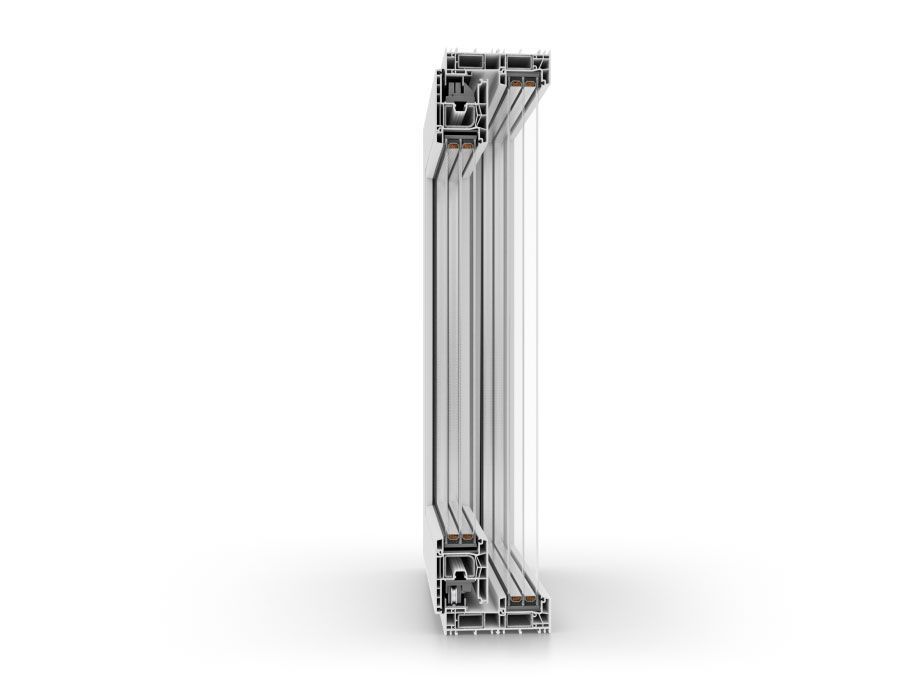

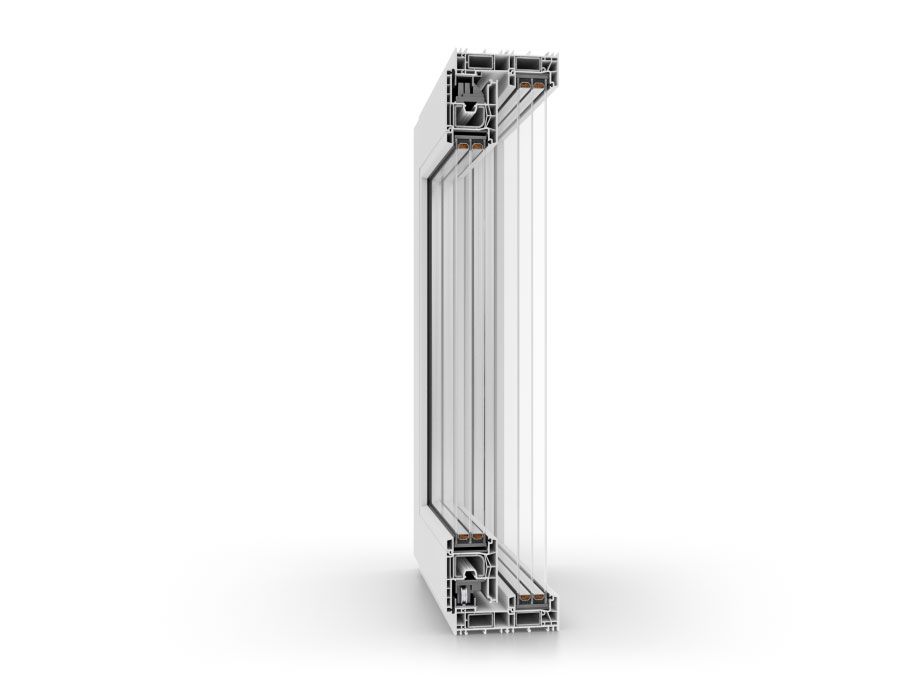

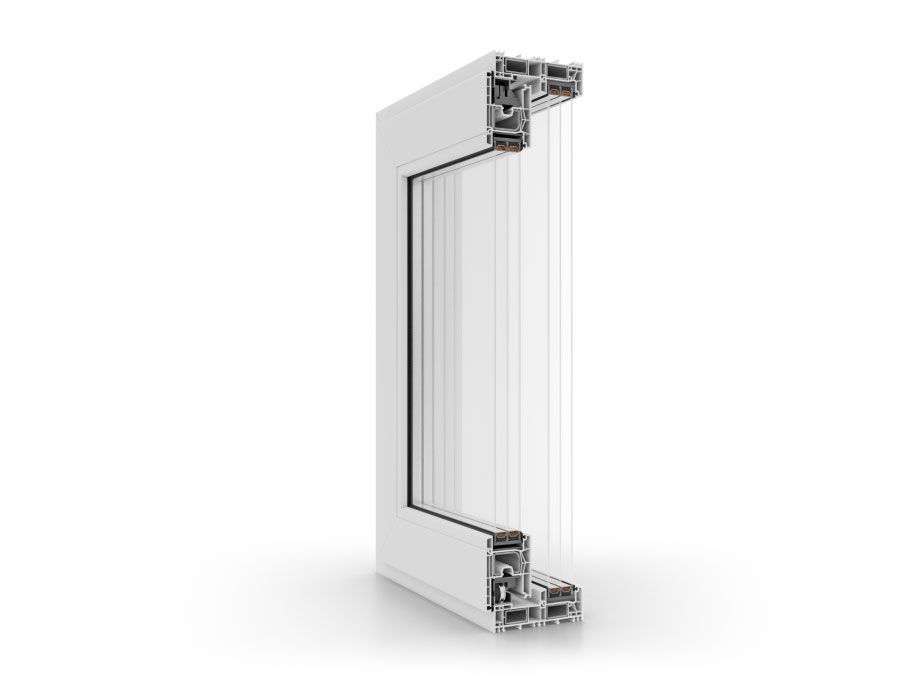

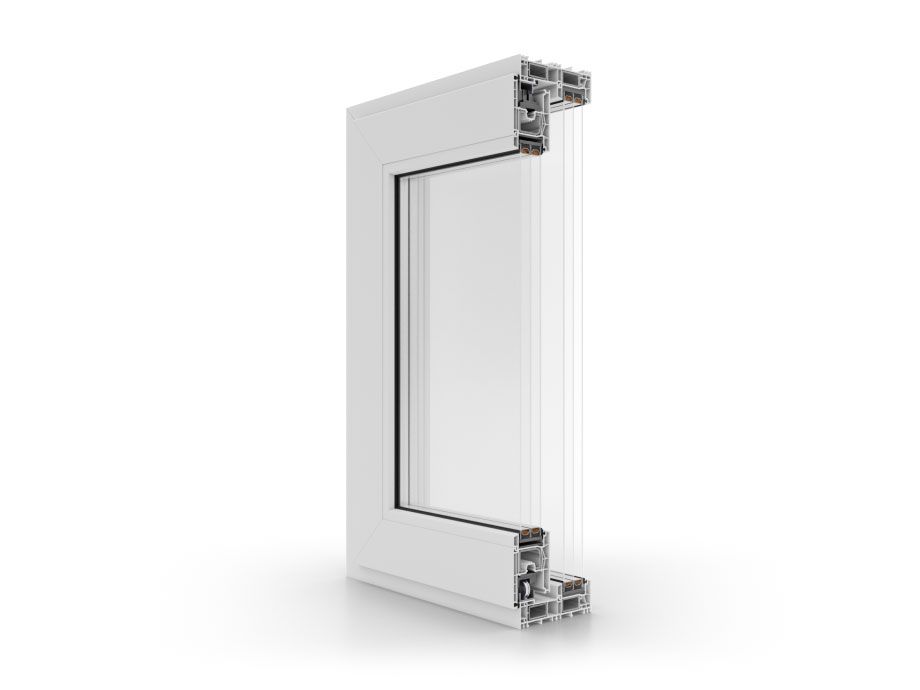

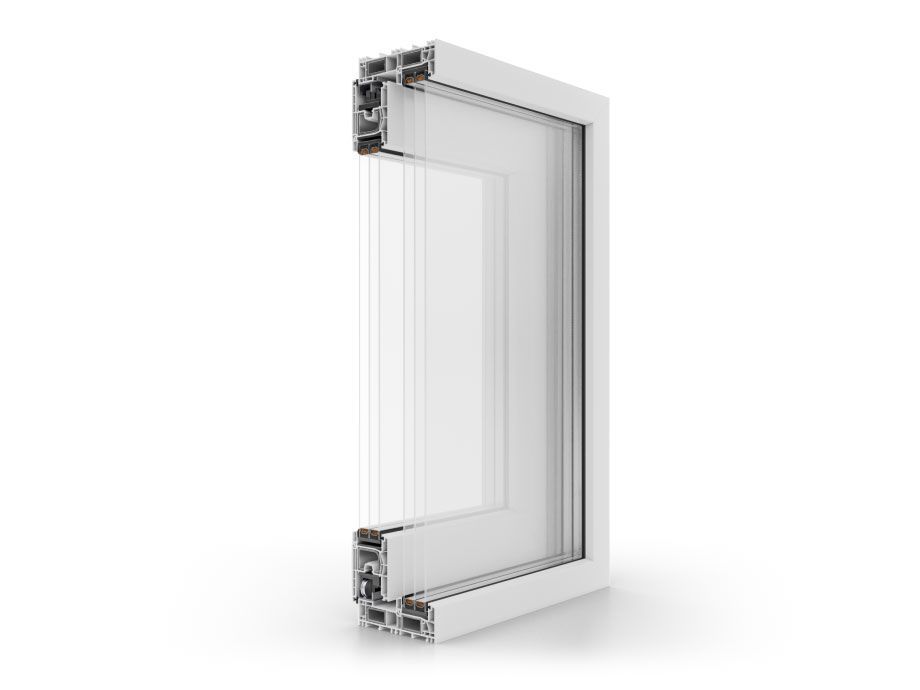

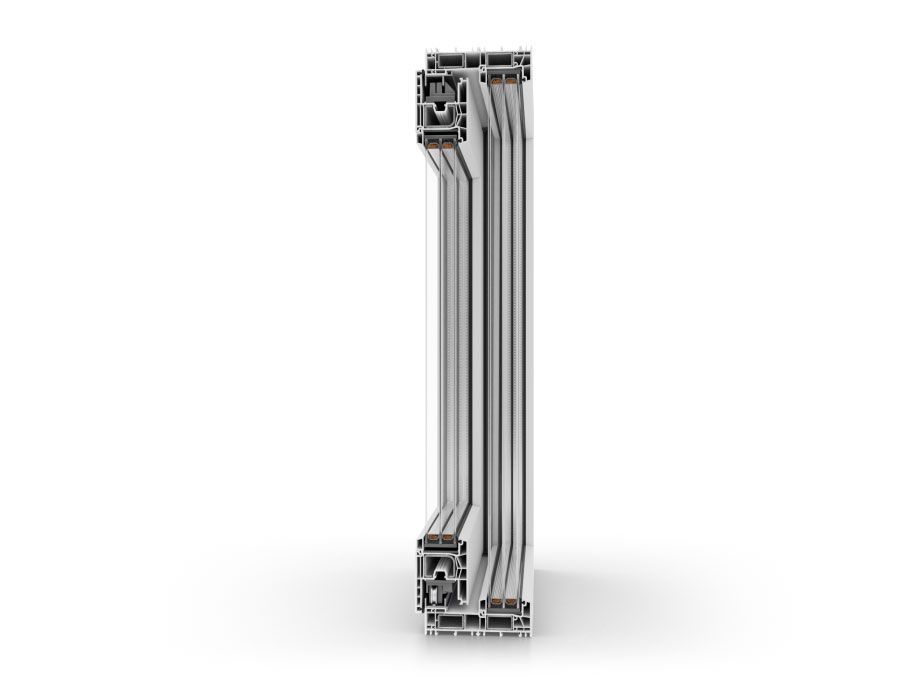

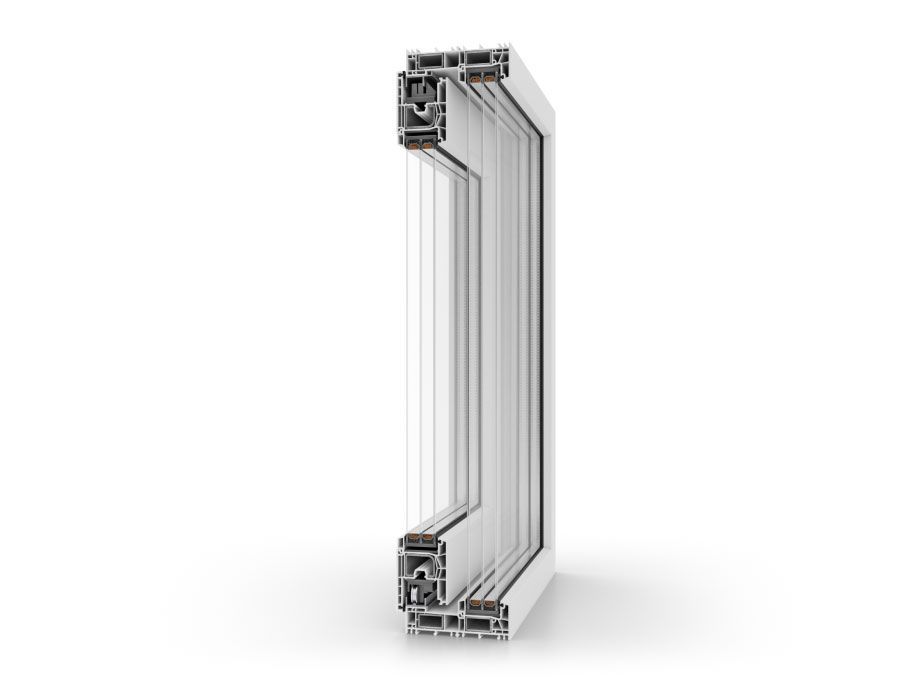

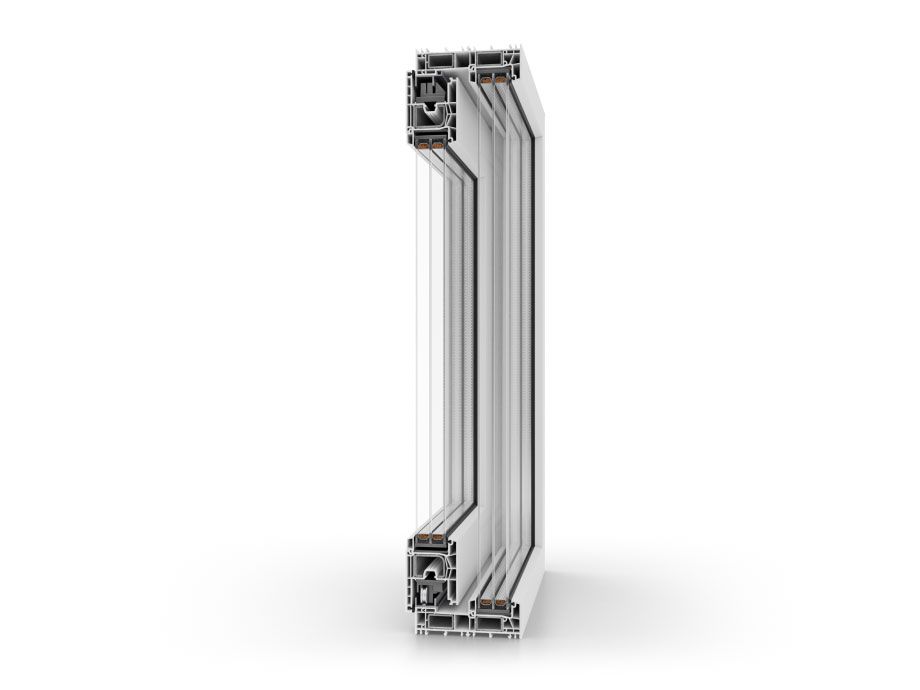

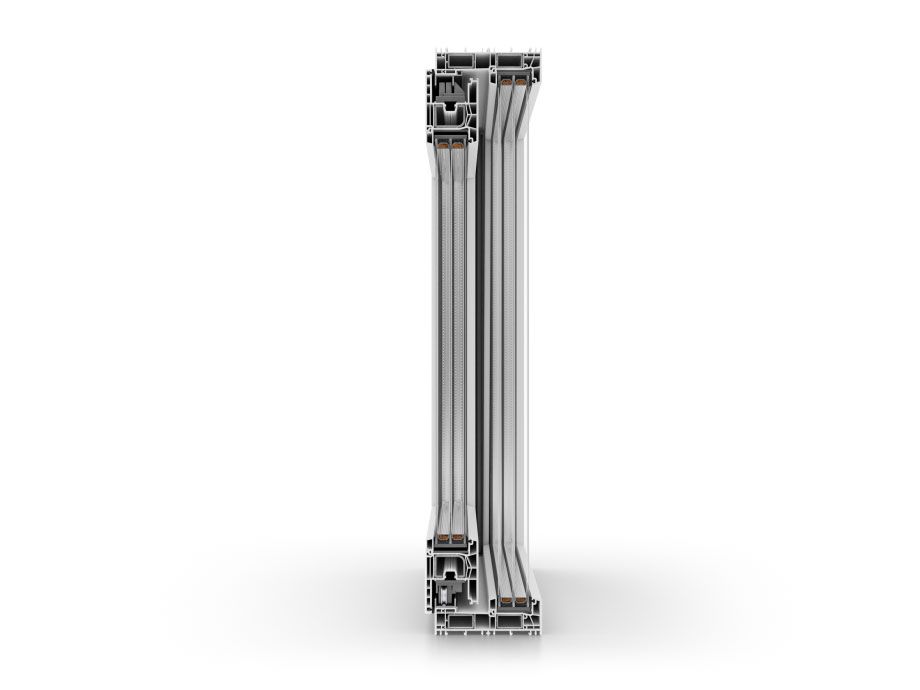

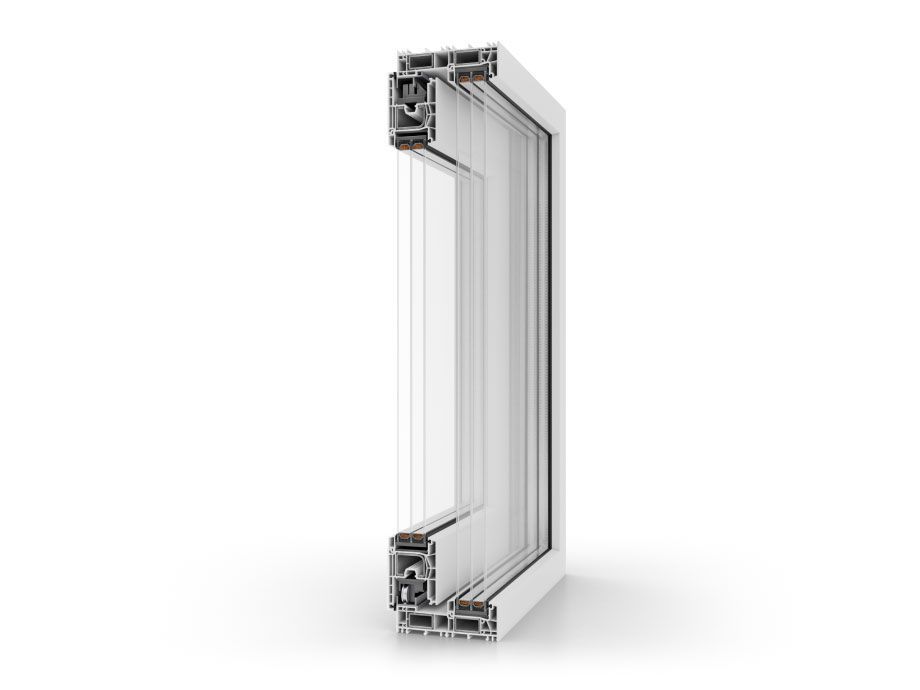

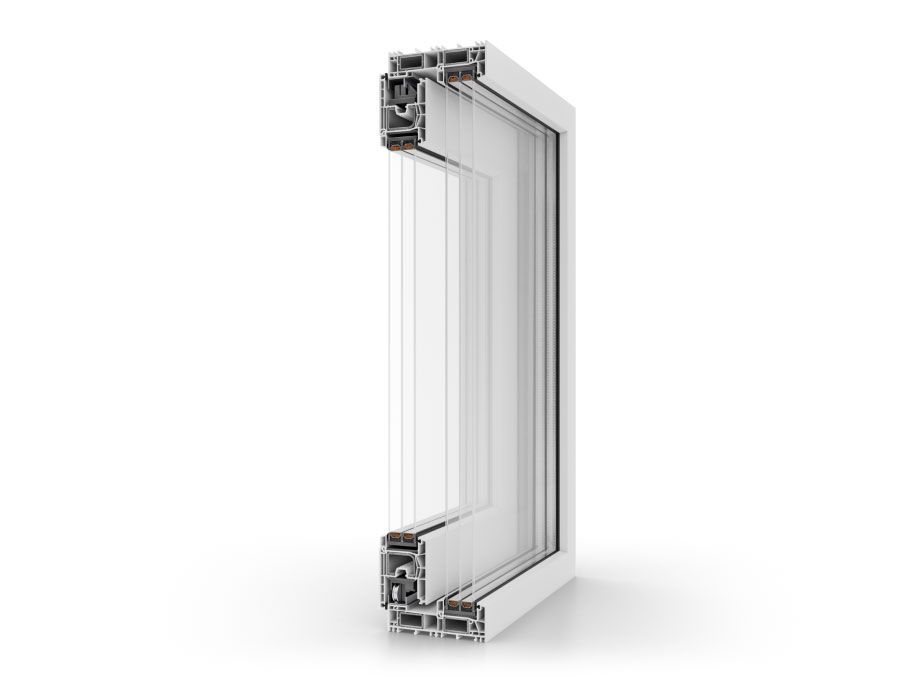

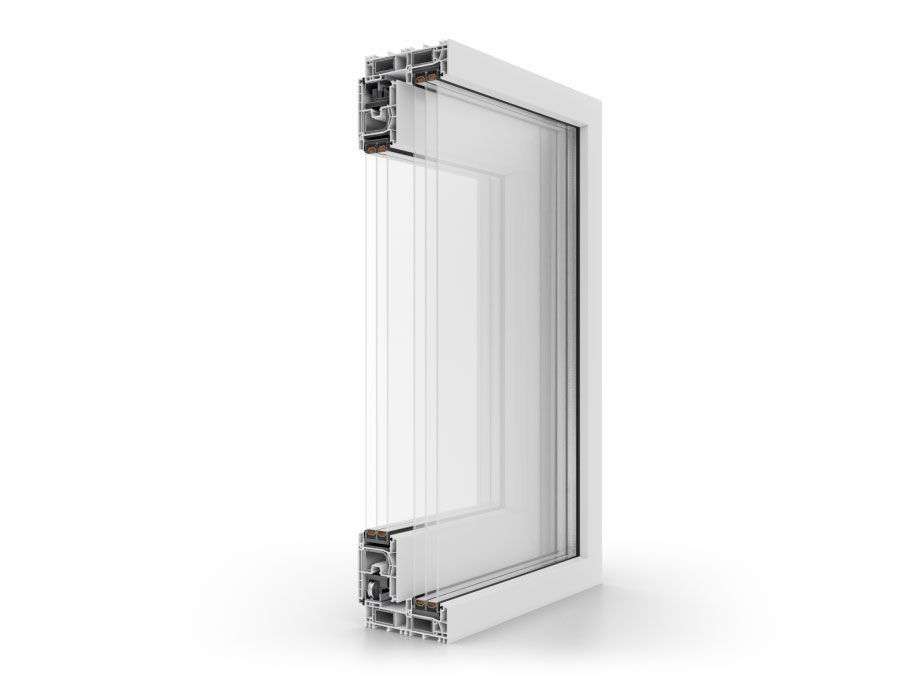

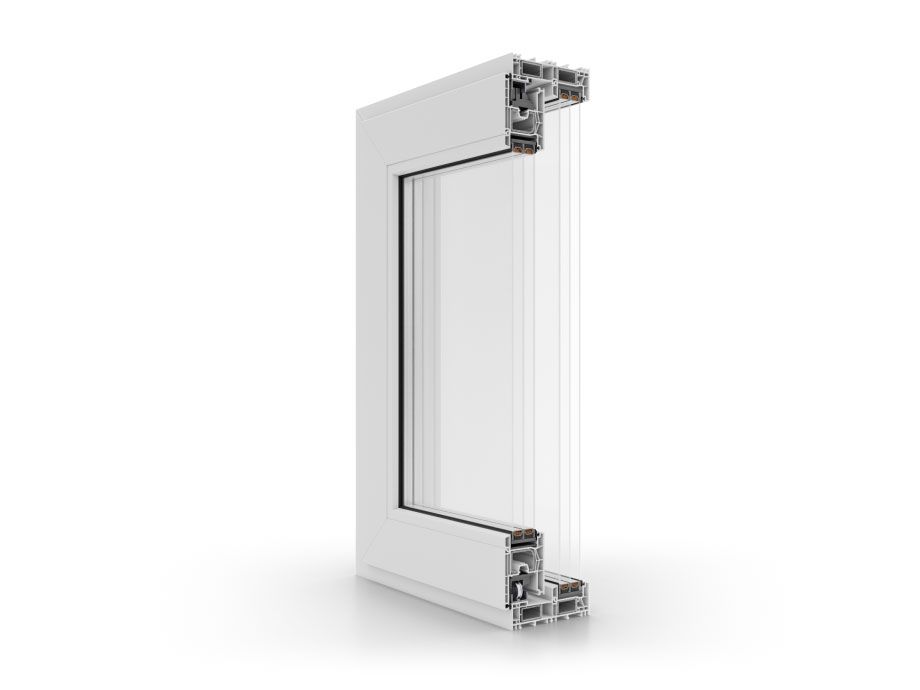

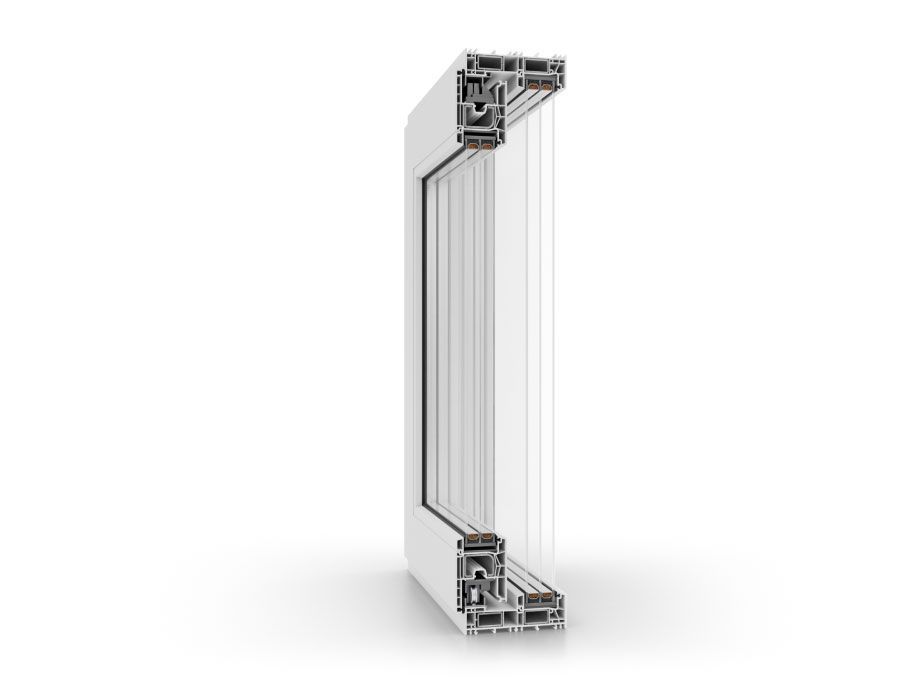

uPVC SLIDING DOOR EVOLUTION DRIVE PLUS
- installation depth 152 mm
- glazing up to 49 mm
- soft close
- maximum dimensions of the fix sash
(HxW) – 2480 x 4000 mm
- maximum dimensions of the movable leaf
(HxW) – 2400 x 2000 mm
- maximum movable leaf weight – 170 kg
Uw 0.79
Uw for Ug = 0.5
3
Gaskets
5
Chambers
1
Guide Rail
Salamander evolution Drive Plus is a PVC sliding system, made to maintain all the key features of sliding door, while maintaining a similar level of thermal insulation, comparable to windows and doors.
Allows to set the handle in the closed position at any opend position. In this way, you can improve ventilation by creating a small gap or even create a passage for pets.
uPVC Sliding Door EvolutionDrive Plus is a system that is also perfect for seniors and people with disabilities. Thanks to convenient operation and lower weight, it does not require much force.
The use of special fittings increases the pressure of the sash against the frame around the entire perimeter, thus increasing the durability and air tightness of the structure. A system of three gaskets and full, double sealing around the perimeter ensure low thermal transmittance of the entire structure. Thanks to these solutions, you are guaranteed energy savings.
GLASS OPTIONS
Double Glazing

Single-chamber construction of insulated glass package with thermal insulation and thermal transmittance in a range of:
1,0 ≤ Ug ≤ 2,9 W/(m2 * K)
Triple Glazing

Dual-chamber construction of insulated glass package with thermal insulation and thermal transmittance in a range of:
0,4 ≤ Ug ≤ 0,9 W/(m2 * K)
Quadruple Glazing

Triple-chamber construction of insulated glass package with thermal insulation and thermal transmittance in a range of:
Ug = 0.7-0.3 W/(m2 * K)
FOIL COLOURS

sal-03

sal-08

sal-11

sal-19

sal-21

sal-25

sal-26

sal-27

sal-30

sal-33

sal-37

sal-39

sal-42

sal-43

sal-50

sal-51

sal-52

sal-55

sal-59

sal-69

sal-71

sal-72

sal-73

sal-74

sal-78

sal-84

sal-87

sal-88

sal-90

sal-91

sal-92

sal-95

sal-96

sal-98

sal-107

sal-108

sal-109

sal-110

sal-111

sal-112

sal-113

sal-115

sal-116
